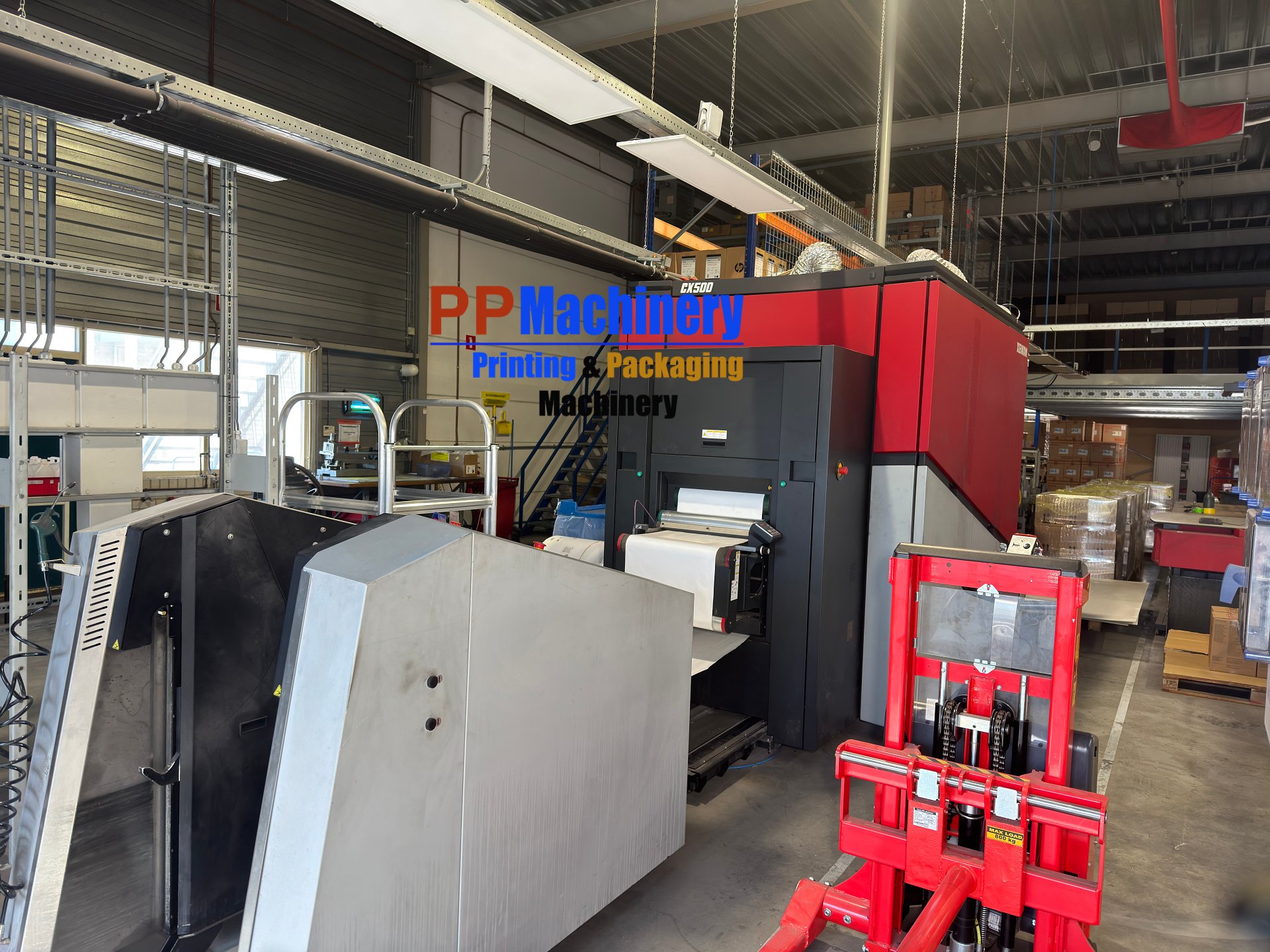

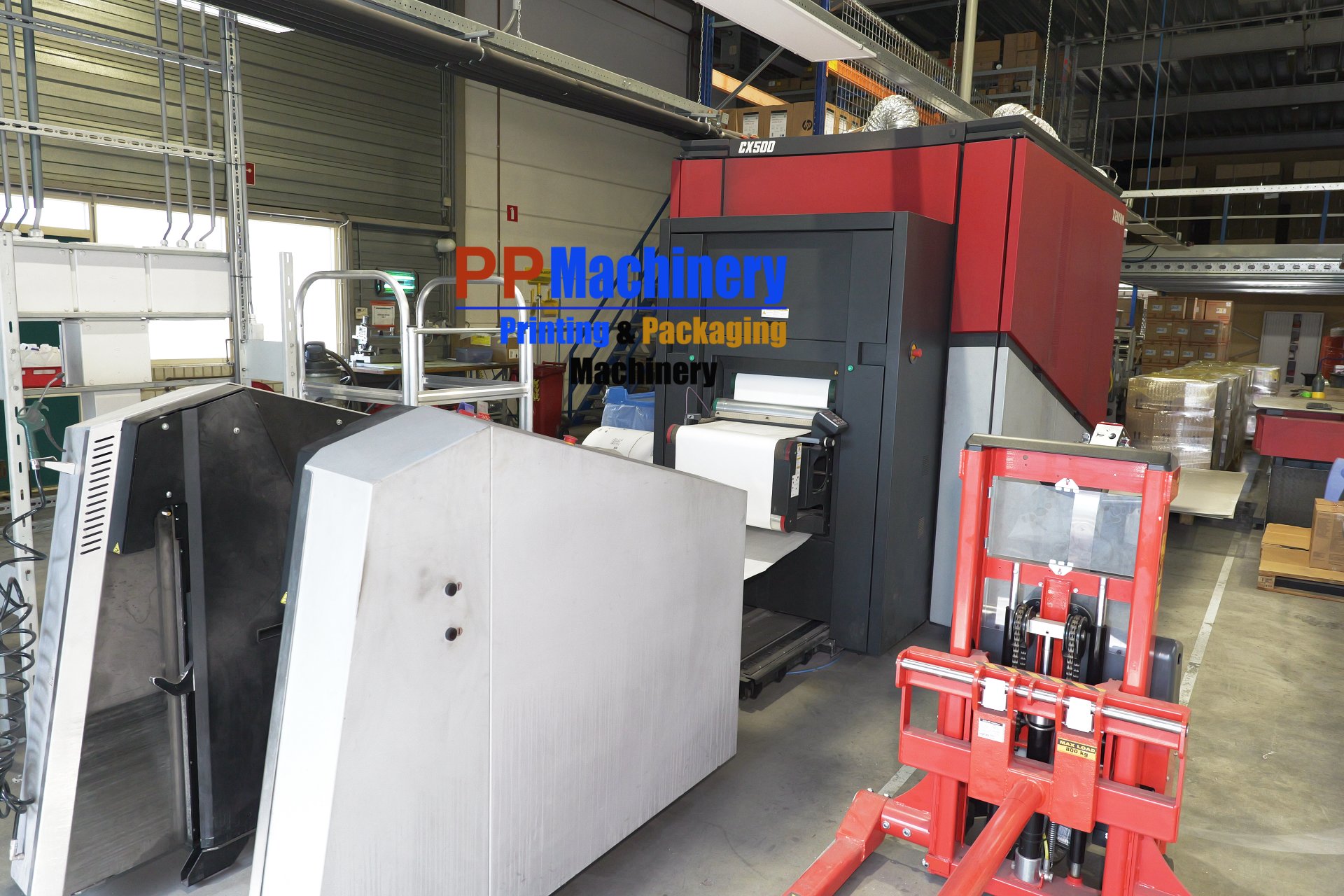

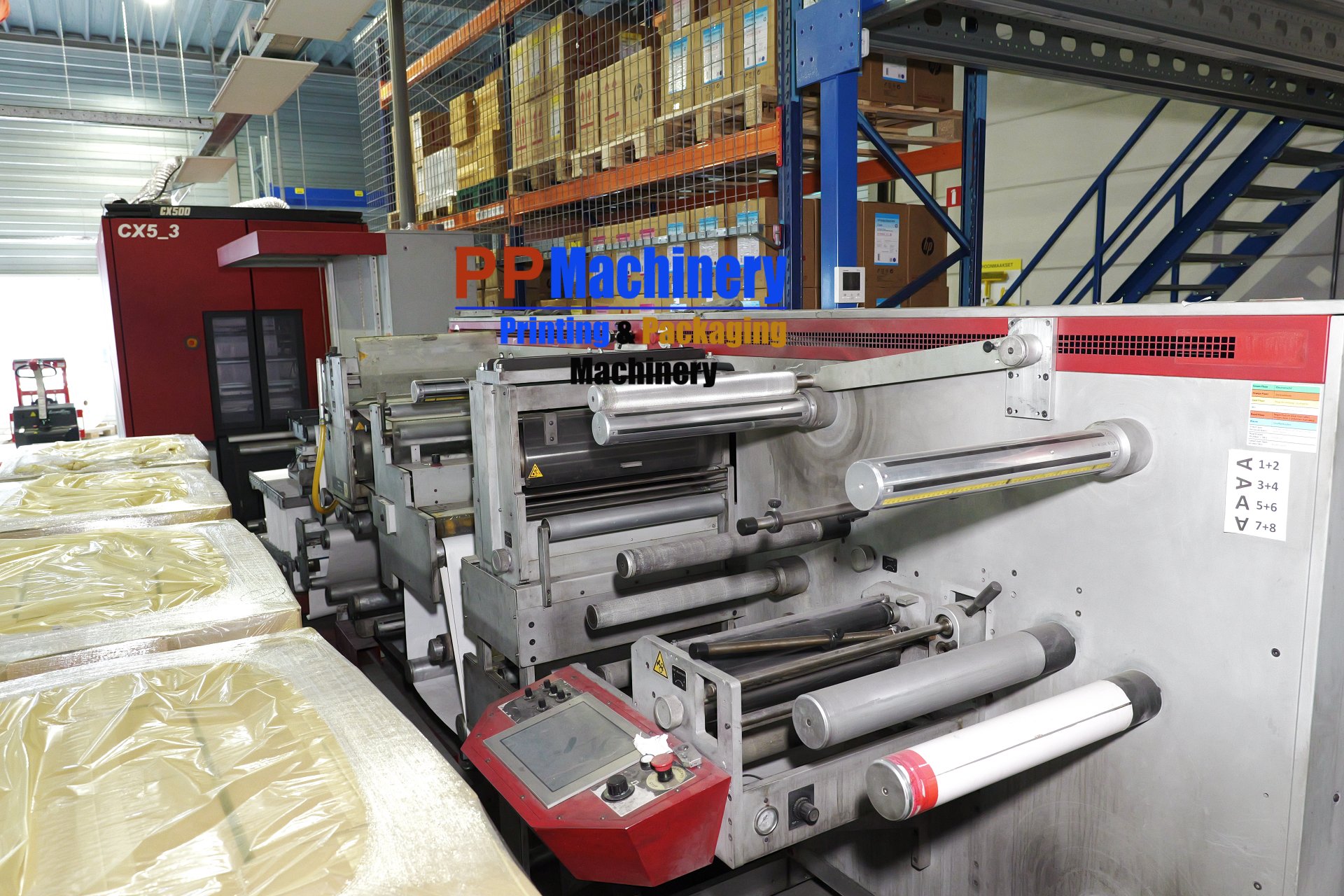

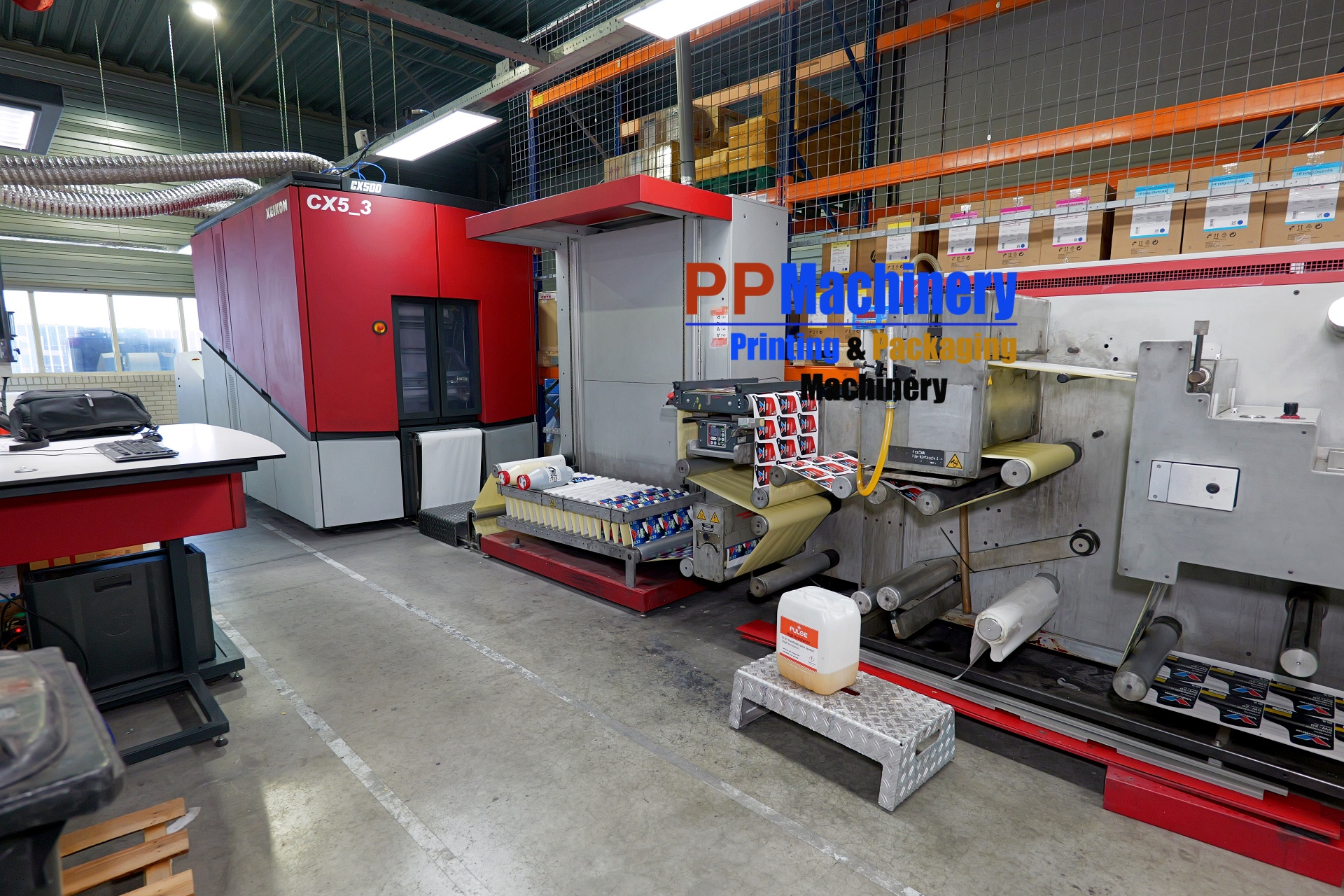

XEIKON CX500 Digital Label Press
500 mm / 20″ printing width with GM Finishing Line
Complete digital label production system. The Xeikon CX500 combines LED-array-based dry toner electrophotography with a modular GM semi-rotary finishing line, providing a complete workflow from raw roll to finished label roll without media pre-treatment.
01
Technical Specifications
| Machine Type | Digital Label Press with Finishing Line |
| Print Technology | LED-array-based, dry toner electrophotography |
| Printing Width | 500 mm / 20″ (Imaging width: 508 mm) |
| Max. Web Speed | 30 m/min / 98 ft/min |
| Productivity | 936 m²/h |
| Resolution | 1200 dpi with variable dot density |
| Screening | Pericles screening up to 240 lpi |
| Colour Configuration | 5/0 simplex, 5th colour station for spot colour, security toner or opaque white |
| Colour Sequence | White (5th), Yellow, Cyan, Magenta, Black – alterable |
02
Toner System
| Toner System | Xeikon QA-CH Cheetah Toner – Pantone® licensed |
| Food Safety | Meeting FDA regulation and Nestlé guidelines – ISEGA approved |
| Special Colours | R-G-B, ExtraMagenta, White, Clear (UV reflecting), Orange, MatteSilver and PalladiumSilver |
| Light Fastness | 6–8 on blue wool scale |
03
Print Media
| Media Width | Up to 520 mm / 20.47″ |
| Media Weight | 40 – 350 gsm |
| Media Caliper | 40 – 550 µm |
| Substrates | SA or PS label stock, paper and standard materials |
| Pre-treatment | No pre-treatment required |
Production Performance
30 m/minMaximum Web Speed
936 m²/hProductivity
1,450 MSI/hProduction Capacity
04
Digital Front End & Imaging
| Imaging Width | 508 mm / 20″ |
| Digital Front-End | Xeikon X-800 |

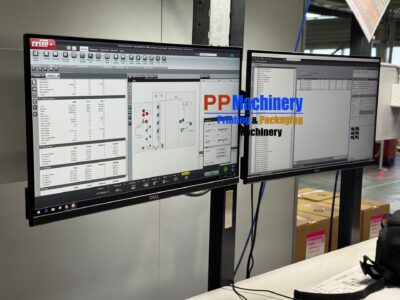

| Operator GUI | X-800 MyPress Controller |
| In-line Density Control | Standard |
| In-line Register Control | Standard |
| Compliance | CE, CB, FCC and Deinkability (Ingede) |
05
Peripheral Equipment

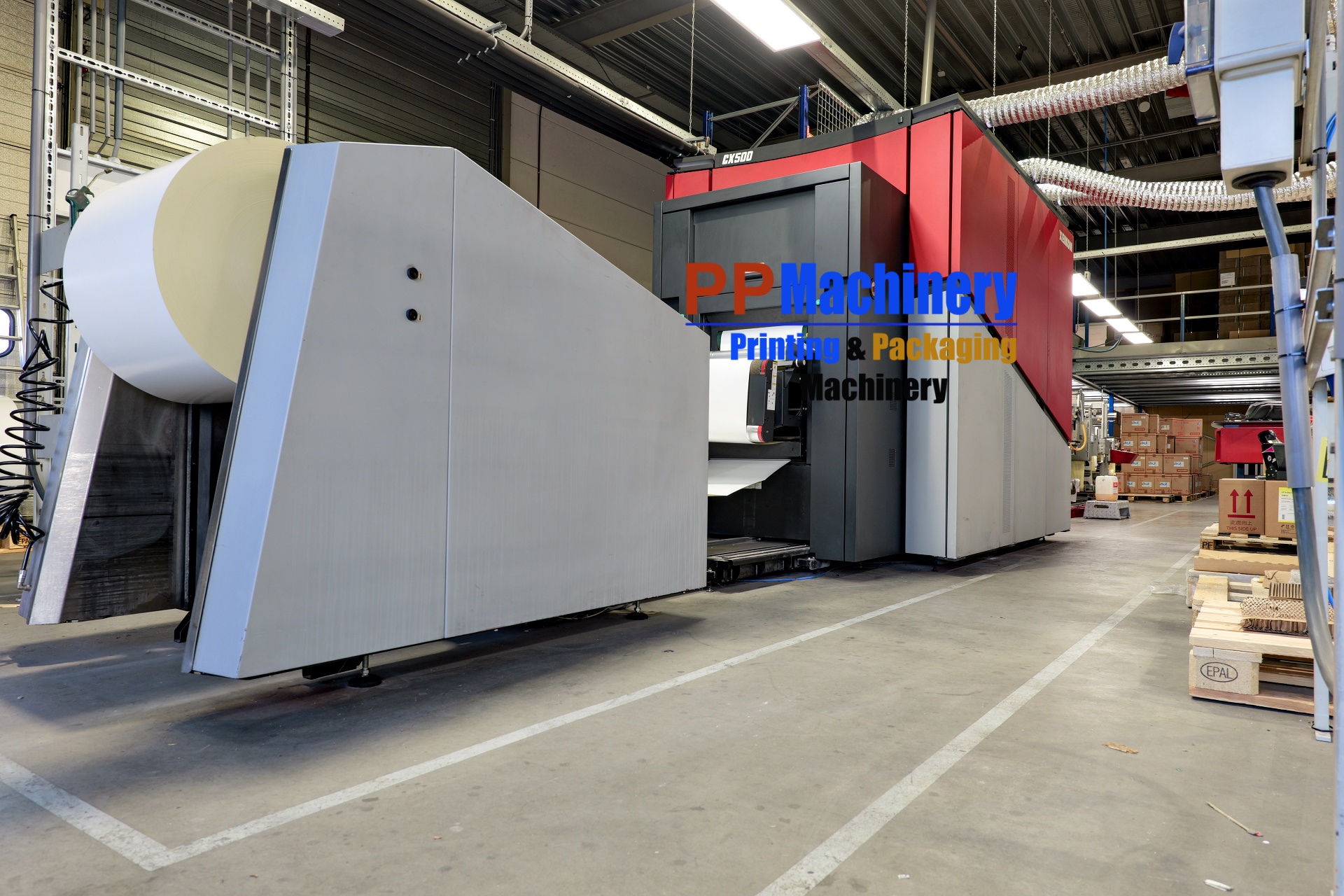

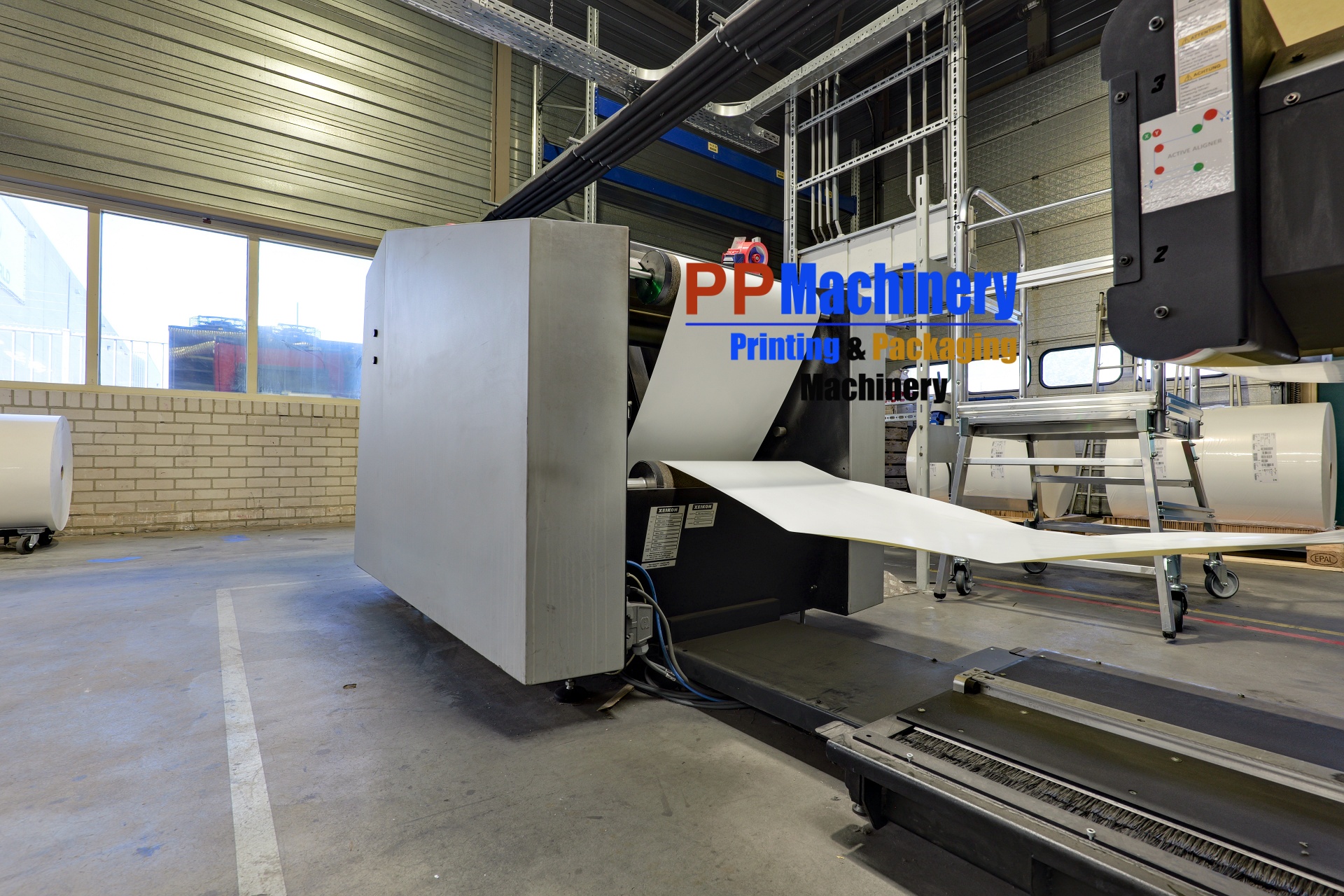

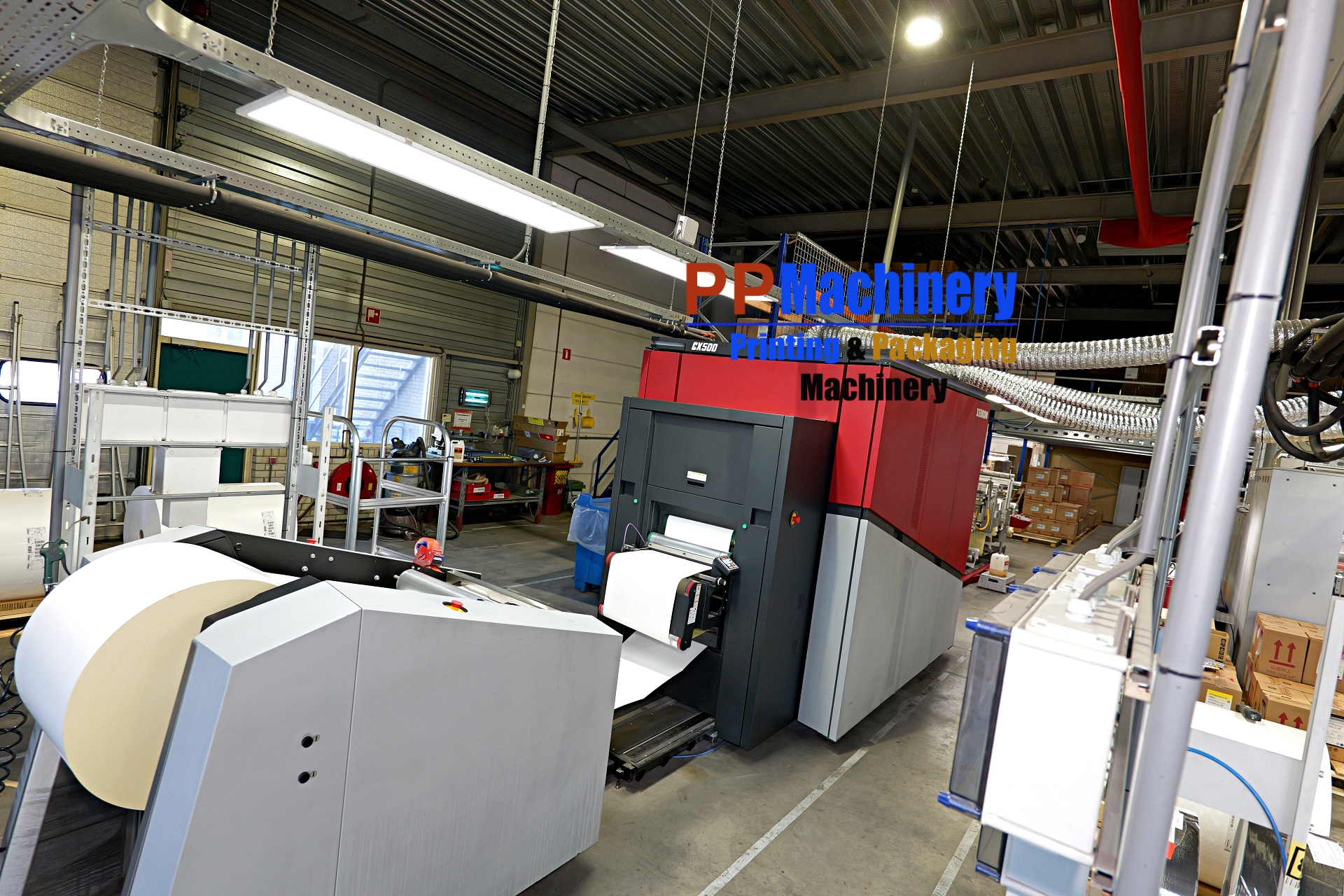

Reel Unwinder
Reels up to 1,500 mm / 59″ diameter
Reels up to 1,500 mm / 59″ diameter
Inline Web Varnish Module
WVM for flood or spot UV varnish
WVM for flood or spot UV varnish
Active Web Alignment
Standard web alignment system
Standard web alignment system
Full Rotary Printing
Variable repeat length with high productivity
Variable repeat length with high productivity
06
Key Features & Workflow
Full Rotary Printing
Variable repeat length with consistent quality.
Variable repeat length with consistent quality.
In-line Controls
Density and register control for maximum precision.
Density and register control for maximum precision.
Inline Varnishing
Web Varnish Module for flood or spot UV varnish.
Web Varnish Module for flood or spot UV varnish.
GM Finishing Integration
Corona treatment, web guiding, flexo coating and double rewinding.
Corona treatment, web guiding, flexo coating and double rewinding.
GM

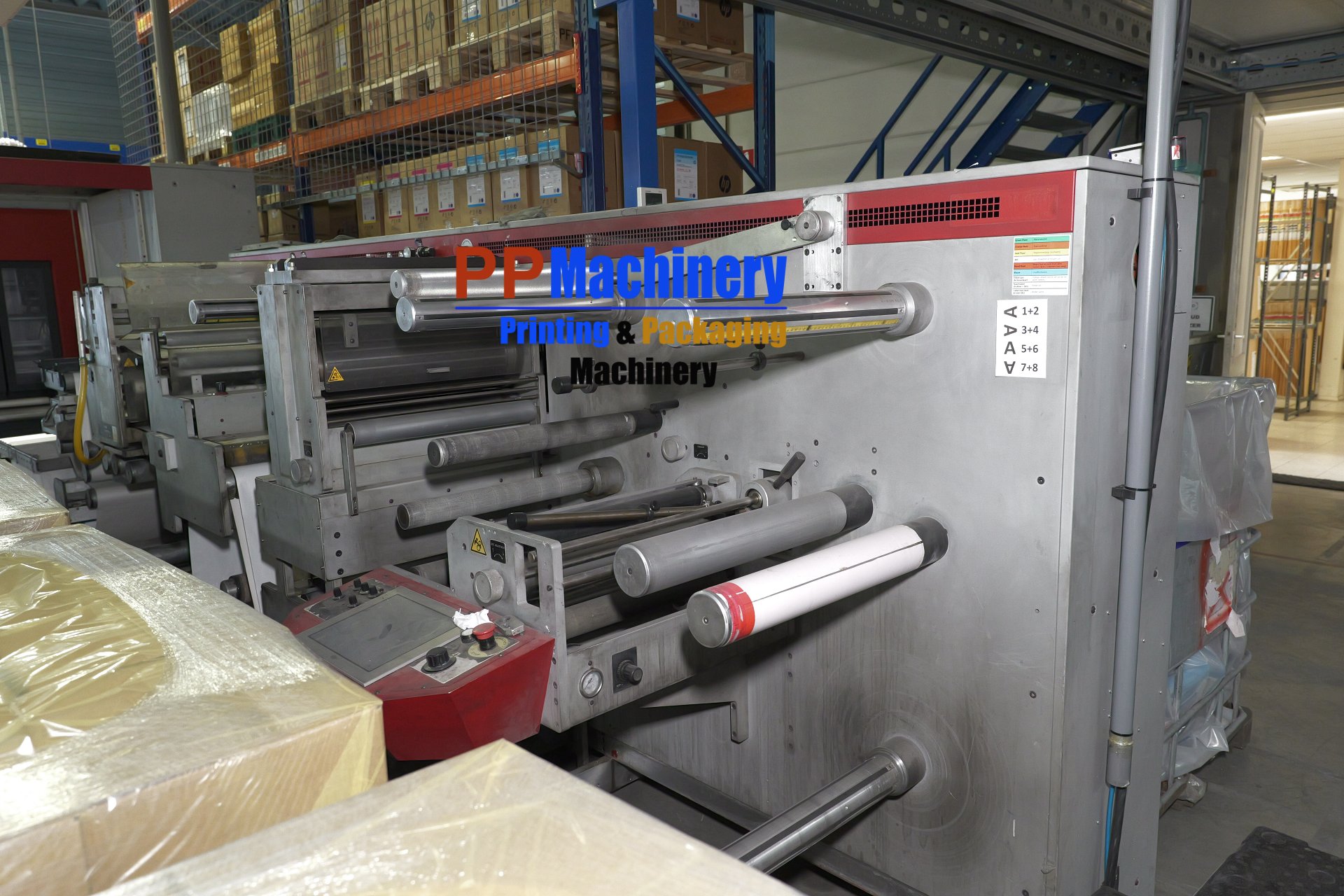

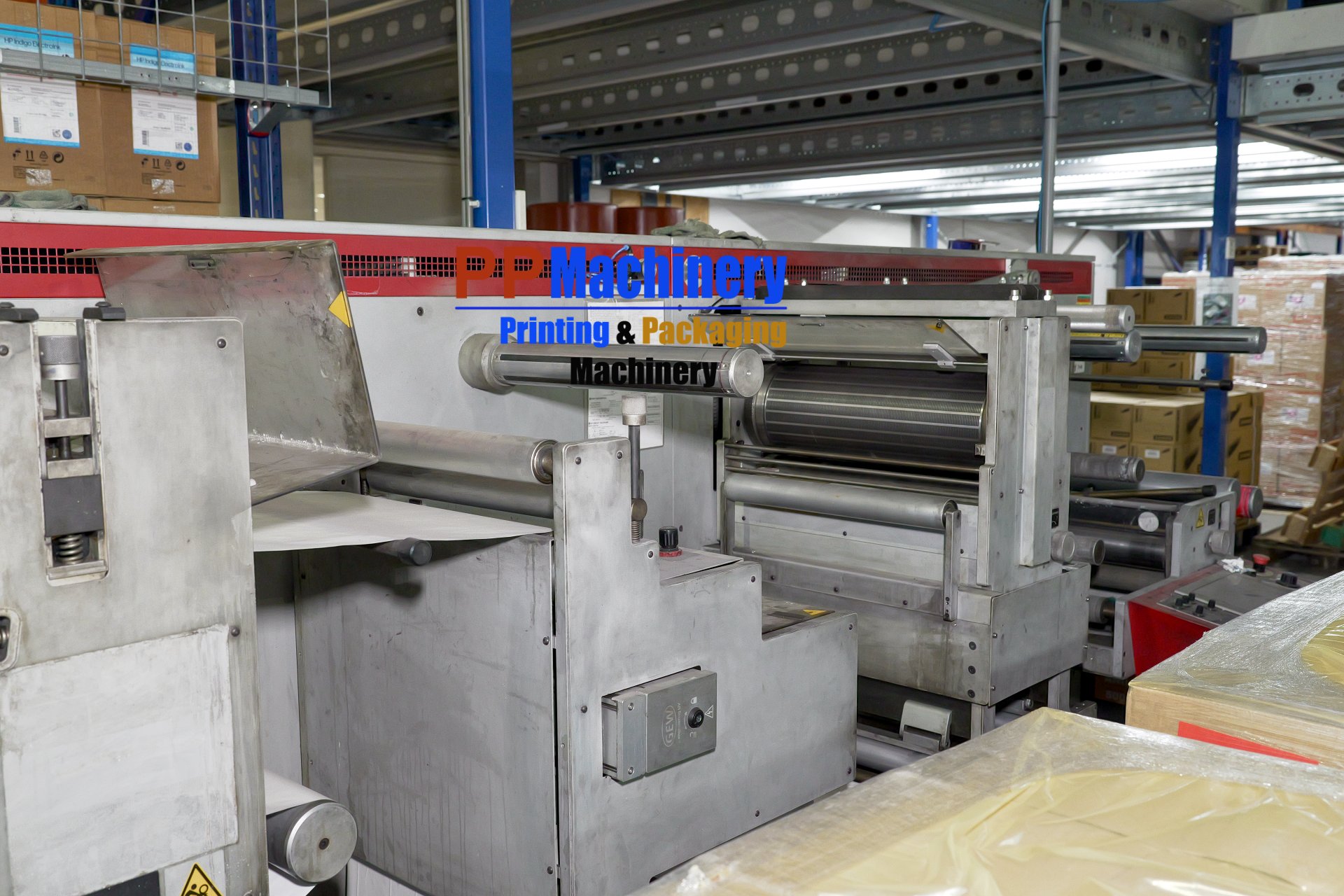

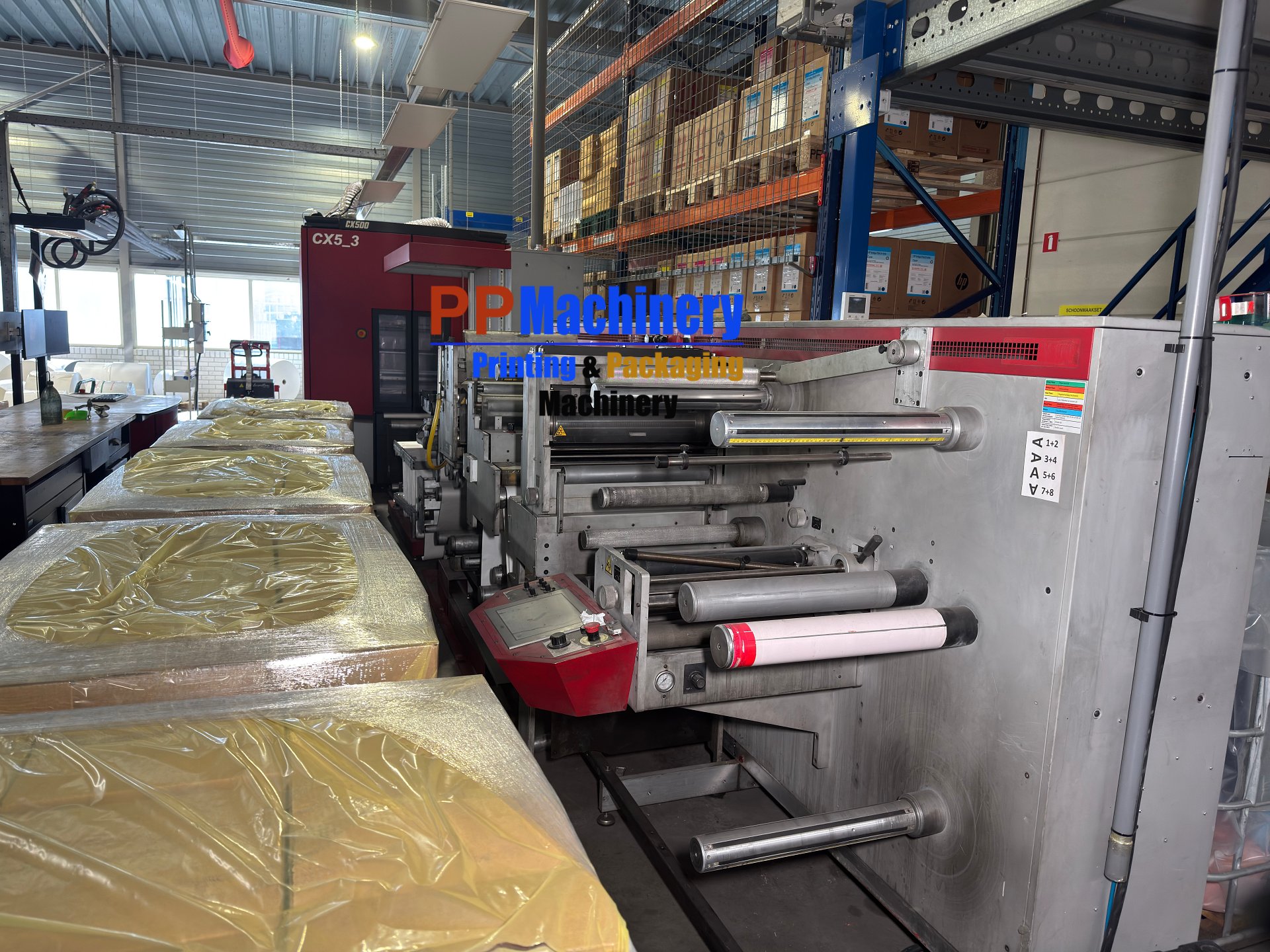

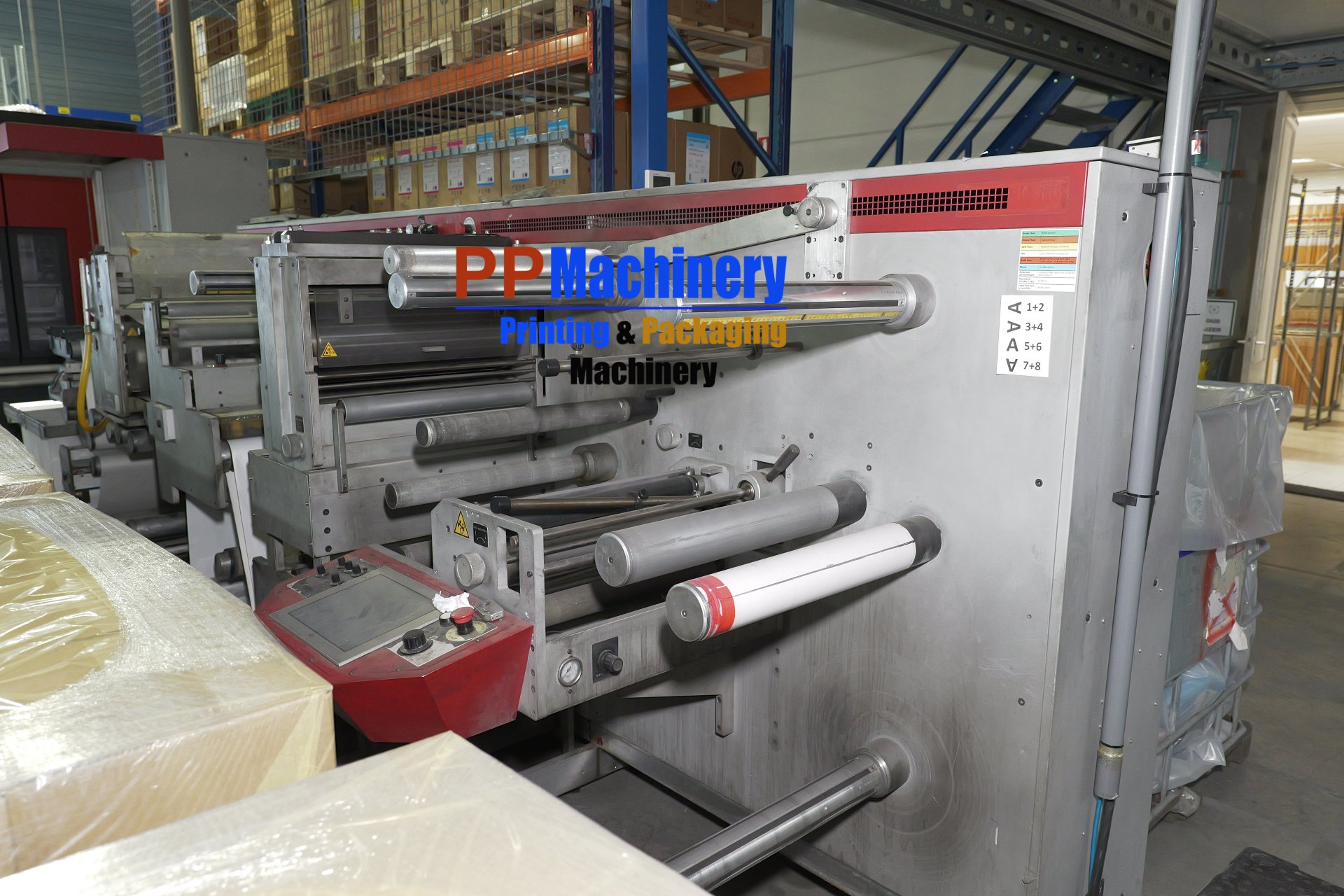

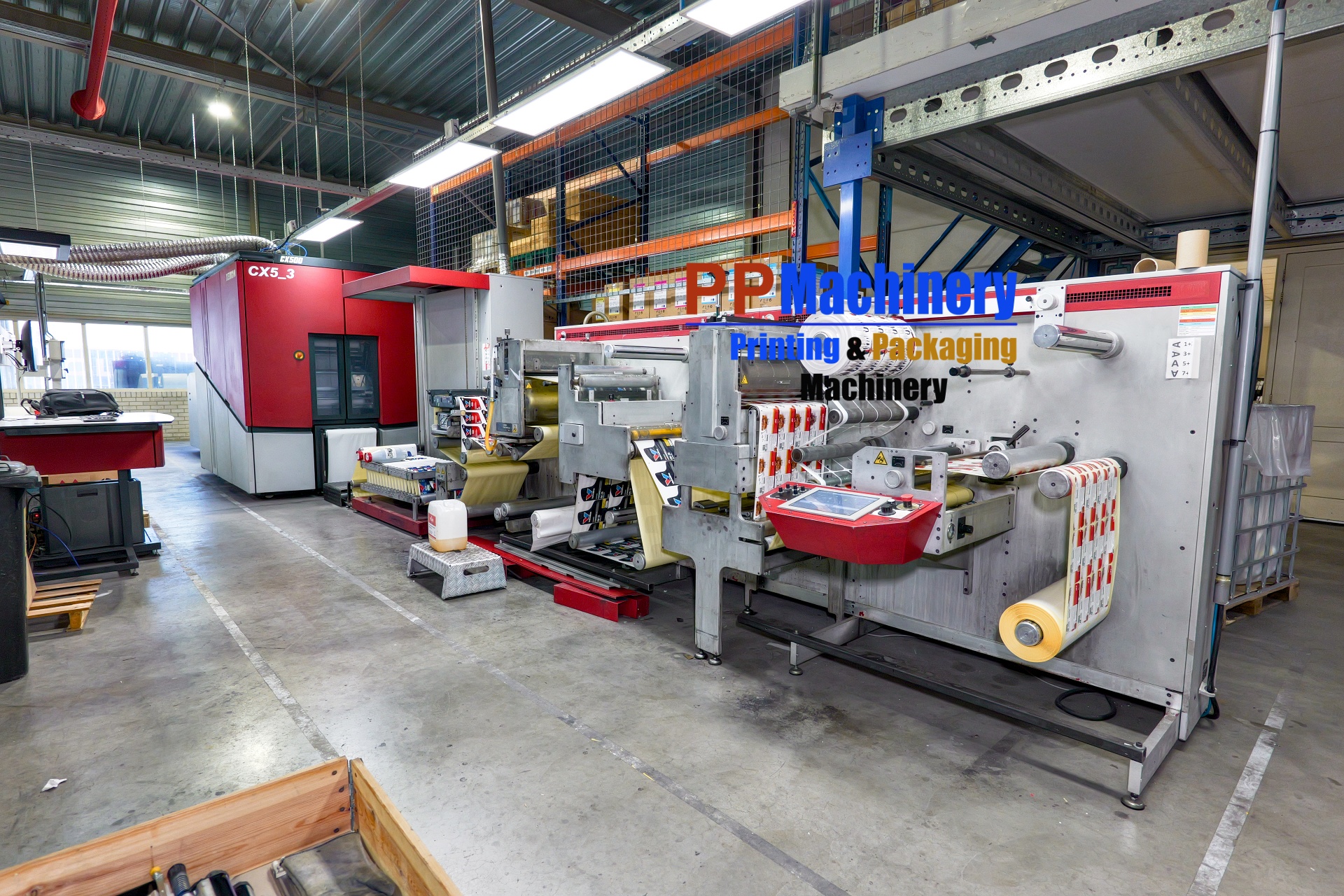

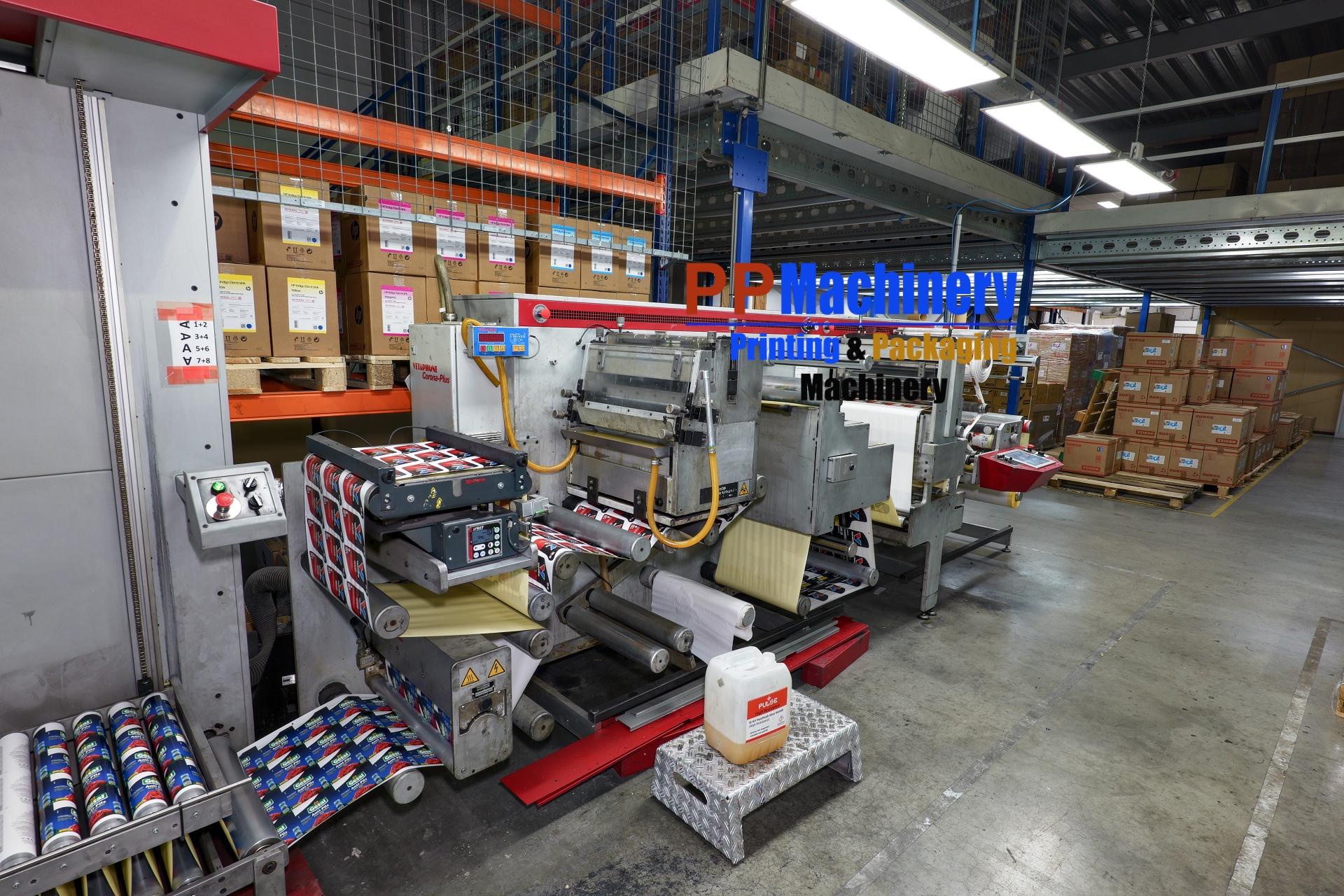

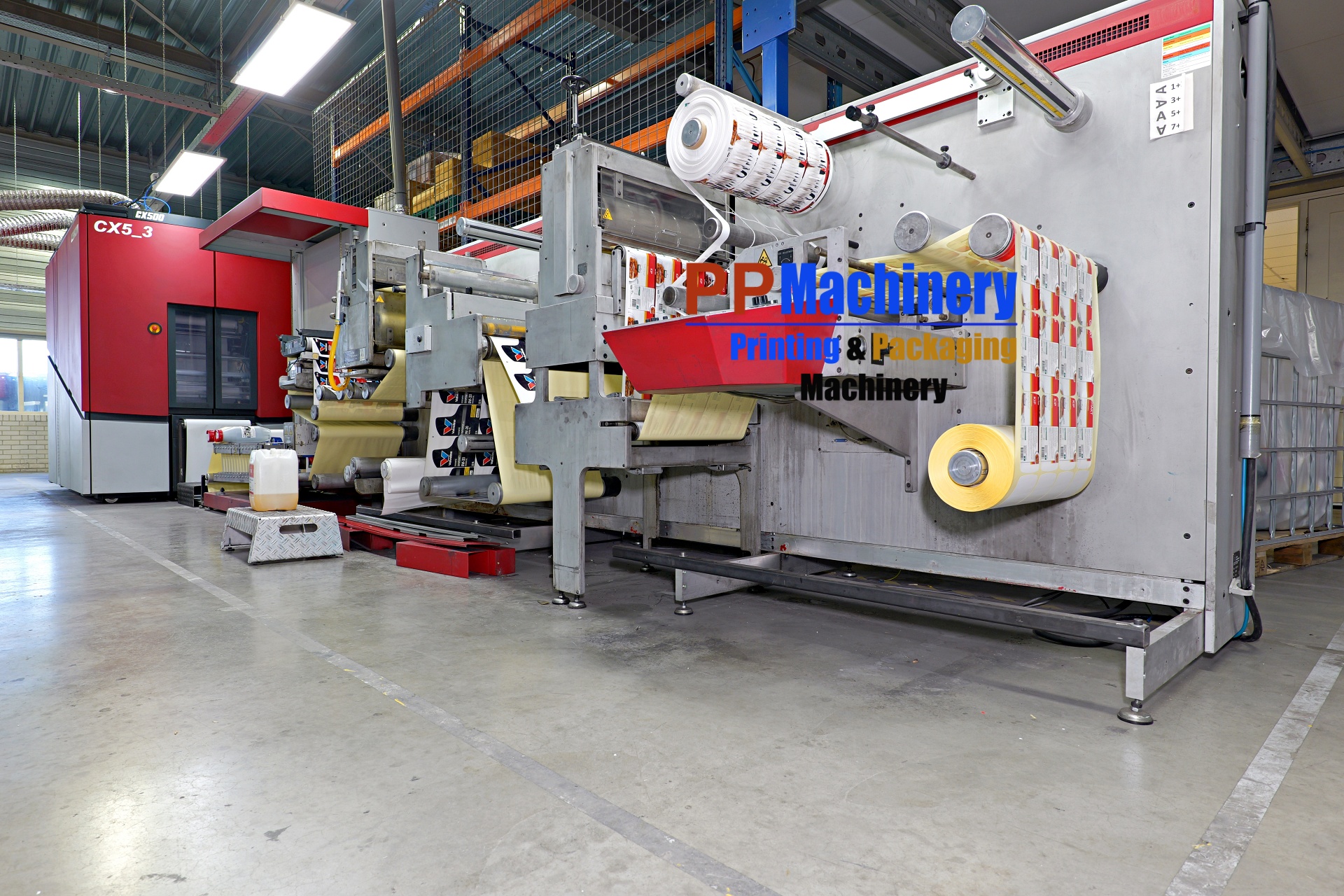

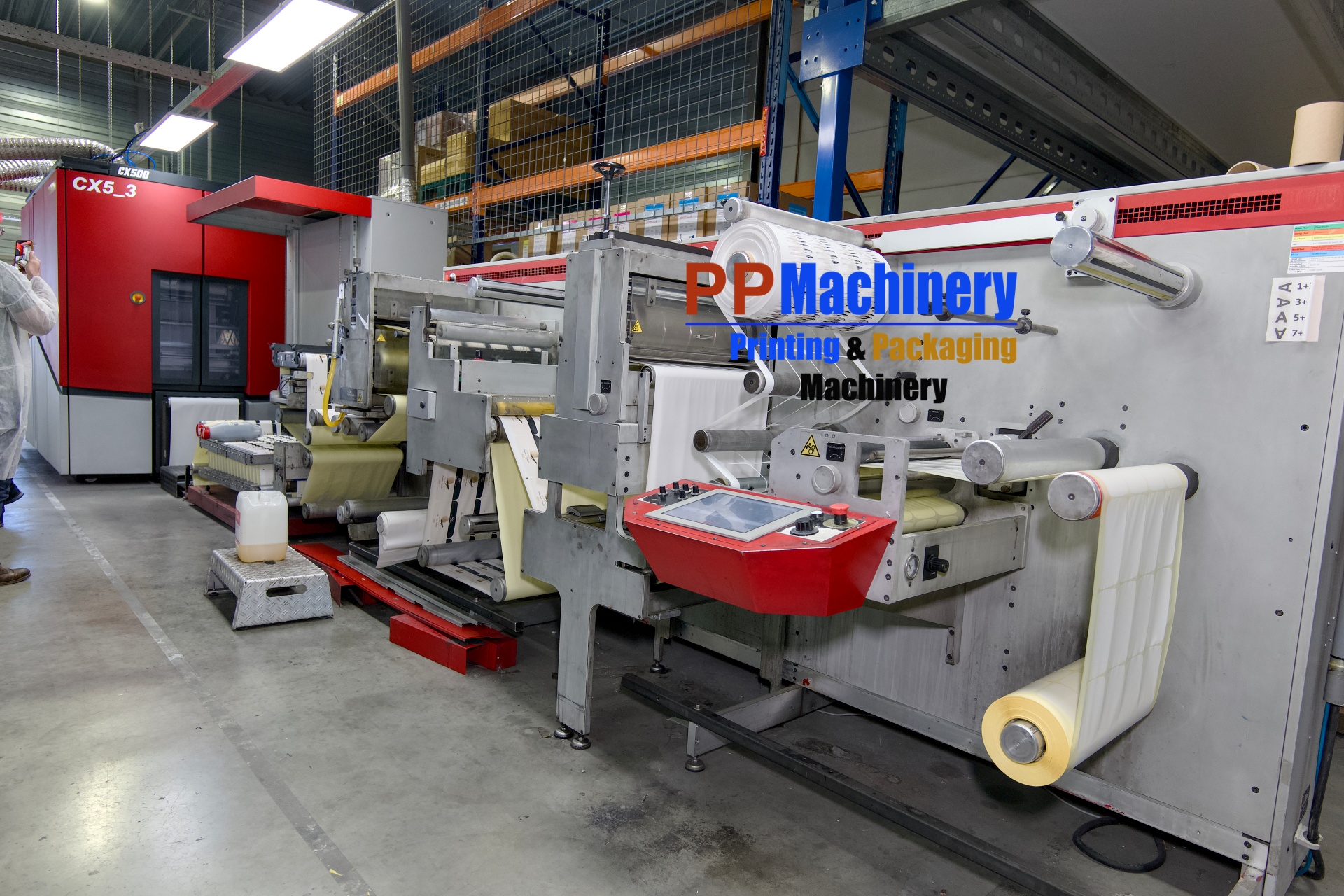

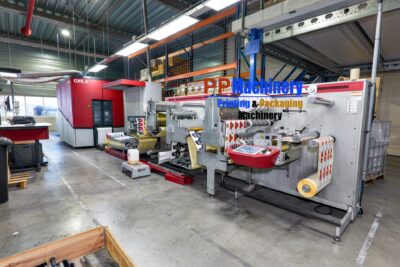

GM Semi-Rotary Finishing Line
520 mm / 20″ web width
Complete finishing configuration for professional label production, from printed web to finished label roll.
01 Unwinder

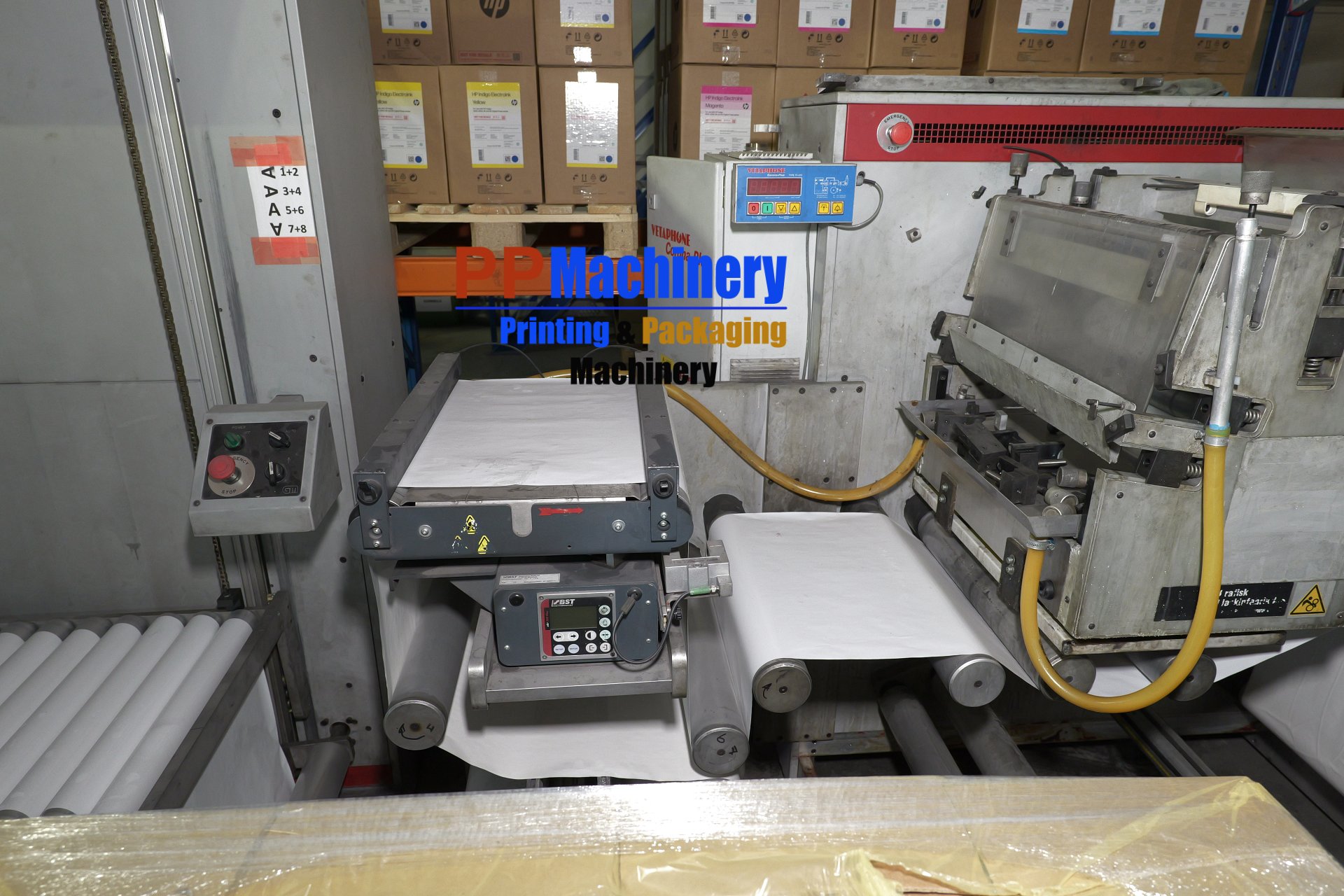

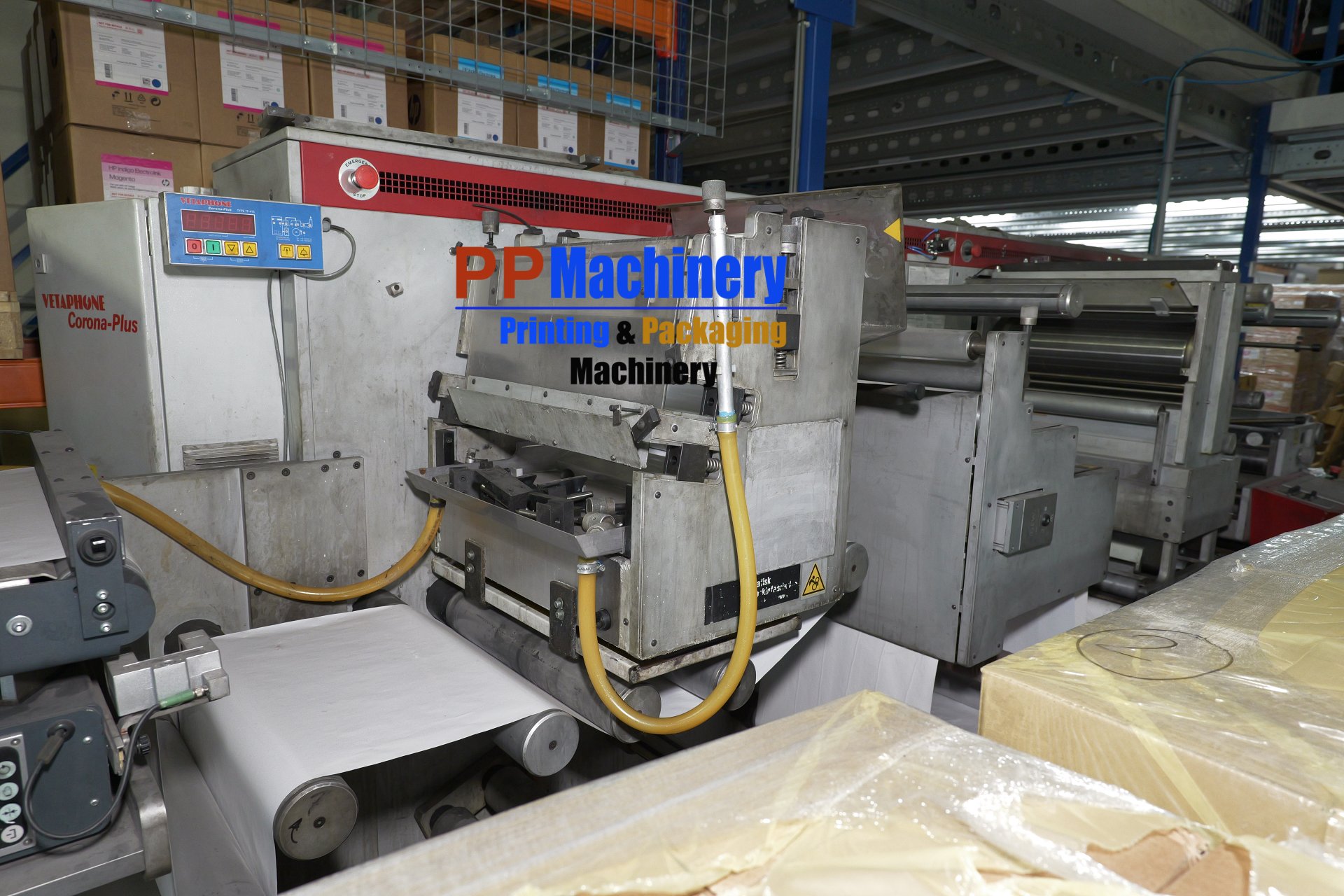

02 Corona Treatment
03 Web Guide
04 Flexo Varnishing / Printing Unit
05 UV Curing
06 Semi-Rotary Die Cutter
07 Laminating Unit
08 Double Rewinder
