We are pleased to offer the following high-quality used web offset printing press:

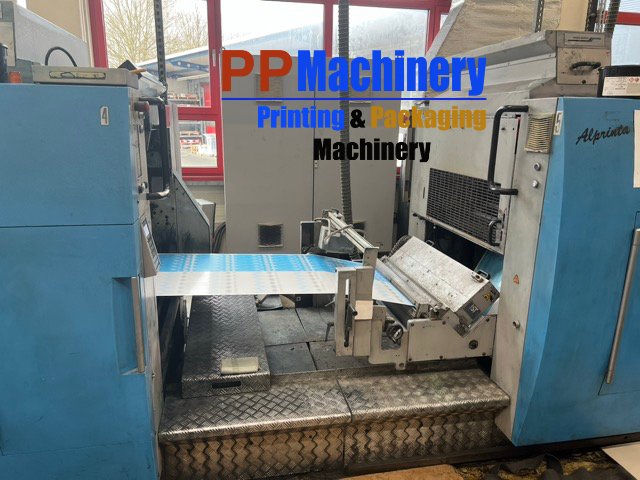

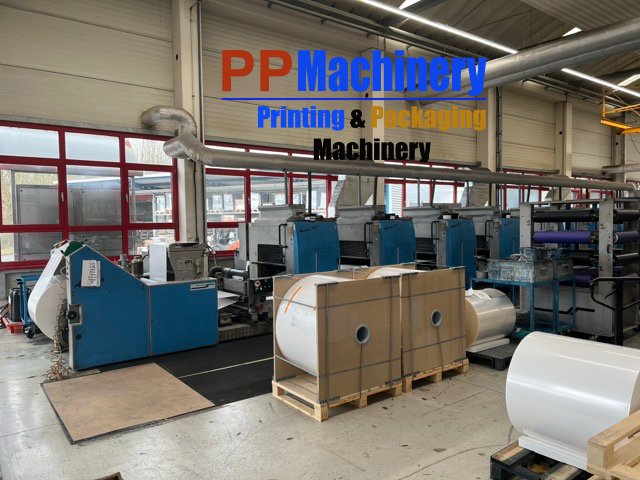

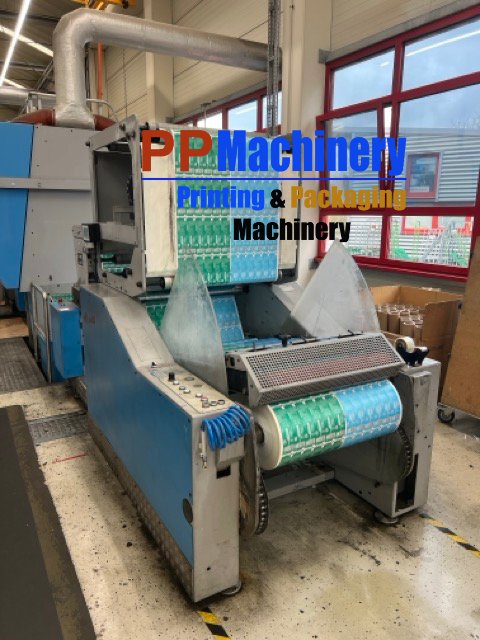

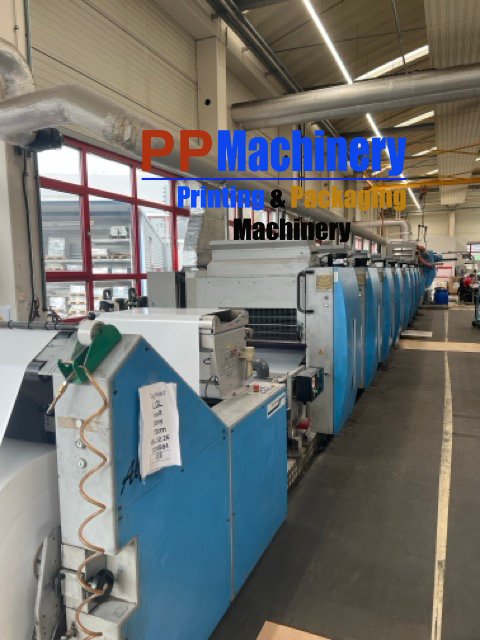

MÜLLER MARTINI Alprinta 74V – 8-Colour Format-Variable Web Offset Press with Flexo Unit and UV Drying
Year of manufacture: 2007
The Müller Martini Alprinta 74V is a versatile, format-variable web offset printing press for high-quality label, packaging and film printing. It combines eight wet offset printing units with a flexo unit, IST UV drying, automatic register control and BST video web inspection in one line. Thanks to the infinitely variable format range of 20″ to 28 1/3″ (508–720 mm), the press adapts quickly to different repeat lengths without changing cylinders, which makes it ideal for printers with many different job sizes.
With a maximum web width of 740 mm, a printing width of 736 mm and a top speed of 365 m/min (1,200 ft/min), the machine delivers high productivity and excellent print quality. The fully automated touch screen control, CIP3 ink zone pre-setting and the automatic make-ready system significantly reduce set-up times and waste. Servo-driven form rollers and a film dampening system ensure stable and consistent print results, even on demanding materials such as films.
The press can process paper, board, self-adhesive materials and transparent films from approx. 40 to 250 g/m². A corona treater, web break detectors for transparent materials and UV drying with opaque white lamps make it suitable for a wide range of applications. The machine is available from the end of 2026 in Western Europe and can be tested by serious buyers. Available for sale from PP Machinery.
Machine Video
▶ Watch the machine video on YouTube
Technical Data
| Technical Data – Müller Martini Alprinta 74V | |
|---|---|
| Manufacturer | Müller Martini |
| Model | Alprinta 74V |
| Year of manufacture | 2007 |
| Machine type | Web offset printing press, format-variable (wet offset + flexo) |
| Printing units | 8 × wet offset units + 1 × flexo unit |
| Max. printing width | 736 mm / 29″ |
| Web width (min. / max.) | 300 mm (11 5/6″) / 740 mm (29 1/8″) |
| Format range (cut-off) | 20″ – 28 1/3″ (508 – 720 mm), infinitely variable |
| Max. speed (reel/reel) | 365 m/min (1,200 ft/min) |
| Max. unwind / rewind diameter | 1,270 mm / 50″ |
| Core diameter | 70 mm (pneumatic shafts) |
| Substrate weight | approx. 40 – 250 g/m² |
| Substrates | Paper, board, self-adhesive materials, films |
| Plate cylinder undercut | 0.15 mm |
| Blanket cylinder undercut | 1.95 mm |
| Gearing | 1/3″ |
| Ink fountain | MM doctor blade ink fountain, 23 ink zones |
| Drying | IST UV system BLK-2 (200 W/cm), 2 cooling stations with UV preparation |
| Register control | MM automatic register controller (longitudinal & lateral) |
| Inspection | BST Premius Digital video web viewing, 19″ TFT |
| Data standards | CIP3 pre-setting of ink zones |
| Electrical connection | 400 V / 50 Hz, 3 phases, earth and neutral |
| Compressed air | 6 – 10 bar |
| Machine colour | Signal grey RAL 7004 / light blue RAL 5012 |
| Availability | End of 2026 |
| Location | Western Europe |
| Machine can be tested | Yes |
| Price | On request |
Main Features & Equipment

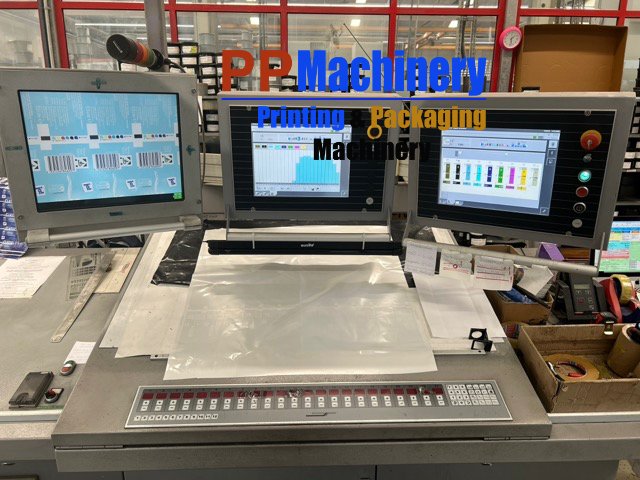

Control & Operating System
- ✔ Touch screen operation on swivel arm for all automated machine functions
- ✔ Automatic set-up and storage of new and repeat jobs
- ✔ Main console with air conditioning, CAN fieldbus and electronic shaft
- ✔ 2nd touch screen with swivel arm for ink zone control
- ✔ Ink zone control panel with actual value display per zone
- ✔ CIP3 software for ink fountain pre-setting
- ✔ Modem for remote diagnostics
Unwinding & Web Feeding
- ✔ Unwinding unit 2511, max. roll diameter 1,270 mm (50″), motor-driven roll lifting
- ✔ Pneumatic unwinding shaft 70 mm
- ✔ Web edge control BST with ultrasonic sensors (also for transparent materials)
- ✔ Web tension measuring rollers with display in machine control
- ✔ Splice detection with ultrasonic sensors
- ✔ Non-contact web cleaner with static discharge device
- ✔ AFS corona treater for single-sided pre-treatment of films
- ✔ Web break detectors for transparent substrates

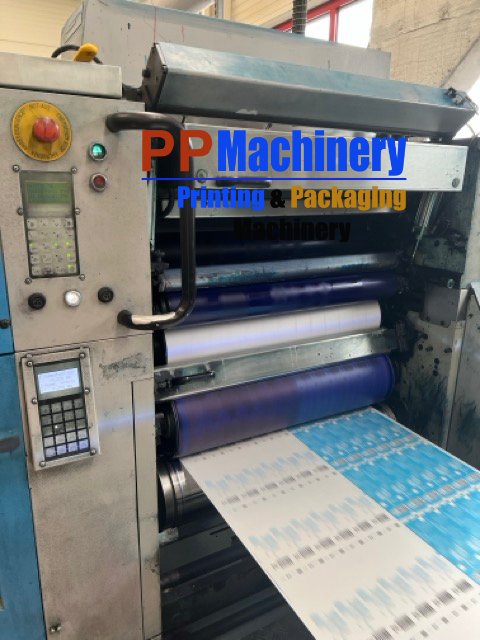

Wet Offset Printing Units (8×)
- ✔ 8 × wet offset printing unit 2512 with motor-adjustable doctor blade ink fountain (23 zones)
- ✔ Format-variable print inserts, 20″ – 28 1/3″, motorized cylinder adjustment
- ✔ 4 form rollers with individual servo drives
- ✔ Film dampening system, switchable direct/indirect, ceramic metering roller
- ✔ Remote circumferential and lateral register adjustment
- ✔ Traversing form rollers no. 2 and 4, switchable off
- ✔ Automatic ink roller washing device with second washing system
- ✔ Ink mist extraction hood, ink agitator and ink level monitoring
- ✔ BEIL plate bending device and plate positioning with video cameras
- ✔ Device for mounting printing plates outside the press
- ✔ Mobile rack for up to 18 plate or blanket cylinders and hydraulic transport console
- ✔ Set of spare rubber rollers
- ✔ Flexo cassette preparation on units 1 and 8
Flexo Unit
- ✔ Flexo unit 2518 with chambered doctor blade system
- ✔ Servo drive for web advance, anilox sleeve and plate axis
- ✔ Remote lateral and circumferential register adjustment
- ✔ Plate sleeve with Twinlock surface, anilox sleeve 80 L/cm
- ✔ Novotec sleeve for full-surface coating
- ✔ Flexo cassette with chambered doctor blade and anilox roller (80 L/cm)
Temperature Control & Cooling
- ✔ Technotrans gamma.d dampening water circulation and cooling unit
- ✔ Alcohol stabilizer Technotrans Alcosmart AZR and aquados.a dosing system
- ✔ Temperature-controlled ink duct, friction and distributor rollers
- ✔ Distributor temperature control unit (15.2 / 3.7 kW) and cooling unit (15.2 kW)
- ✔ 2 × cooling station 2516 with 36″ pull/cooling roller, prepared for UV drying
UV Drying System
- ✔ IST UV system BLK-2, 200 W/cm, water-cooled housings with shutters
- ✔ Infinitely variable power control via SLC control, operation via MM touch screen
- ✔ Mobile UV measuring device
- ✔ 3 × specially doped lamps for special colours (opaque white)
- ✔ Relocatable UV lamps with pluggable supply lines and mounting frames
Register Control & Inspection
- ✔ MM register controller for automatic longitudinal and lateral register
- ✔ Scanning unit for colour register, max. 8 colours
- ✔ Reverse side flash-through for transparent films
- ✔ Additional scanning and control unit for flexo unit
- ✔ BST Premius Digital video web viewing, 19″ TFT, 3-chip high-speed camera
- ✔ Bar code analysis and print defect detection software
Rewinding
- ✔ Rewinding unit 2515, max. 1,270 mm (50″), decreasing web tension
- ✔ Servo drive, motorized roll lifting, pneumatic dancer
- ✔ Pneumatic rewinding shaft 70 mm
For further technical information, photos, videos or an offer, please contact us. The machine can be inspected and tested by arrangement.
