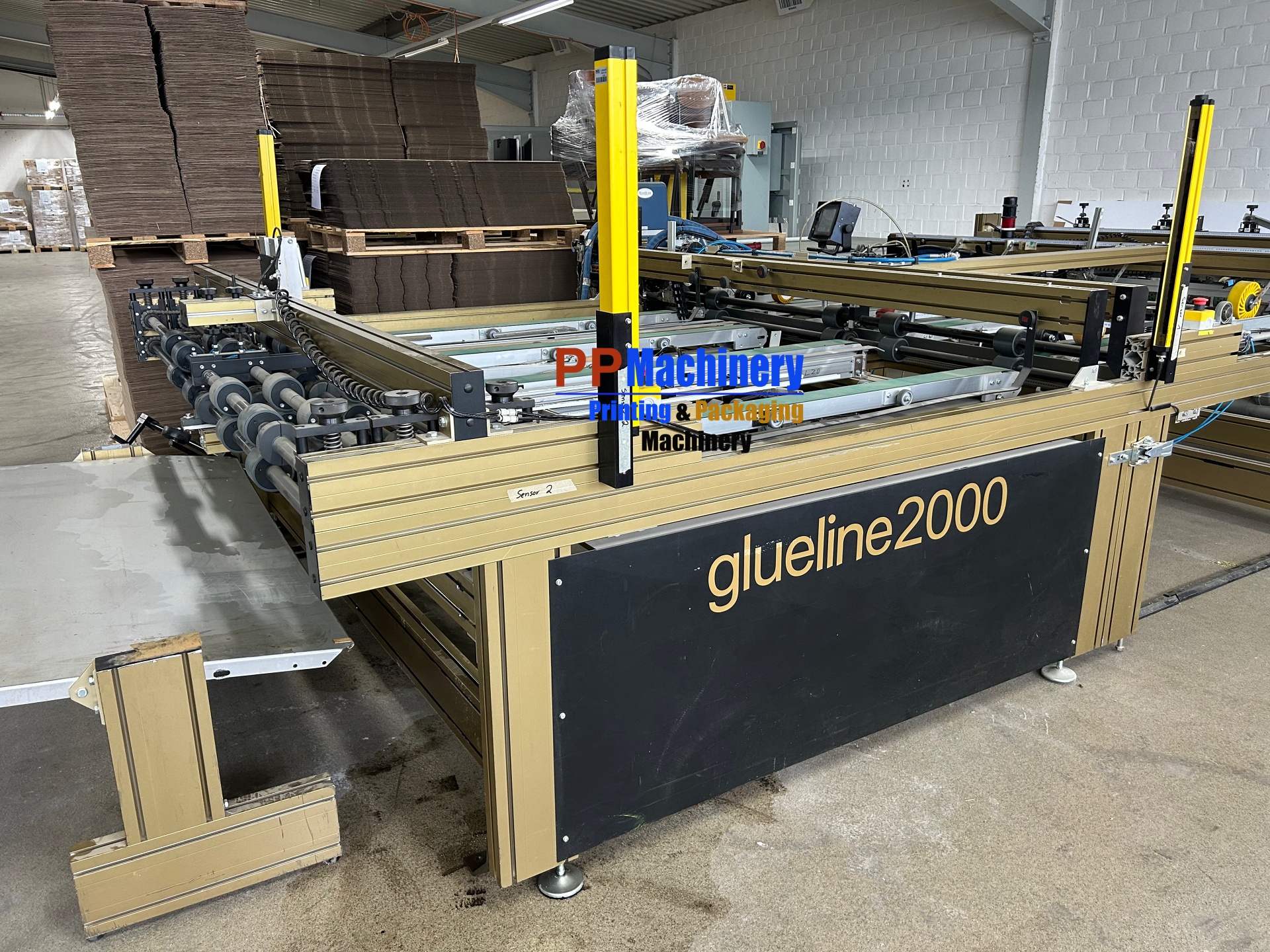

Lamina Glueline 2000 – Folder Gluer for 2 part boxes
Technical Details:
Material Thickness 0,6 mm – 10 mm
Sheet width: Min./Max.: 2 x 700 mm / 2 x 1000 mm (total width 2000 mm)
Sheet length Min./Max.: 500 mm / 700 mm
Machine Speed: Bis zu 1.000 boxes/h
Register tolerance: +/- 1 mm
Dimensions (W x L) ca. 6200 mm x 2950 mm
Weight: Approx: 1.000 kg
Main features and modules:

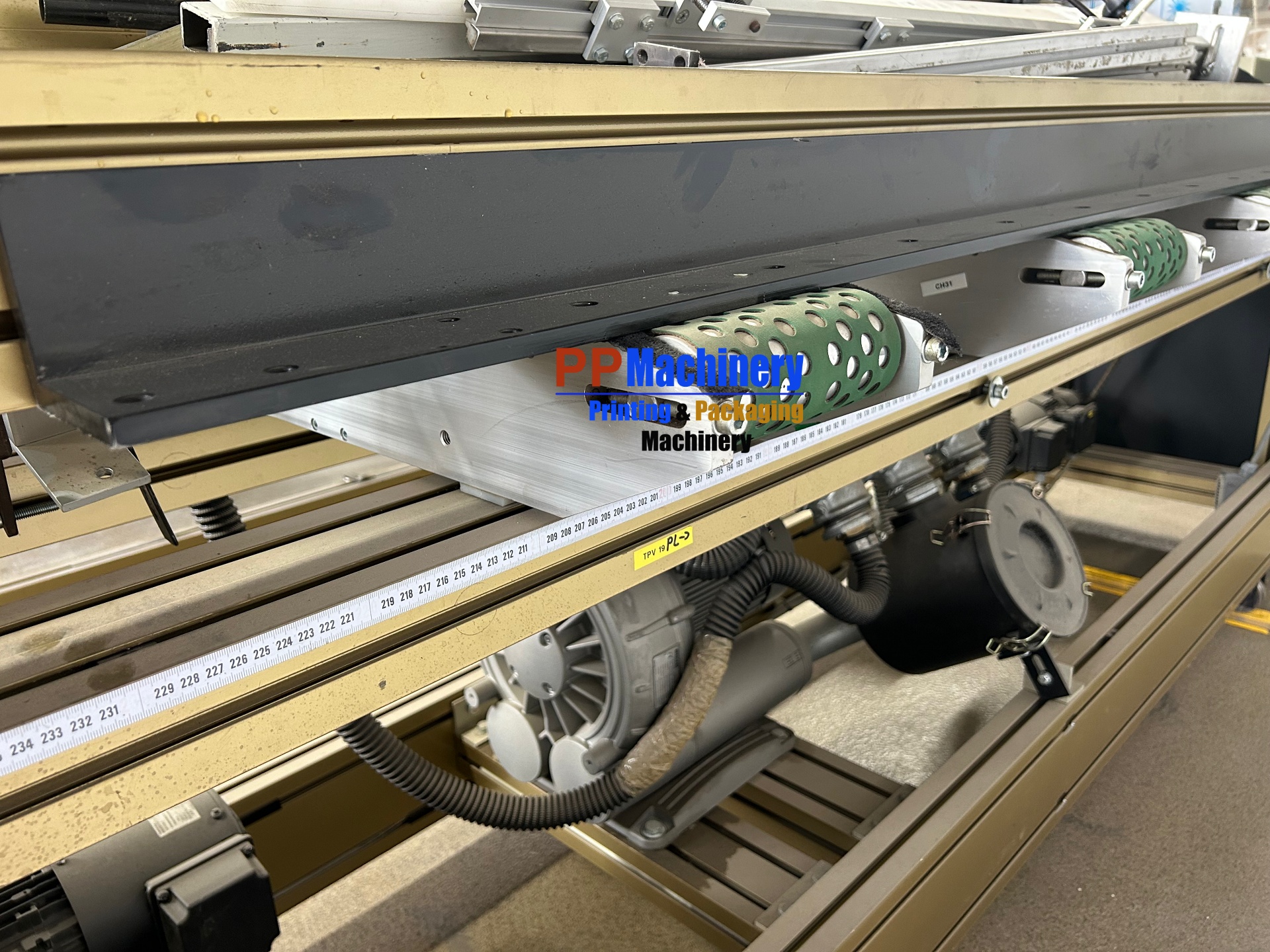

Automatic sheet feeder: Sheets are fed via powerful vacuum belts, allowing for processing a wide range of materials. The feeder can be configured for the production of one- or two-piece products.

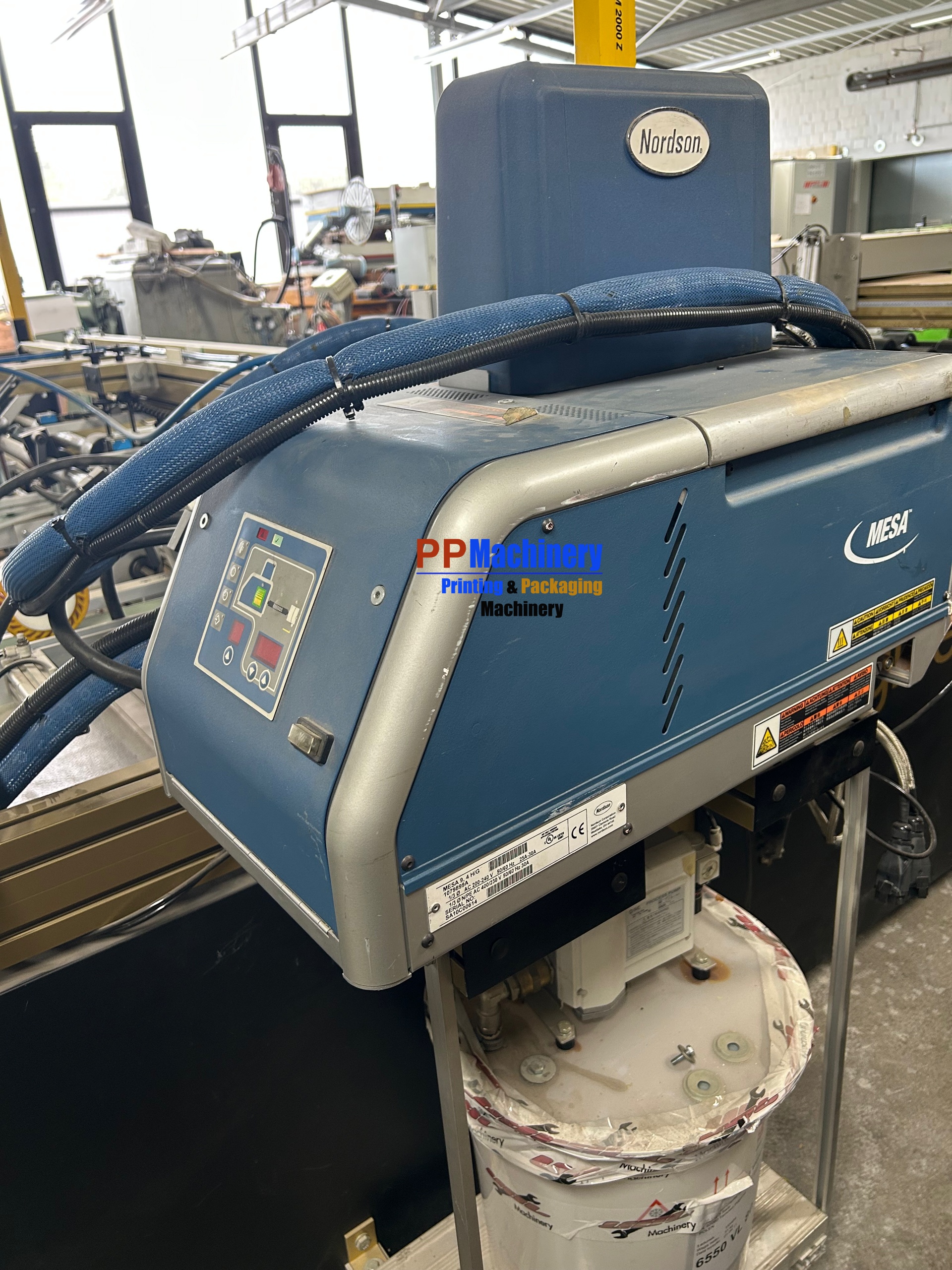

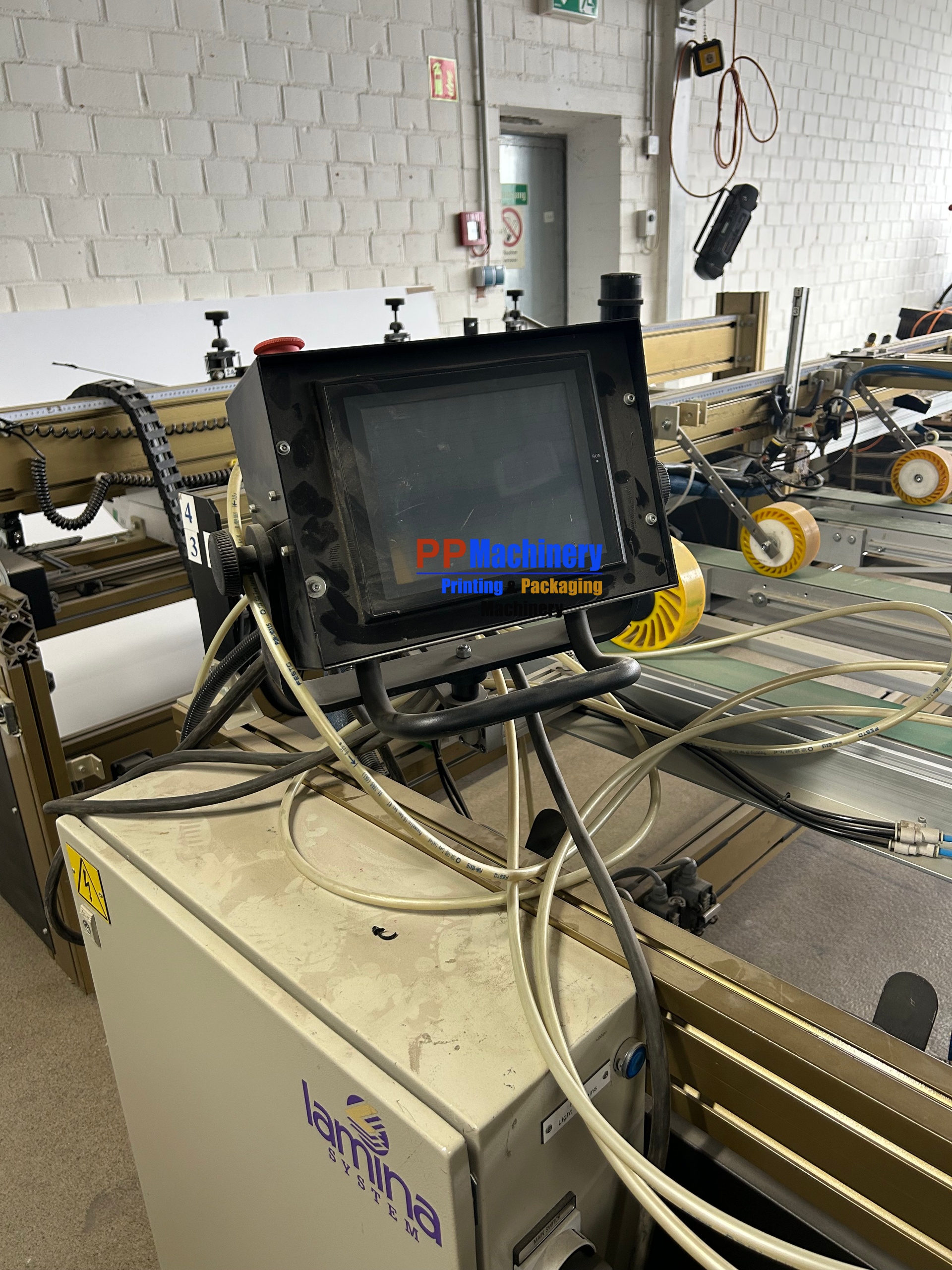

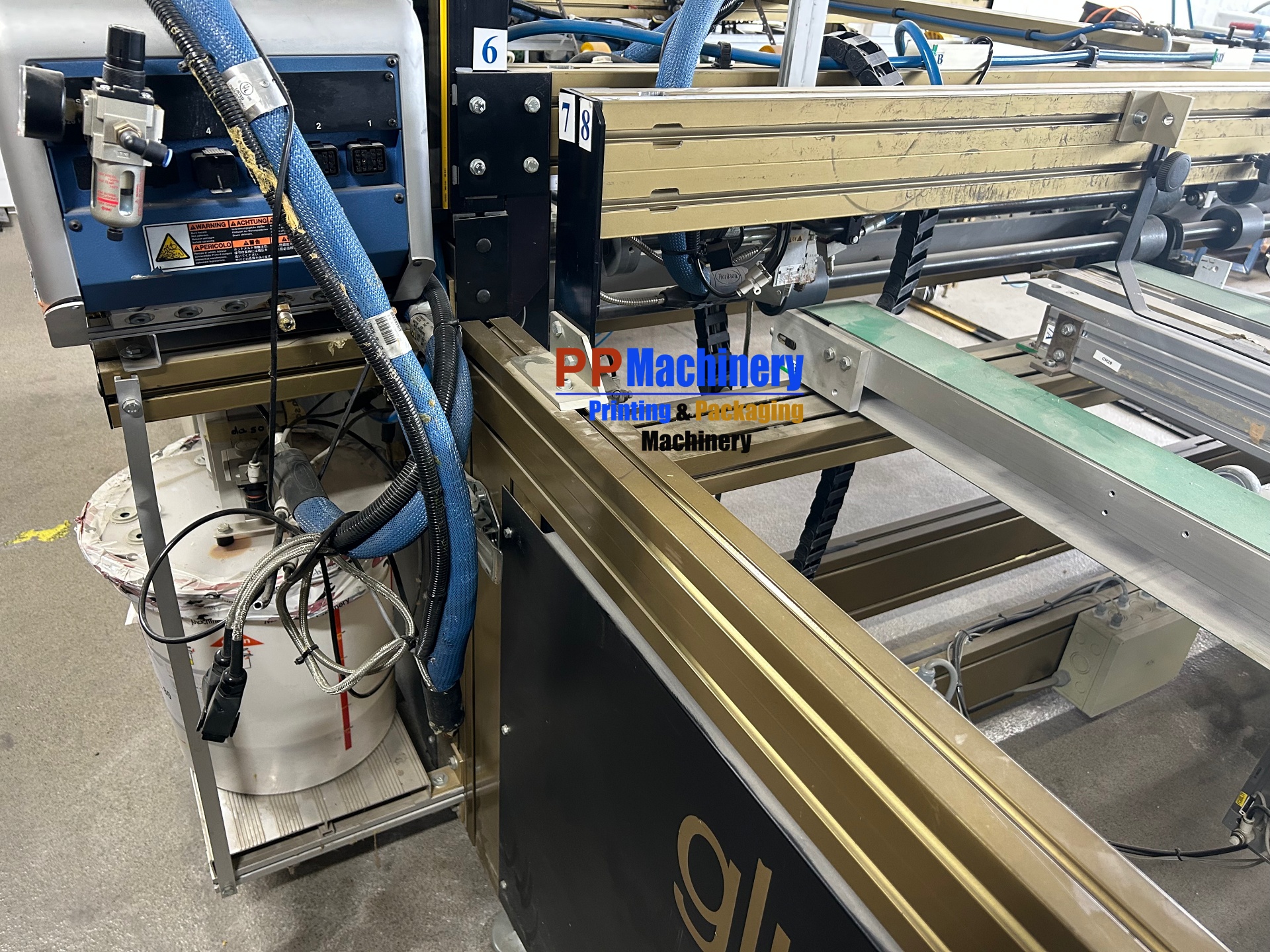

Glue station: The machine is equipped with a hot-melt glue system as standard. A combination with cold glue is also possible. Glue lines can be easily programmed via a touchscreen and saved for recurring jobs.
Register unit: A system of guides, a mechanical sliding system, and photocells ensures precise sheet alignment.

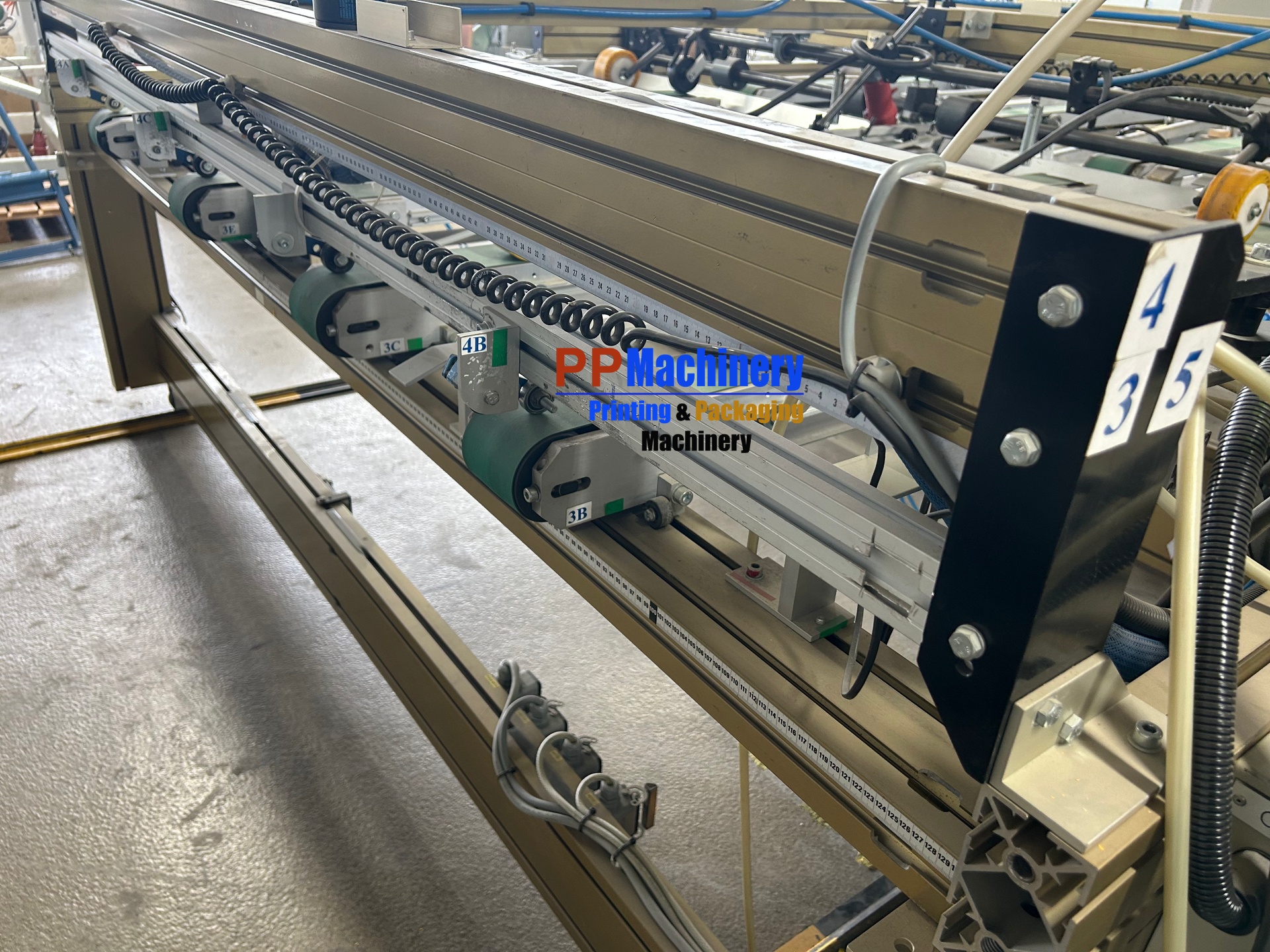

Folding station: Boxes or displays are folded using an adjustable guide system that can be quickly adapted to different designs.
Flexible design: All modules are mounted on rails and are movable, allowing the operator easy access for quick setup and changeover times.Optionale Ausstattung
