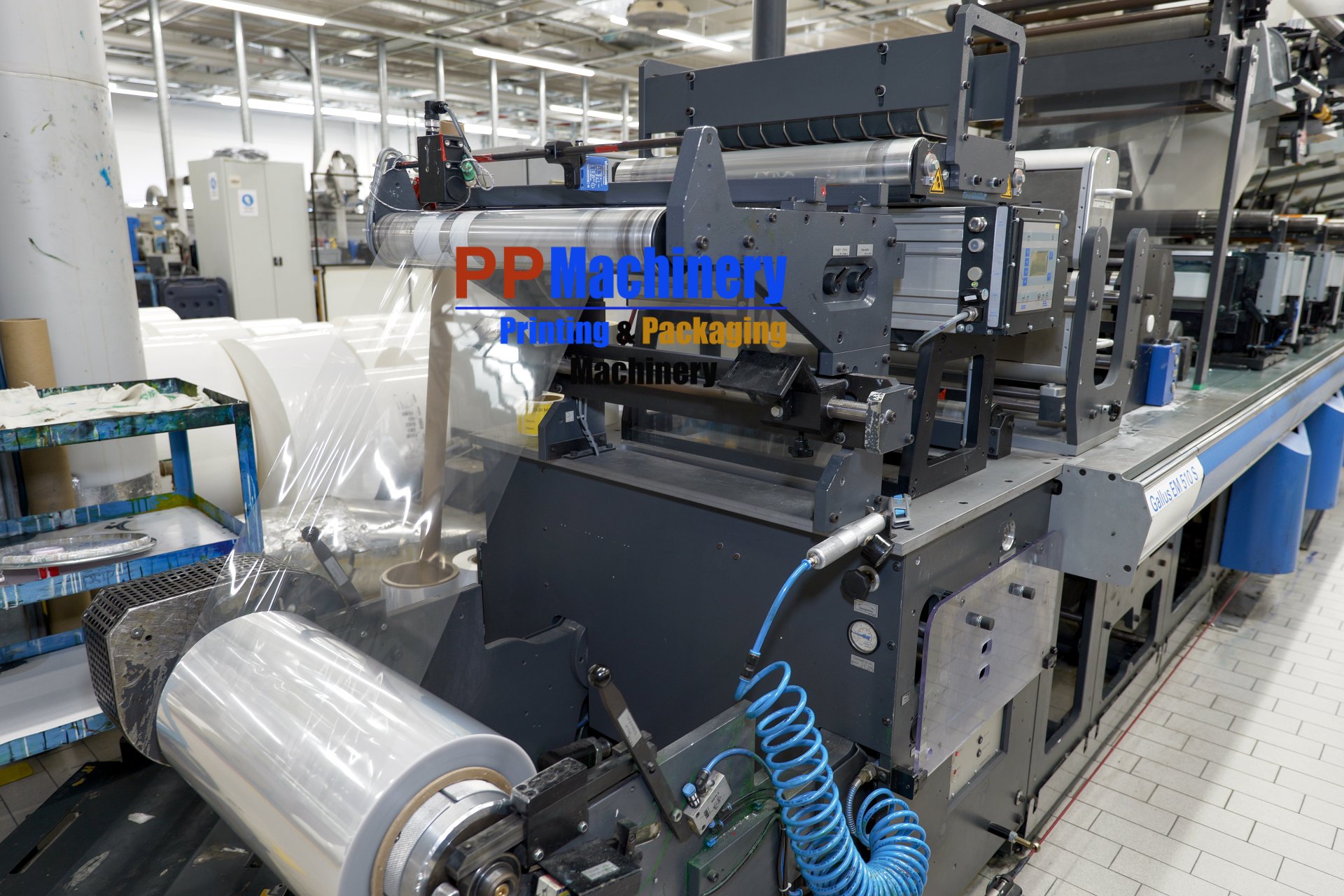

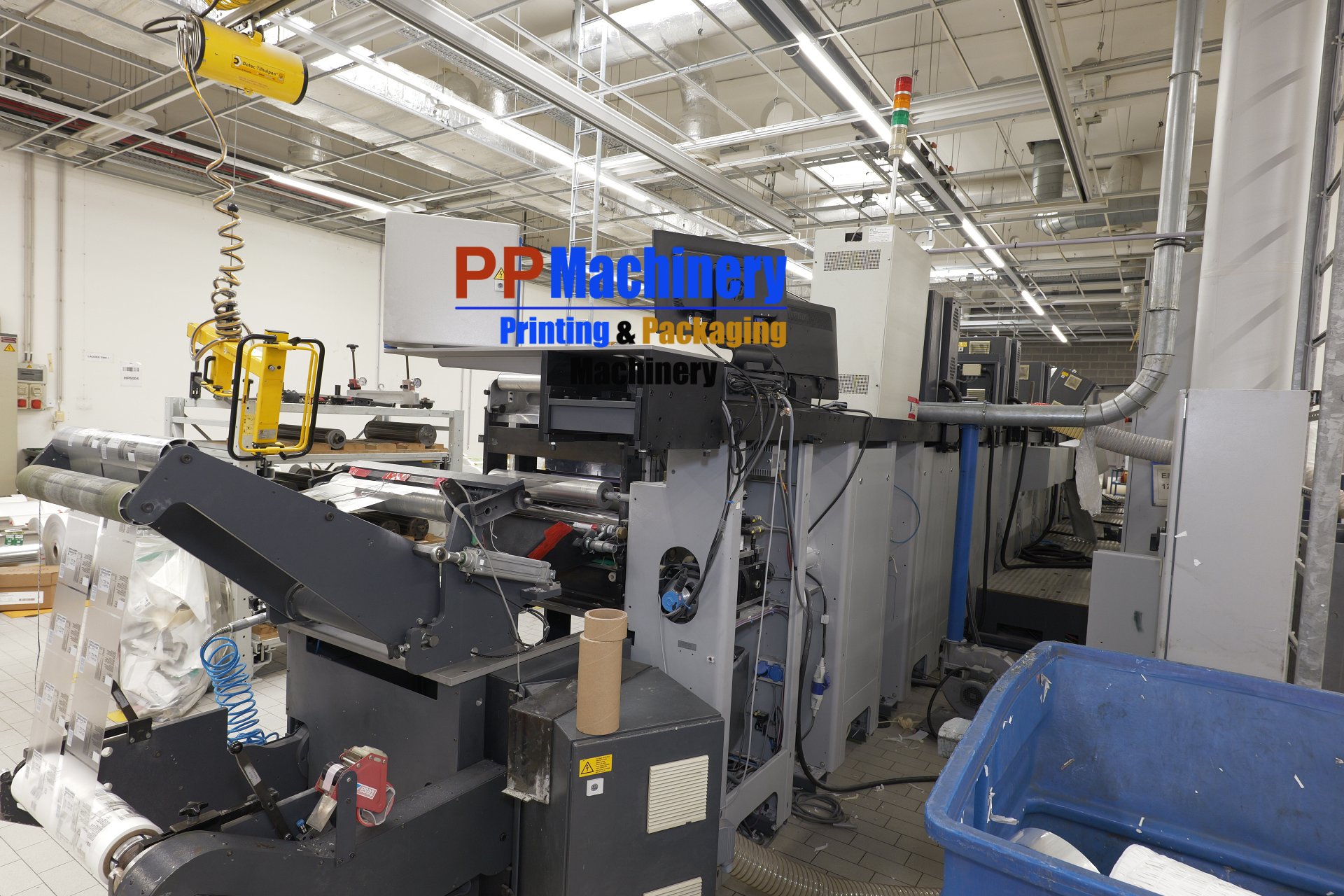

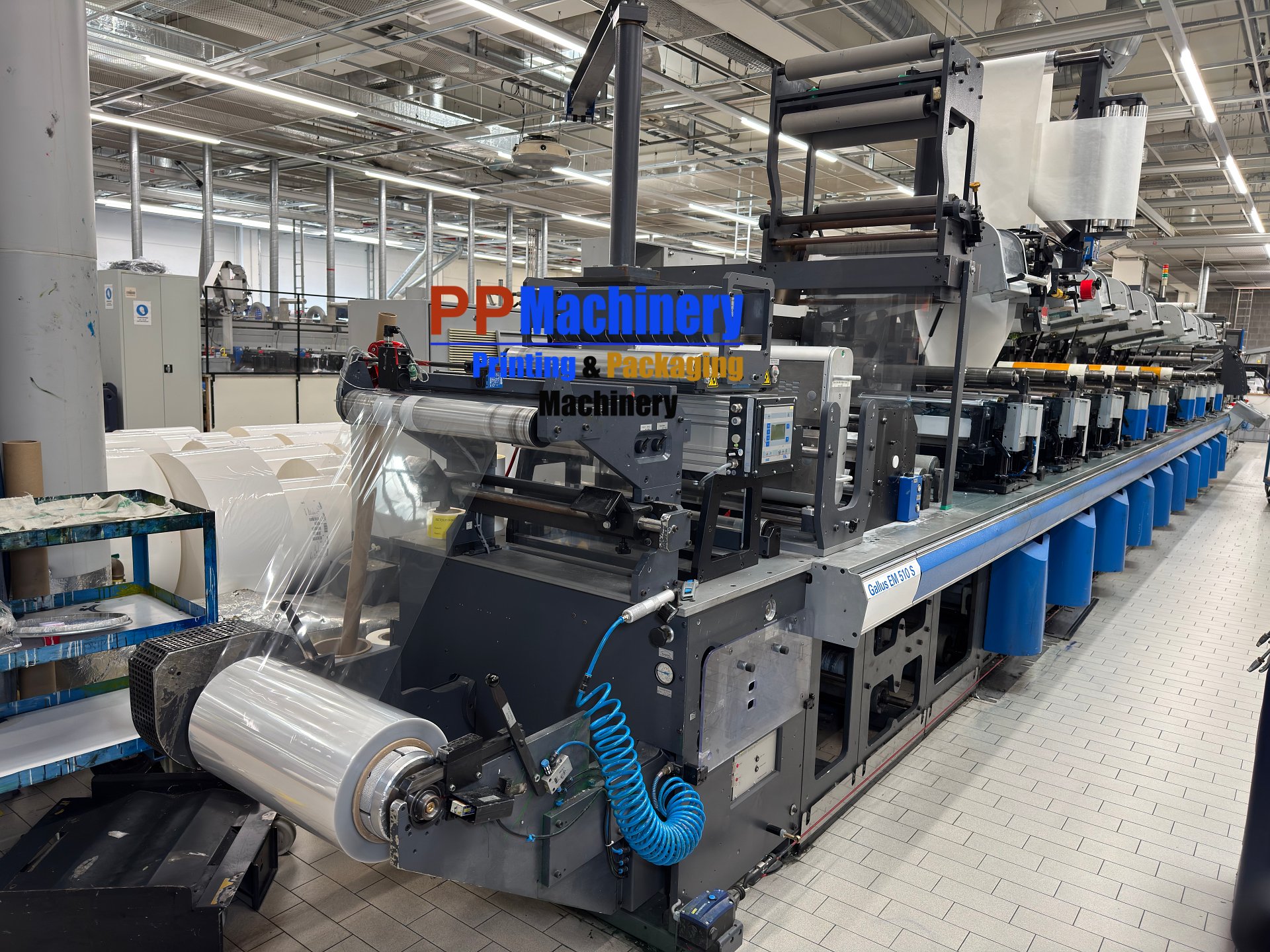

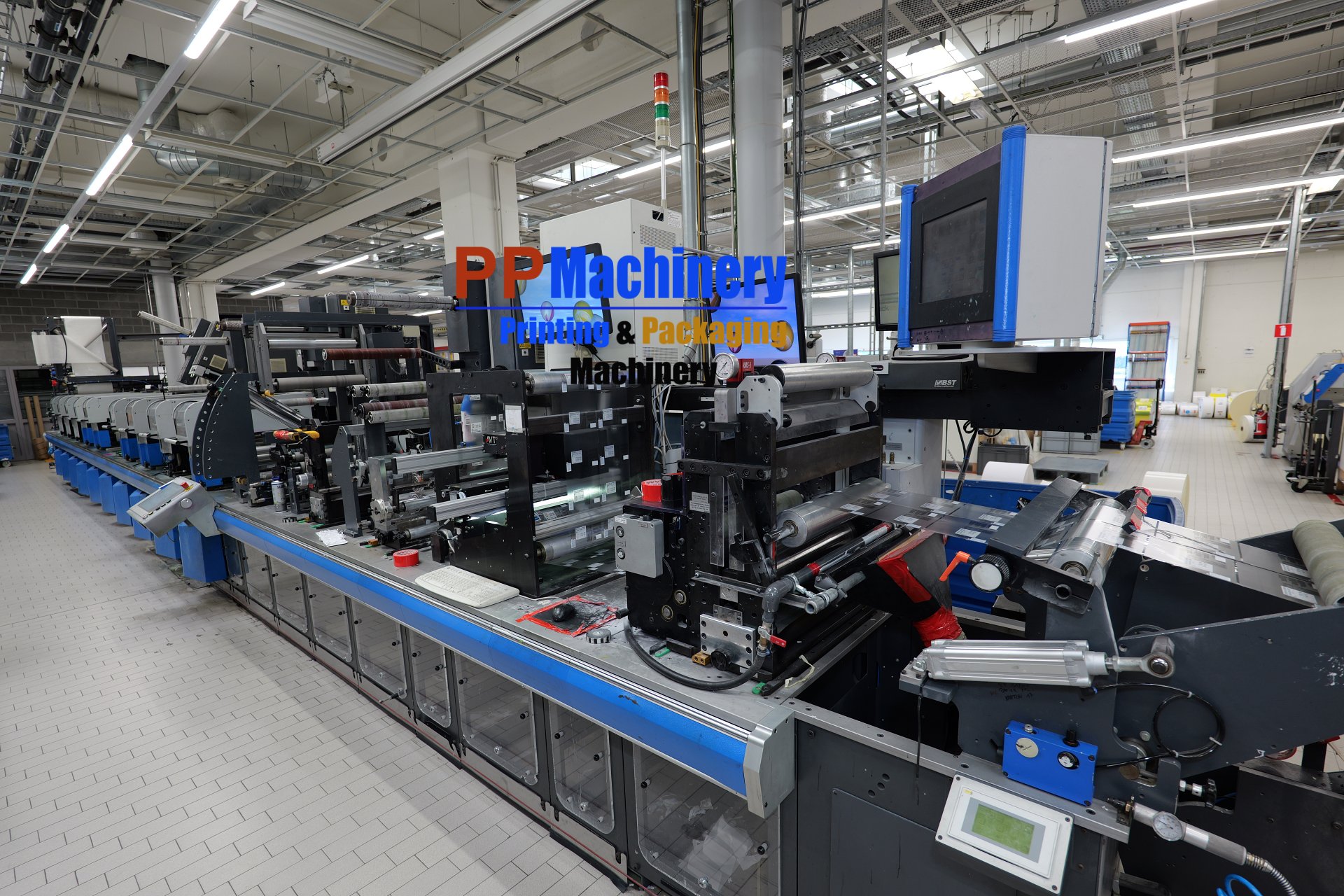

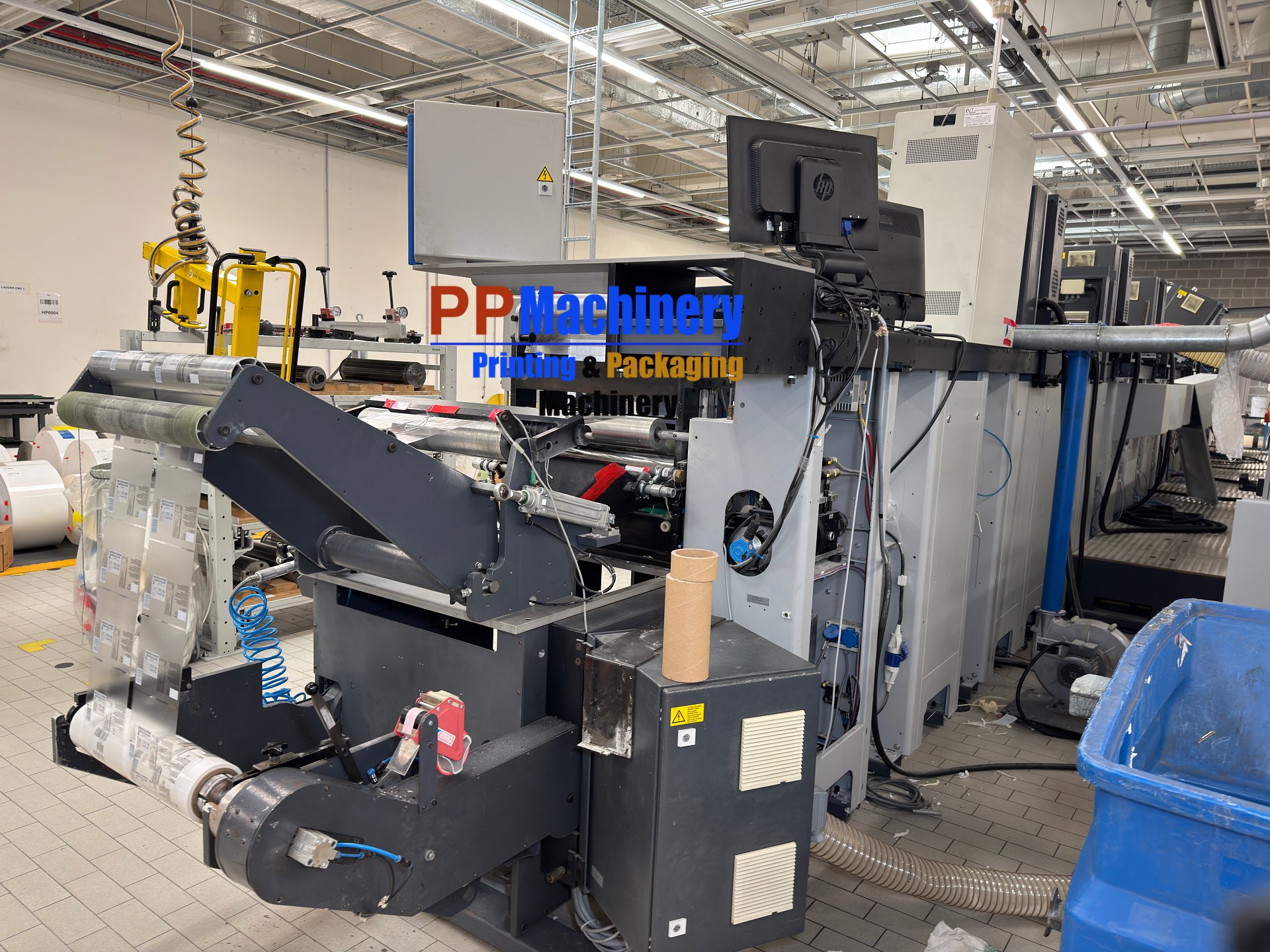

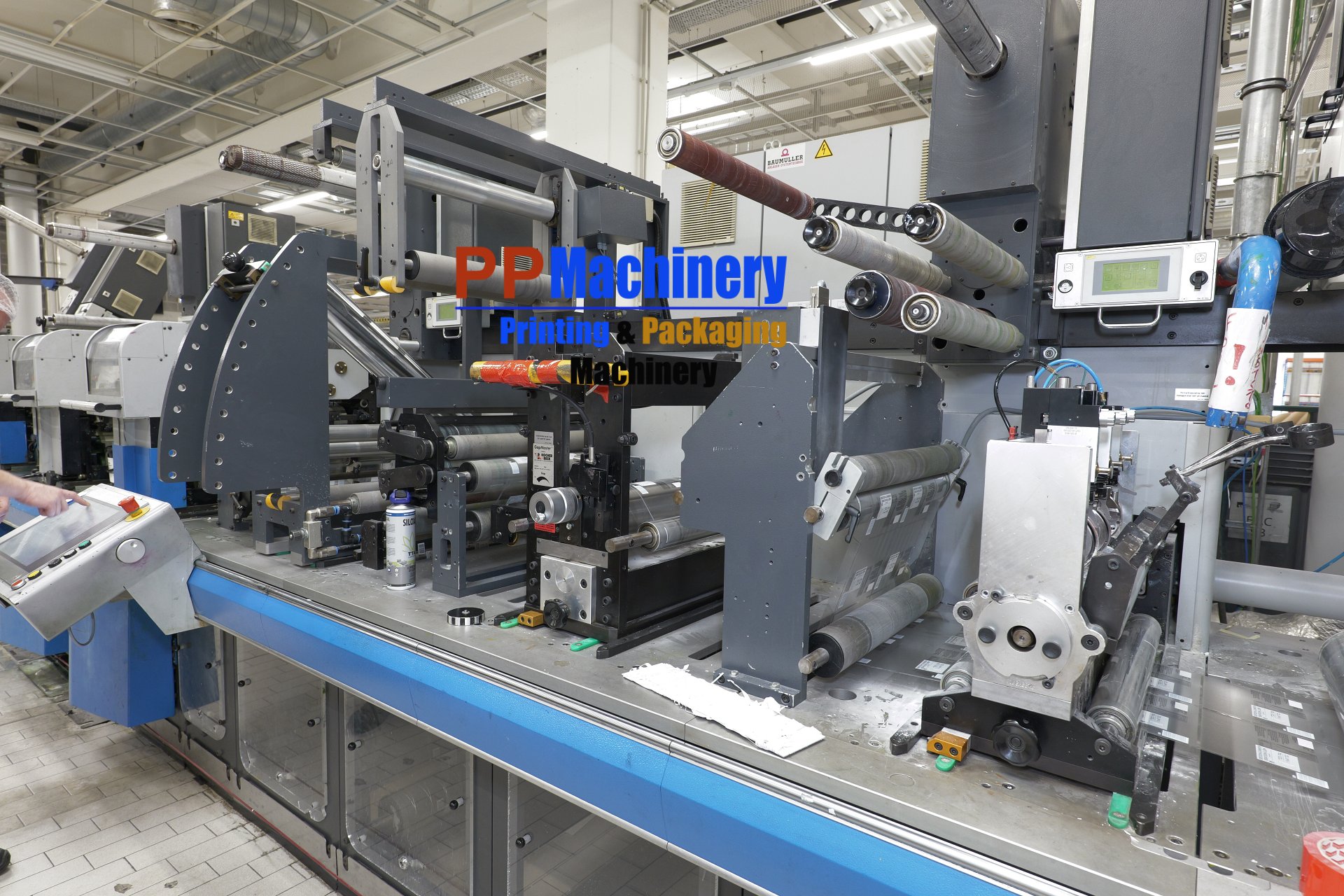

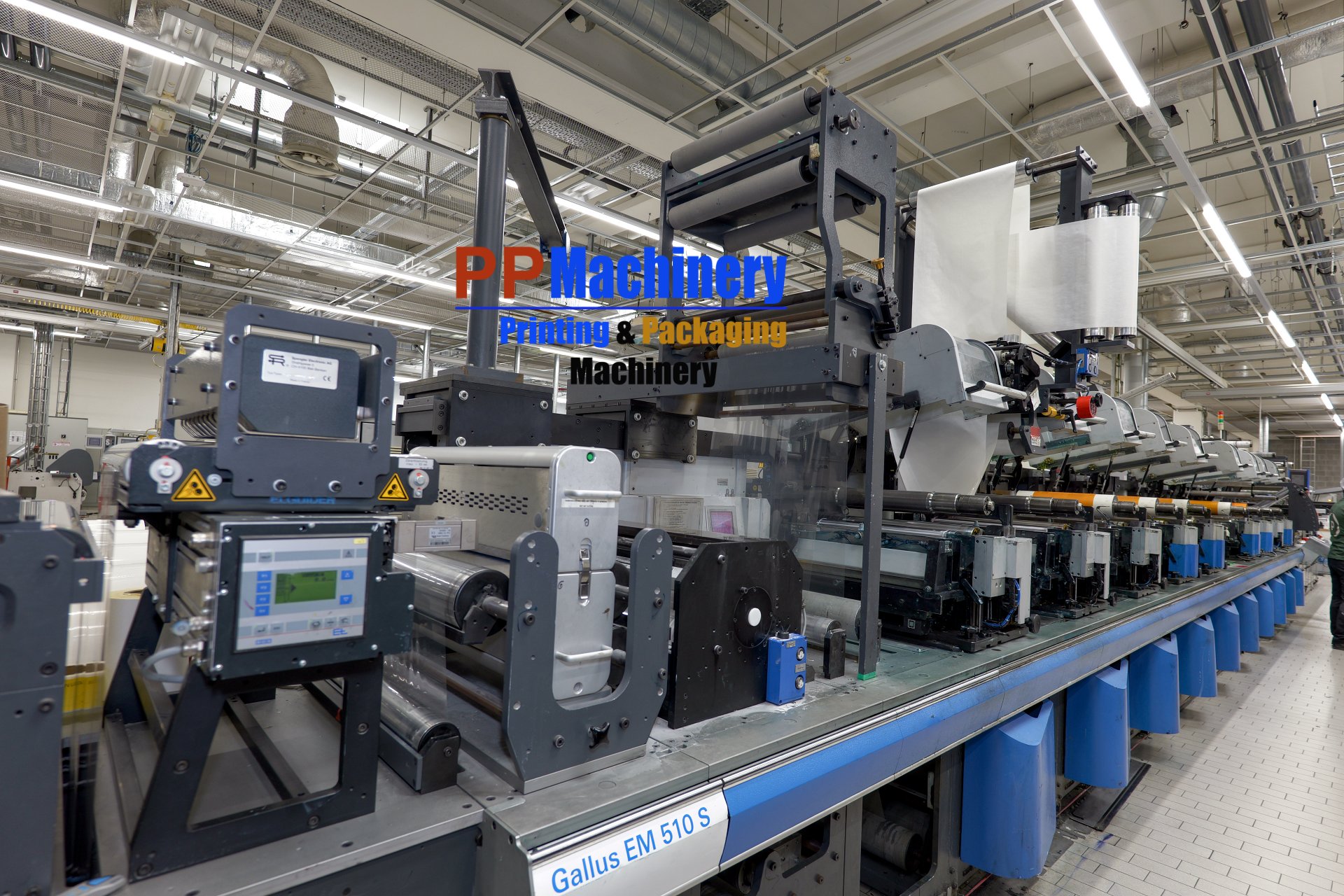

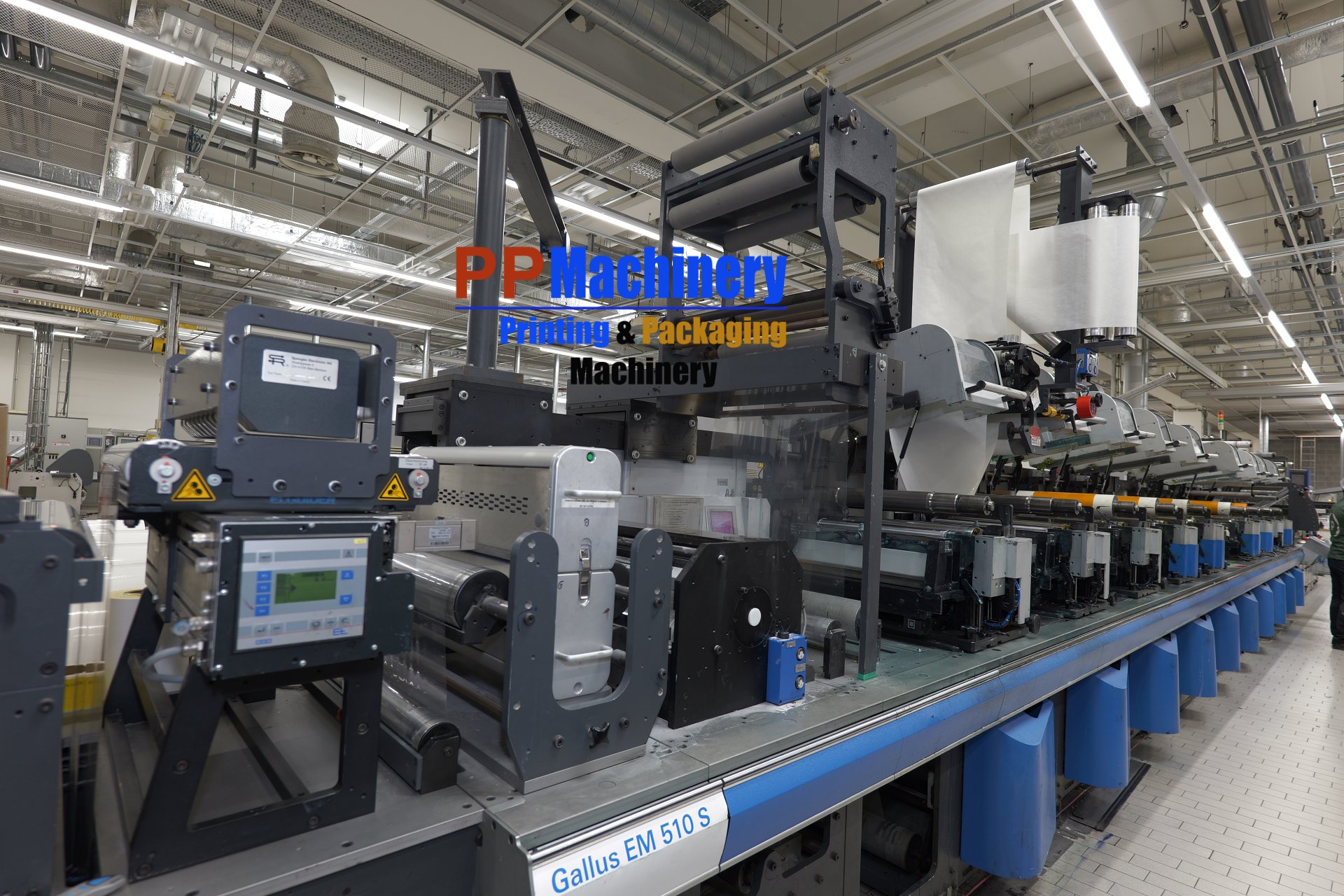

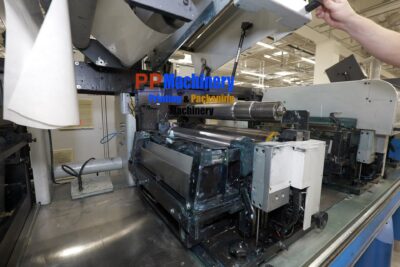

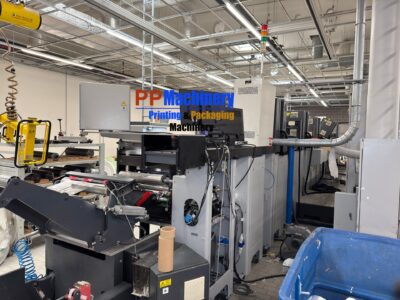

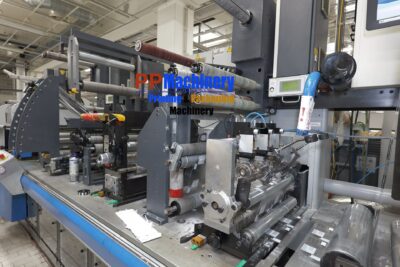

GALLUS EM 510 S Very nice 10 colours excellent condition and well equipped Flexo label printing press

Description

Gallus EMS 510 S

• Year of manufacture: 2009
• Print units: 10 flexo printing units
• Screen printing: 3 screen printing units
• Specialty units: 1 printing unit for tinting/solid coating
• Web handling: Rail-mounted turn bar with 5-color recto / 5-color verso capability
• Adhesive side printing: Capability for 2 colors on the adhesive side

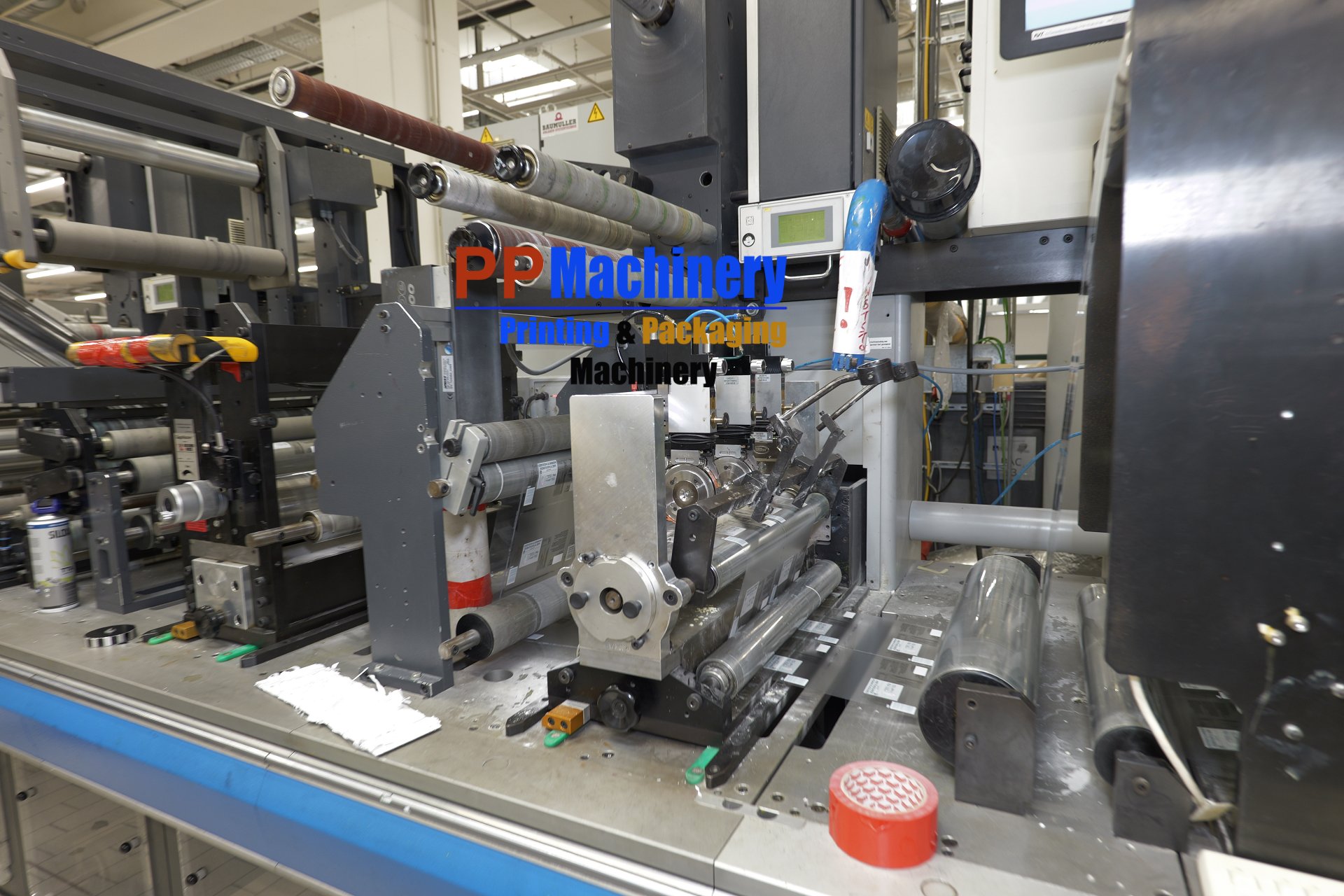

• Die-cutting: * 1 die-cutting unit equipped with Kocher+Beck GapMaster
  • 1 fixed additional die-cutting unit
  • 1 mobile die-cutting unit
• Finishing (Rail-mounted):
  • Rail-guided cold foil unit
  • Rail-guided lamination unit
• Drying & Curing: * UV drying system
  • Hot air drying unit

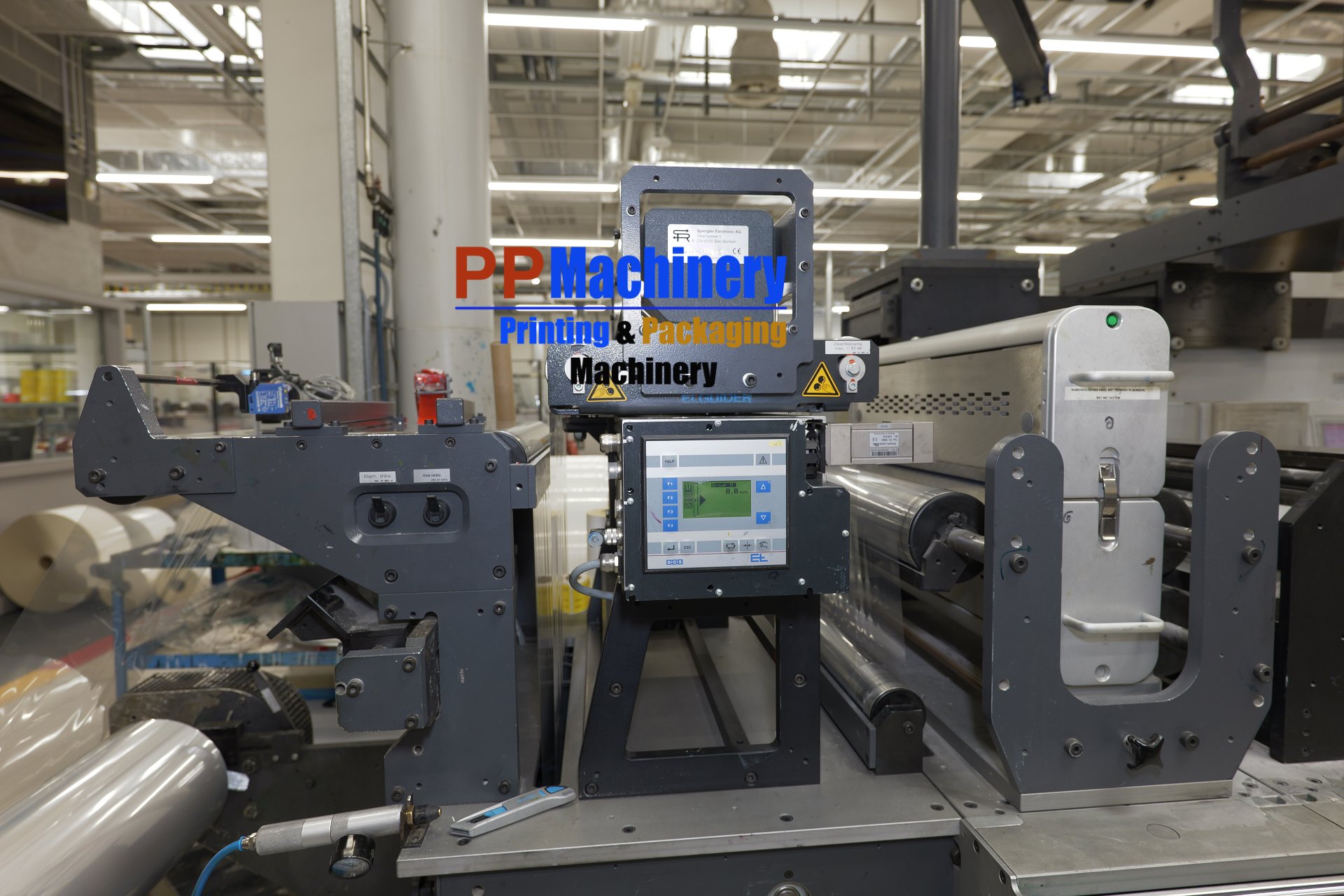

• Control Systems: * Sensotec register control
  • Erhardt+Leimer web guiding system
• Processing Units:
  • Tidland slitting unit
  • Teknek web cleaning system
  • Ionization (Static elimination)
  • Web break detection
  • Corona treatment unit

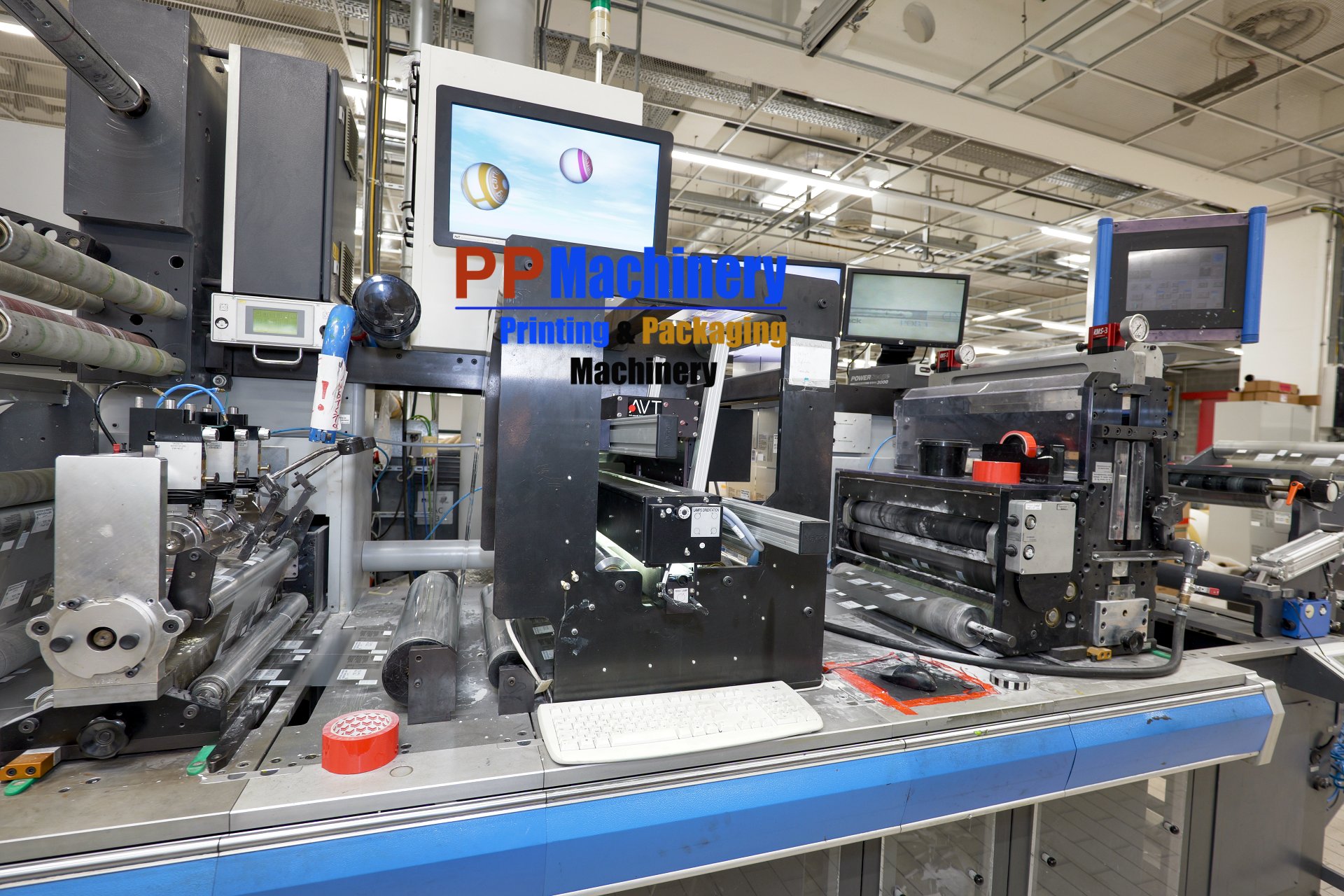

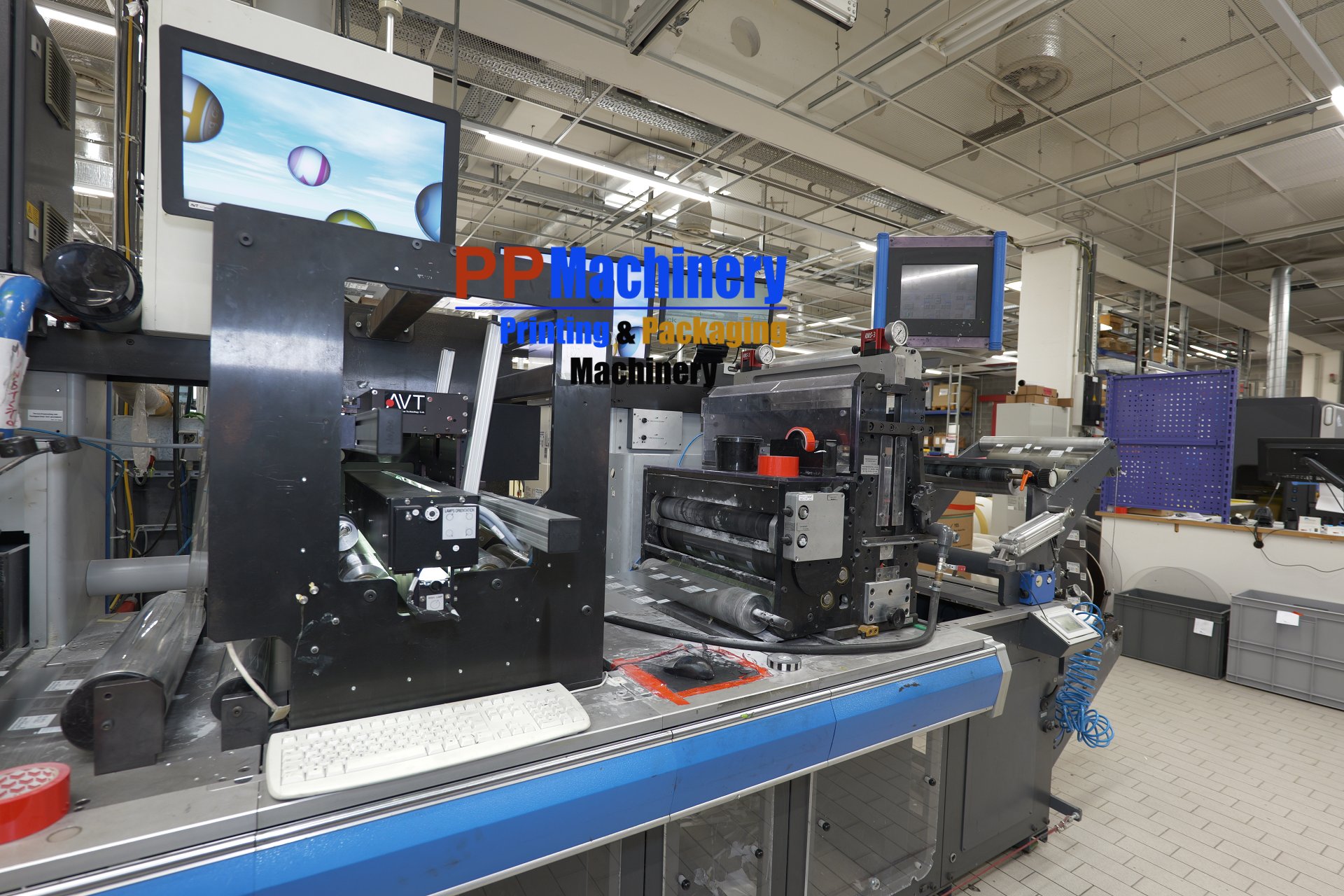

• Inspection: AVT Helios 660 inspection system
• Output:
  • Web shifting device
  • Product output via conveyor belt (sheeter)

SPECS:

Key Specifications (Gallus EM 510 S)
Max Web Width: 516 mm (20 5/16”)
Min Web Width: 254 mm (10”)
Max Printing/Processing Width: 510 mm (20”)
Max Roll Diameter: 1,520 mm (60”)
Flexo/Screen Print Repeat Range: 304.8 mm (12”) to 660.4 mm (26”)
Rotary Processing Repeat: 381 mm (15”) to 609.6 mm (24”)
Register Accuracy (Print to Print): +/- 0.1 mm (0.004”)
Electrical Requirements: 440 Volts / 3 Phase / 50-60 Hz / 500 Amps
Machine System Control: Central control concept with advanced servo drives (retrofitting available) Drive Technology:        Full Servo Direct Drive (gearless)
