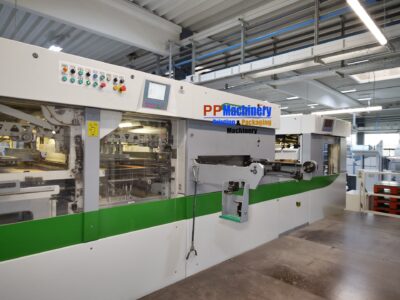

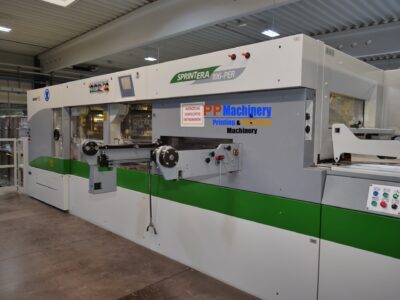

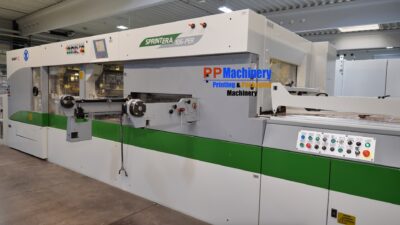

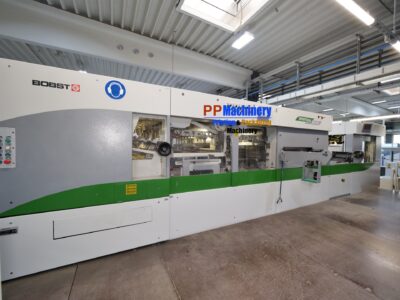

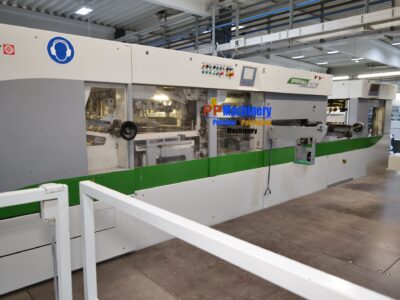

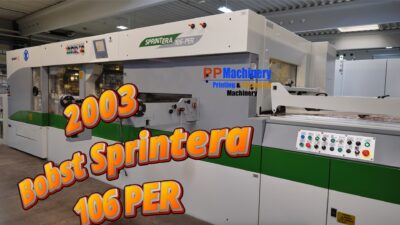

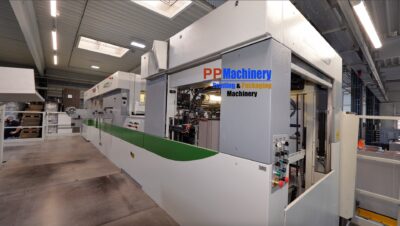

BOBST SPRINTERA 106 PER automatic die cutter with power register
BOBST SPRINTERA 106 PER automatic die cutter with power register
Very nice automatic die cutter with stripping and blanking

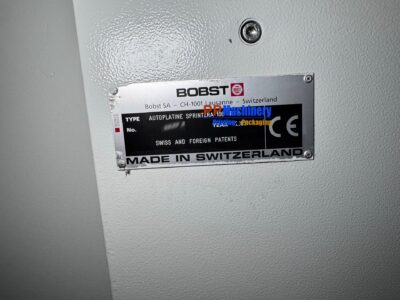

Manufacturer: BOBST S.A. SWITZERLAND
Year of manufacturing: 2003
Type: Sprinthera 106 PER
BOBST SPRINTERA 106-PER Flat Bed Die Cutter, 740 x 1060 mm
Last overhauling in 2023
The machine is in EXCELLENT condition, can be inspected in production at any time and is immediately available.
Description
BOBST SPRINTERA 106 PER automatic die cutter with power register
Very nice automatic die cutter with stripping and blanking
Manufacturer: BOBST S.A. SWITZERLAND
Year of manufacturing: 2003
Type: Sprinthera 106 PER
BOBST SPRINTERA 106-PER Flat Bed Die Cutter, 740 x 1060 mm
Last overhauling in 2023
The machine is in EXCELLENT condition, can be inspected in production at any time and is immediately available.
Machine Specs:
NON Stop Feeder with automatic lateral shifting of the pile tray
Feeder with POWER REGISTER, double sheet control and automatic tension control and sheet guide

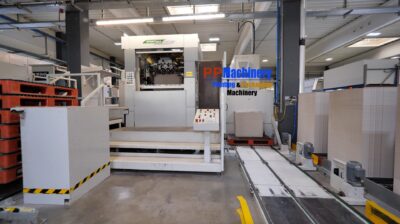

Krifft & Zipsner Pallet Infeed System
Die Cutting Unit with Centerline System
2 Stripping Stations with Bernoulli System
Blank Pile Delivery with automatic pallet changing device
Technical Details:
Materials:
Paper min. 70 g/m2
Board up to 2000 g/m2
Corrugated board, up to 4 mm
Max. sheet size: 740mm x 1060mm / 29″ x 41.75″
Min. sheet size: 350mm x 400mm / 350mm x 400mm / 14″ x 15.75″
Max. mechanical speed: 12000 s/h
Cutting force up to 2.6 MN
Max. pile height feeder and delivery: 1700 mm / 67″
Main motor power: max. 22 kW
Total connected load: max. 63 kVA
Krifft & Zipsner logistic installation, new hydraulic pump and change of all worn out parts.
Machine is available immediately
