Astronova Trojan T3 OP Digital Overprinting for boxes and bags – Direct-to-Package Solution

Description

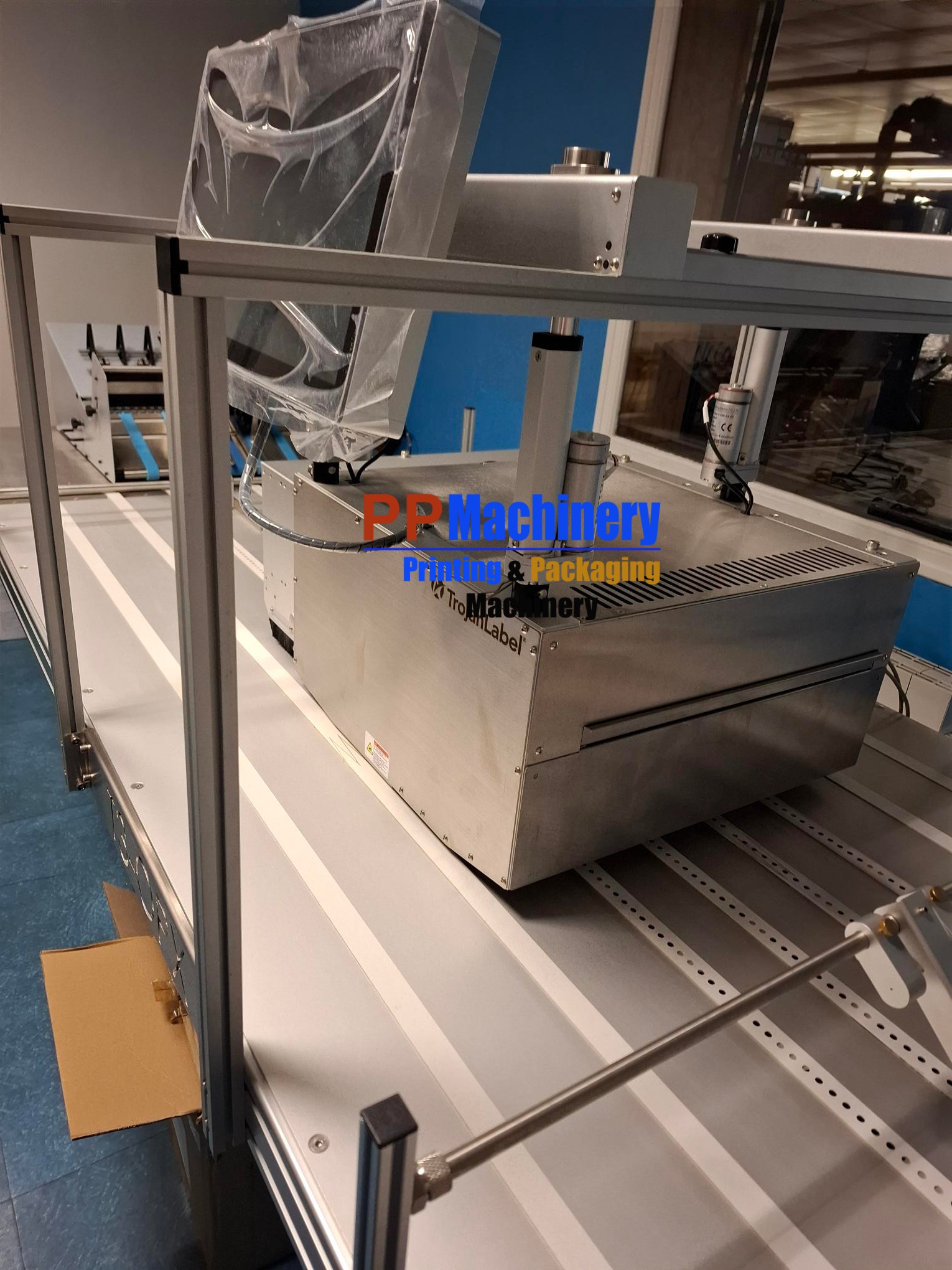

Astronova Trojan T3-OPX Direct-to-Package Printing

Operation:

• Ink Type: Pigmented ink, 4 Individual CMYK cartridges
• Print resolution: 1200 x 1200 dpi
• Print speed: Up to 18 ips (27m/min)
• Print Area: Width: 11.7” (297mm)
• Media Sensors: Optical TOF sensor, adjustable position, pressure sensor for height control
• Connectivity: 802.3 LAN (10/100/1000) Ethernet port
• Software: TrojanControl Software RIP

Environmental & Physical:

• Printer operation: Operation 15° to 30° C (59° to 86° F); Transport –40° to 60° C (–40° to 140° F); Relative humidity 20 to 80%; Altitude 0 to 3048 m
• Power requirements: TBD
• Power consumption: TBD
• Print unit dimensions: Width 518 mm, Length 516 mm, Height 290 mm (excluding height adjustable bracket)
• Media cleaning unit dimensions: Width 457.5 mm, Length 154 mm, Height tbd
• Touchscreen: 15.6”
• Print unit weight: 20 kg
• Media cleaning unit weight: 3.5 kg

Supplies:

• Ink Cartridges: CMYK pigmented; C: 238 ml, M: 233 ml, Y: 225 ml, K: 498 ml; ISO pages: K: 20.000 pages, CMY: 16.000 pages
• Maintenance: Replaceable service tray
• Ink Type: Pigmented aqueous inks
• Average drop volume: 10 pl K, 8.5 pl CMY

Material:

• Types: Uncoated Paper, Card board, paper board
• Width: Depends on transport/installation, 600mm (Trojan standard table), 1000mm (Trojan wide table)
• Length: 35.5”
• Thickness: 0 – 100mm (automatic height calibration)

MailTable Standard (MT1):

• Speed: Up to 18 ips (27m/min)
• Power requirements: 100-240V AC – 50/60 Hz, 2.5A power supply)
• Dimensions: Width: 1026 mm (incl Emergency step), Length: 1507 mm, Height: From 892 mm to 595 mm
• Support material width: 600 mm
• Weight: Tbd
• Suction: 5 fans adjustable speeds
• Belts: 6

MailTable Wide (MT2):

• Speed: Up to 18 ips (27m/min)
• Power requirements: 100-240V AC – 50/60 Hz, 2.5A power supply)
• Dimensions: Width: 1026 mm (incl Emergency step), Length: 2007 mm, Height: From 890 mm to 590 mm (5 positions)
• Support material width: 1000 mm
• Weight: Tbd
• Suction: 5 fans adjustable speeds
• Belts: 8
