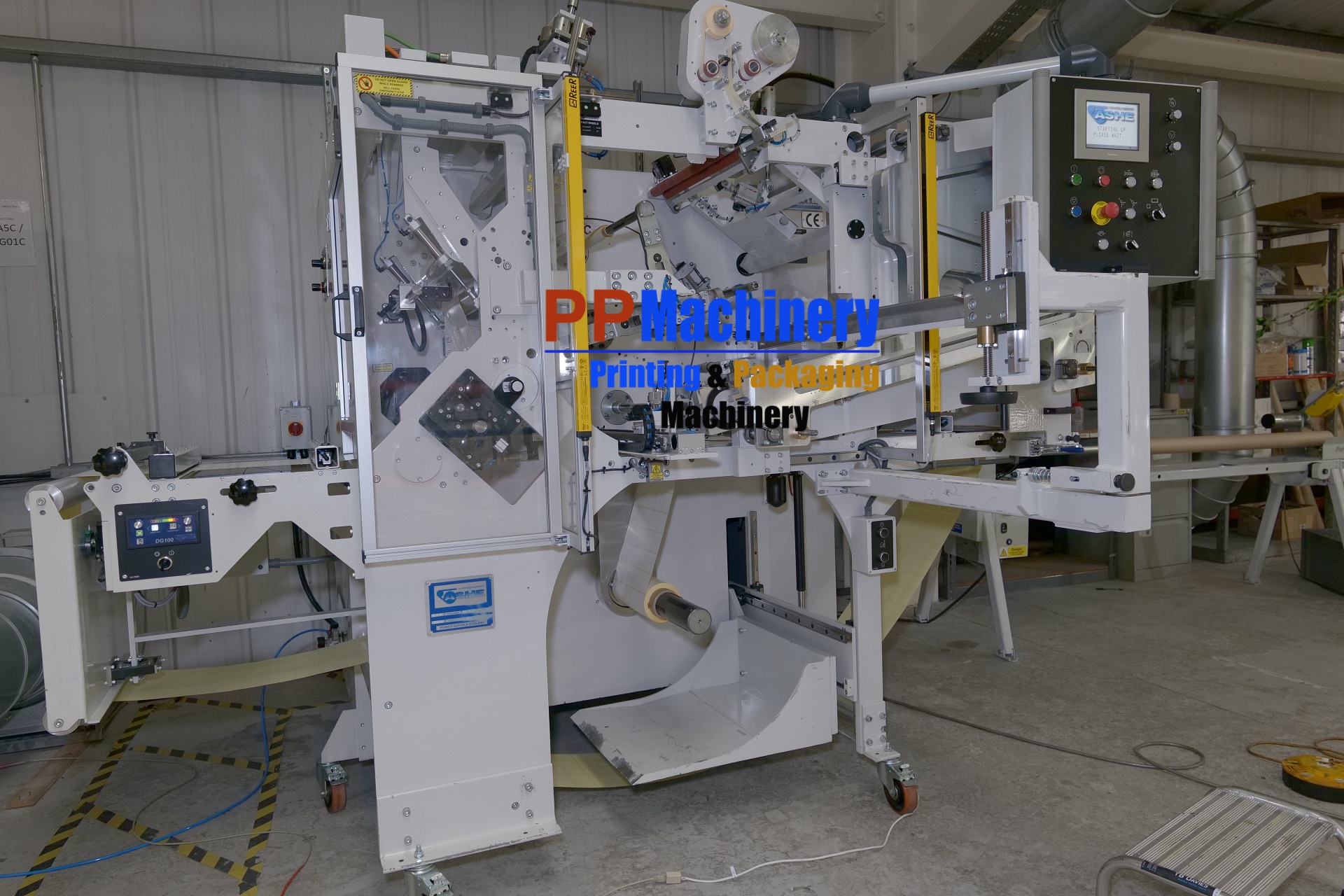

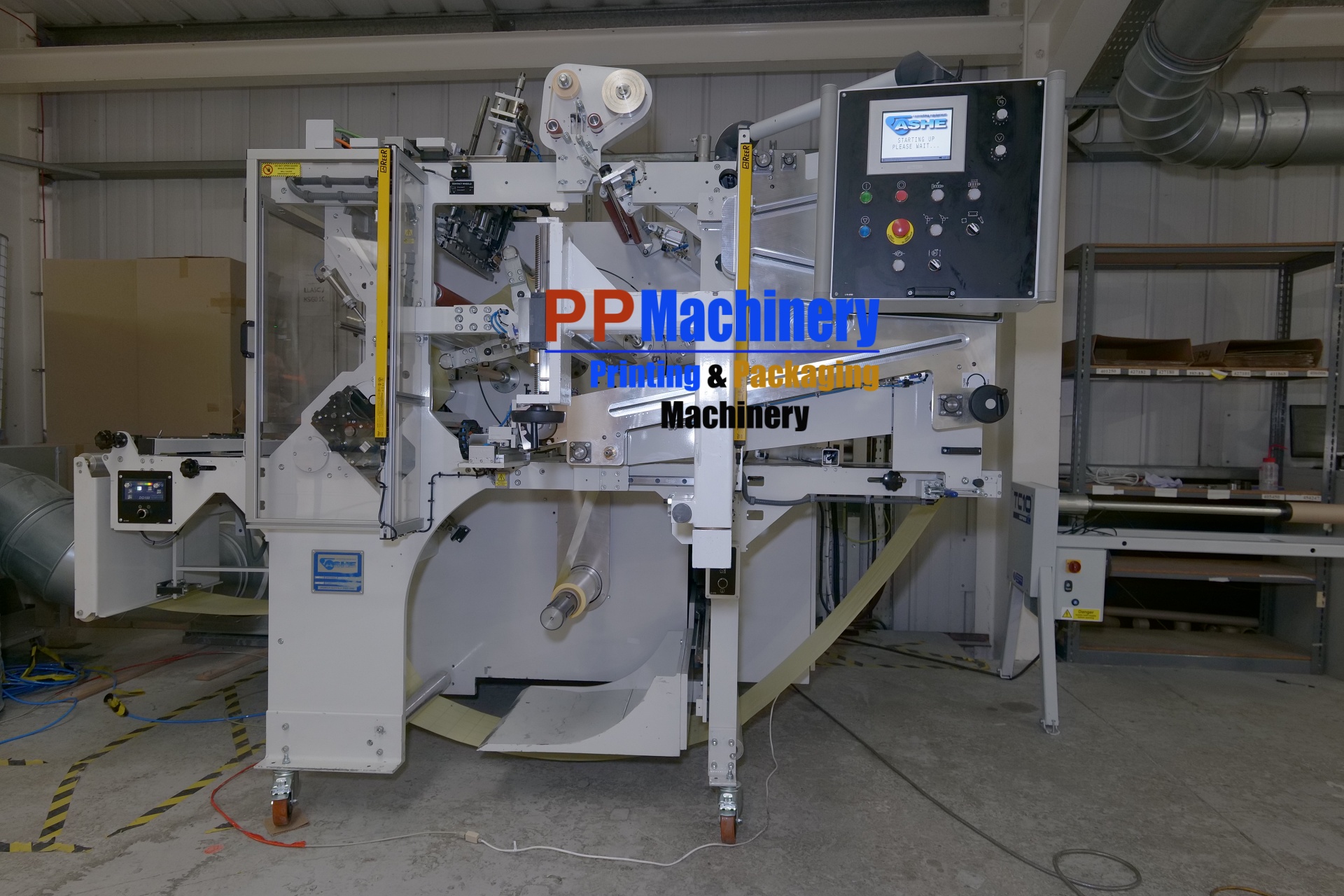

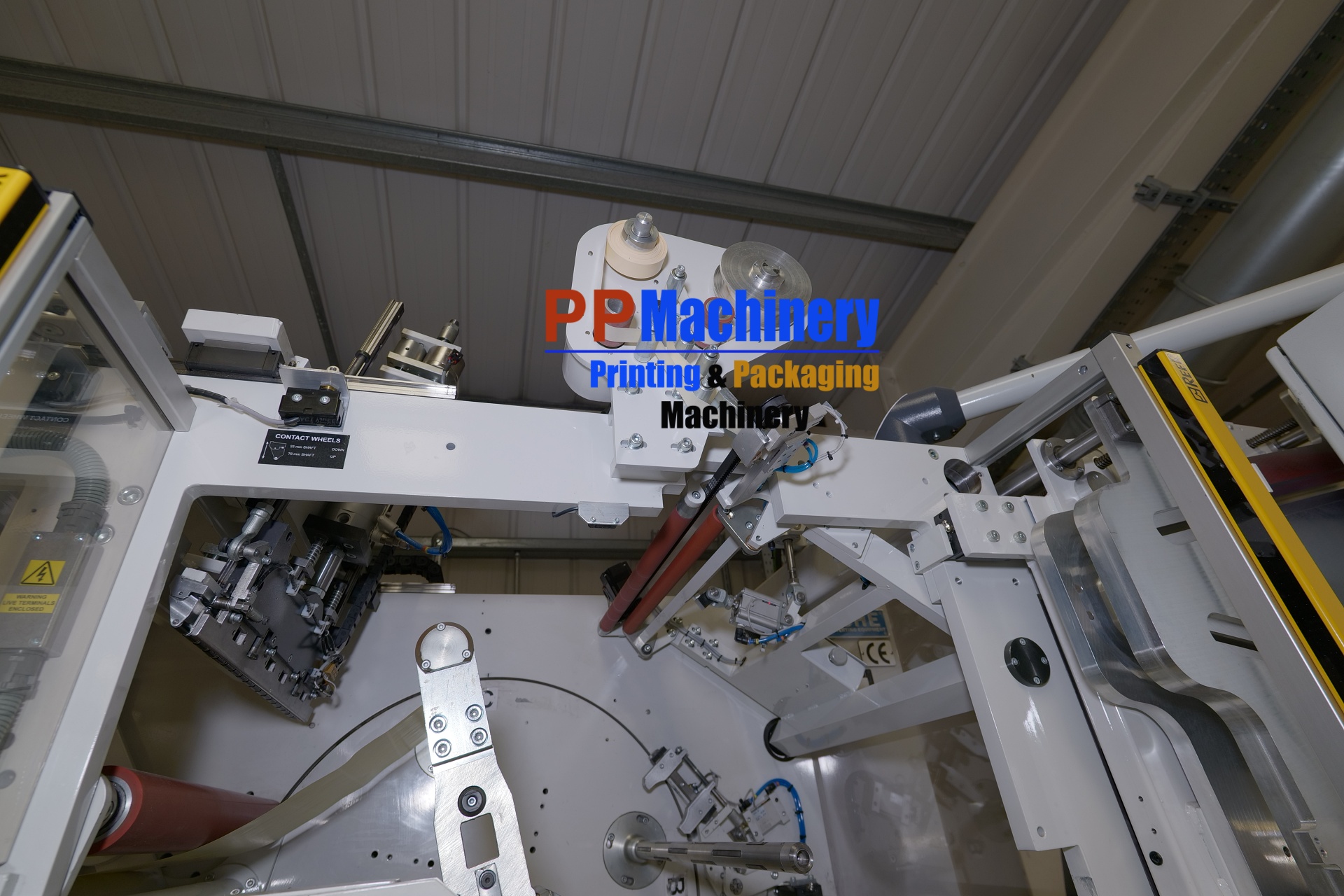

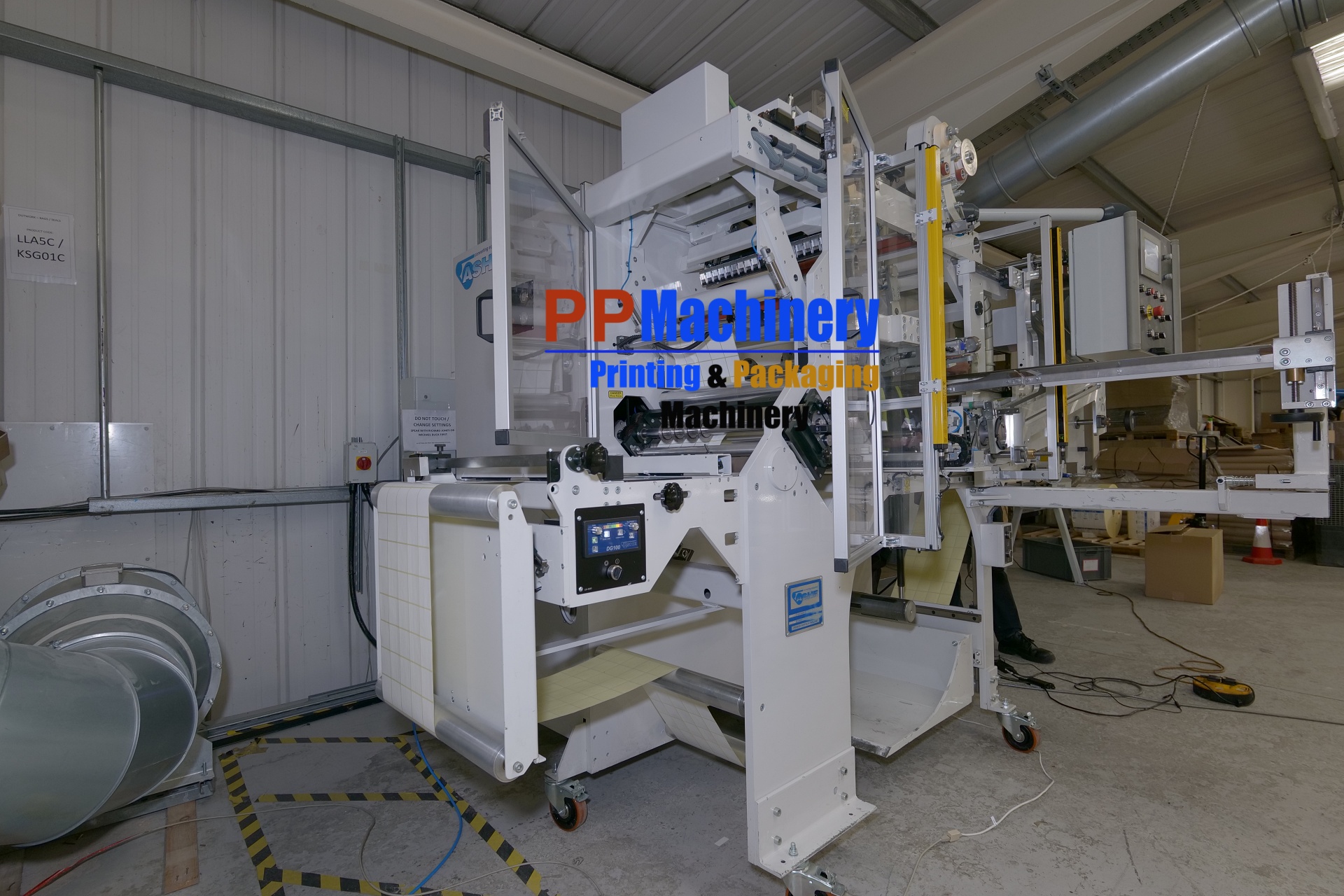

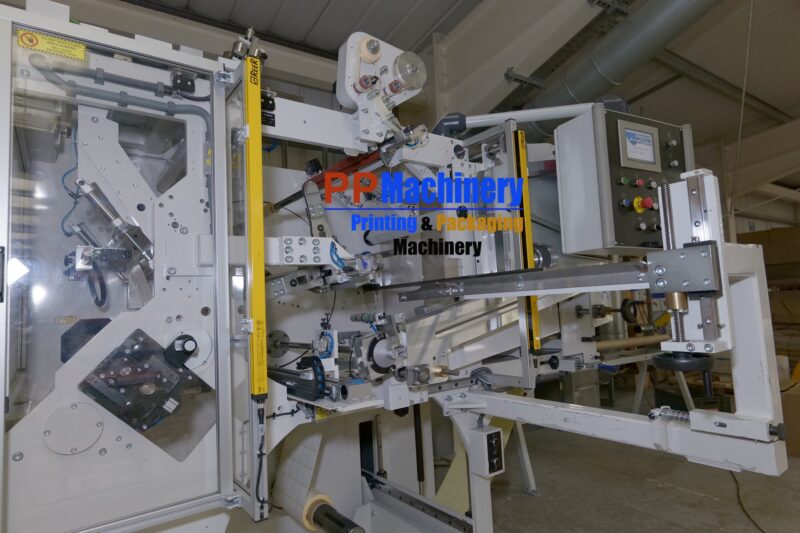

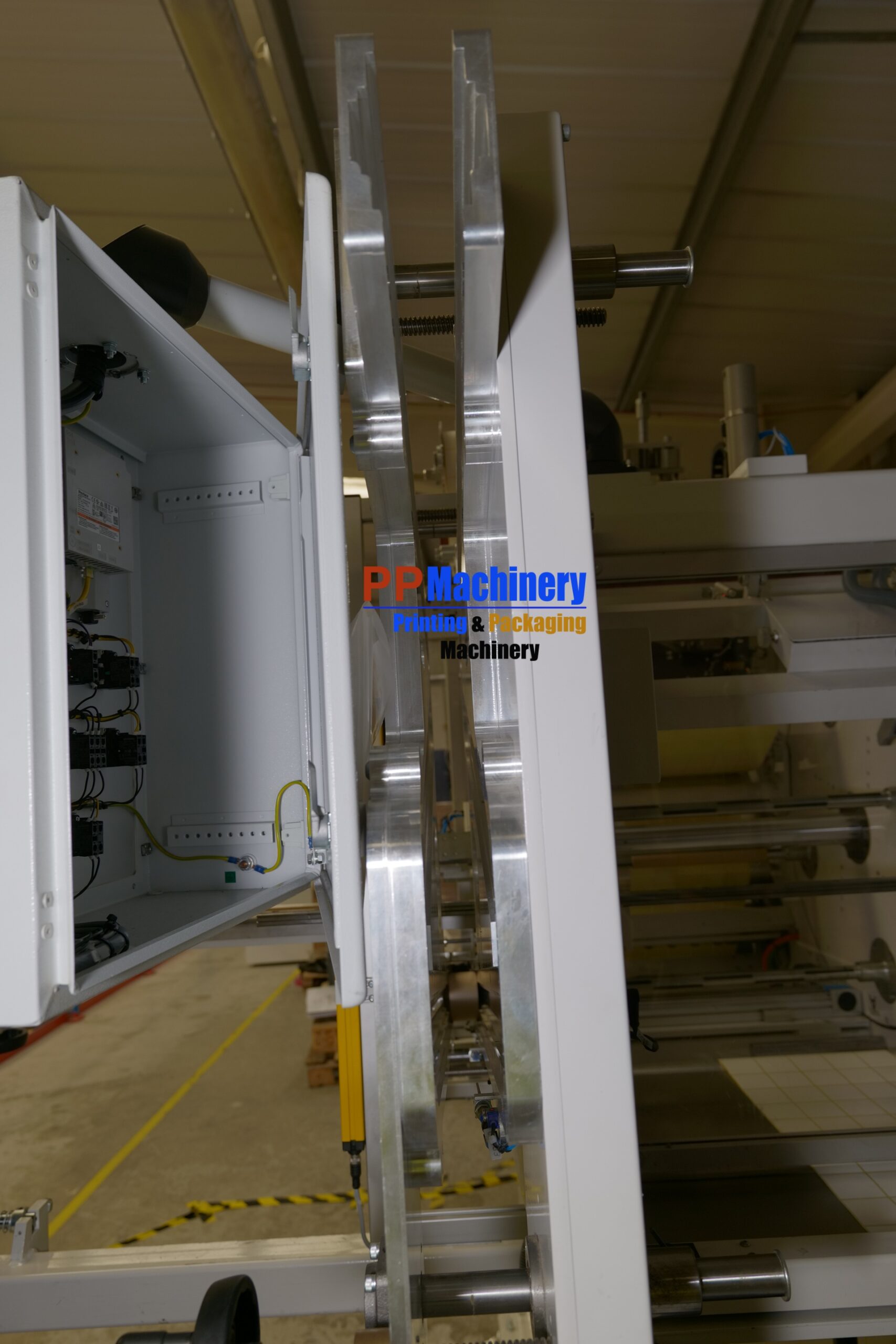

ASHE OPAL 4 520mm/ 20 inch glueless turret rewinder
ASHE OPAL 4 520mm 4 SPINDLE TURRET LABEL SLITTER REWINDER

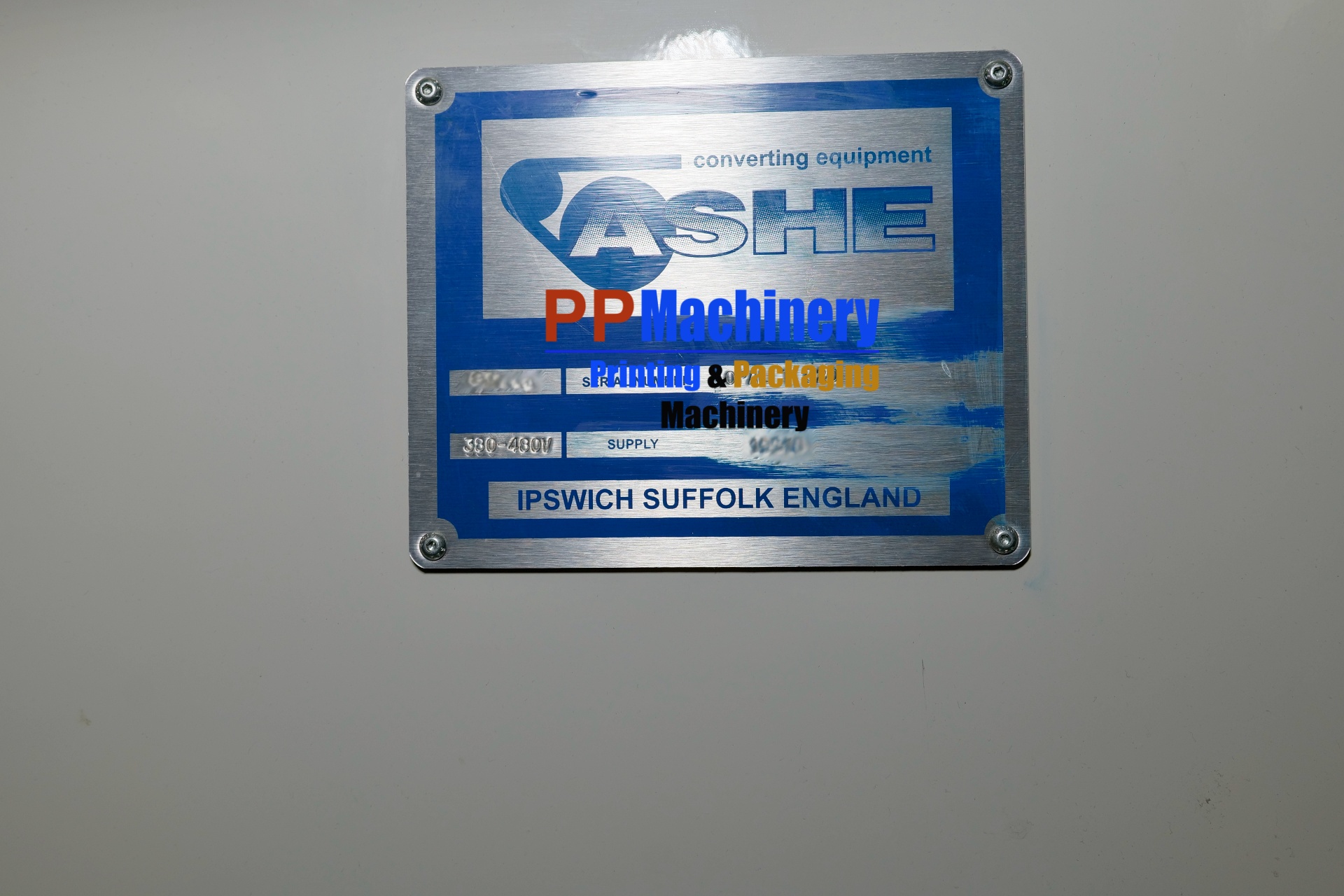

Manufacturer: ASHE Converting Equipment
Type: Opal 4
Year of production: 2020
Material maximum width: 520mm
Material to be run: Die cut self-adhesive LABELS
Unwind core i/d: 3”
Slitting facilities: Driven Rotary shear slitting
Minimum slit width: 20mm
Tolerance: 0 to 0.38mm
Rewind: 4 positioned turret
Rewind start I/D: 25mm, 40mm and 76mm
Maximum rewind dia: 16” in 4 spindle mode
Trim takeaway: N/A
Maximum machine speed: 250m/min
N.B. Machine speed is dependent upon material to be run, material quality finished reel profile and operator skills.
Cut and transfer: 100m/min (40mm and 76mm cores)
90m/min (25mm cores)

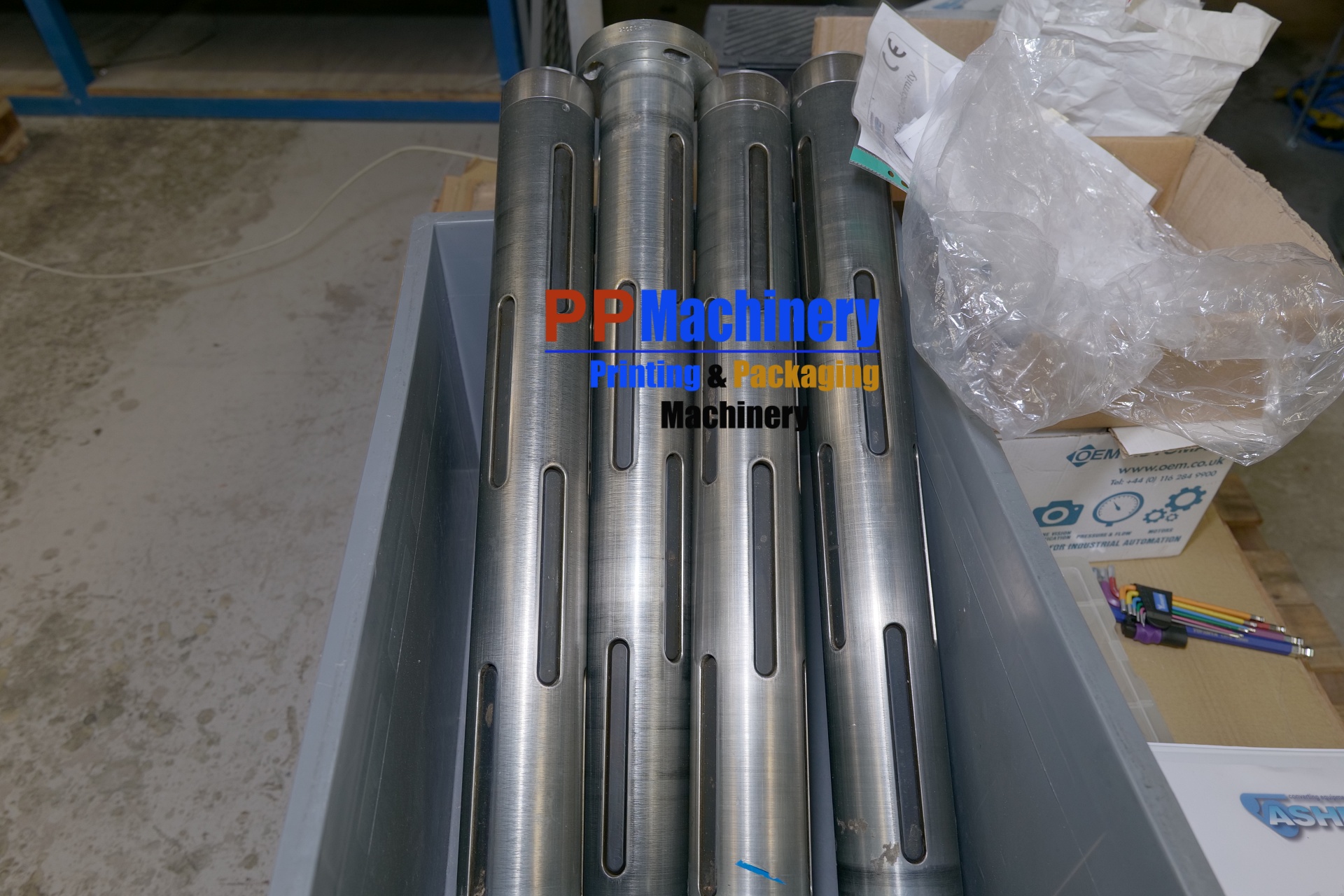

Rewind shafts : Lug-type air shafts, 4 x each core size listed
Minimum cycle time : 25 seconds (based on 5 x slit lanes across)
1 off Base 4 Spindle Opal 520 Turret with 800mm
unwind diameter including 3” airshaft and web guide
(off-line model)

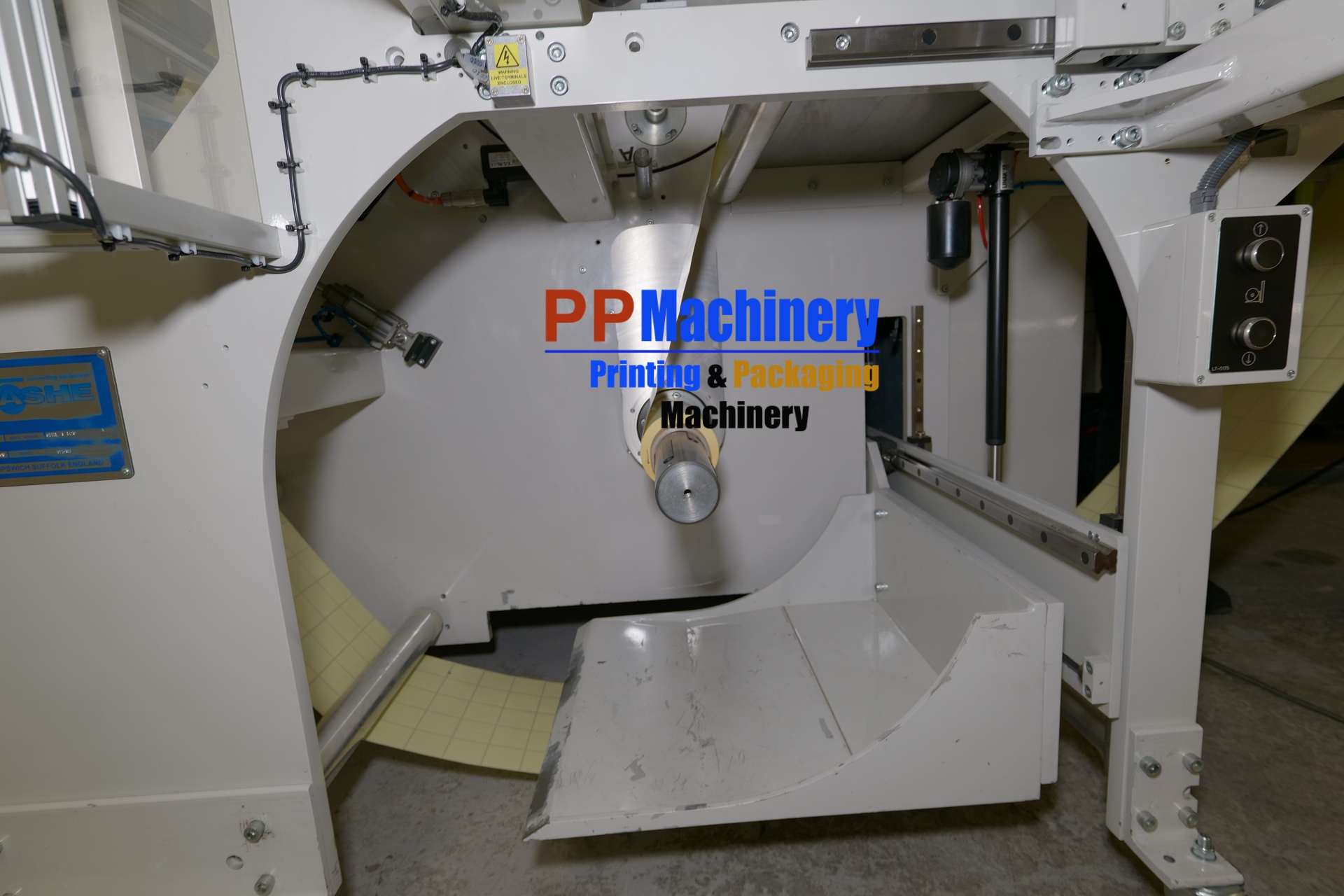

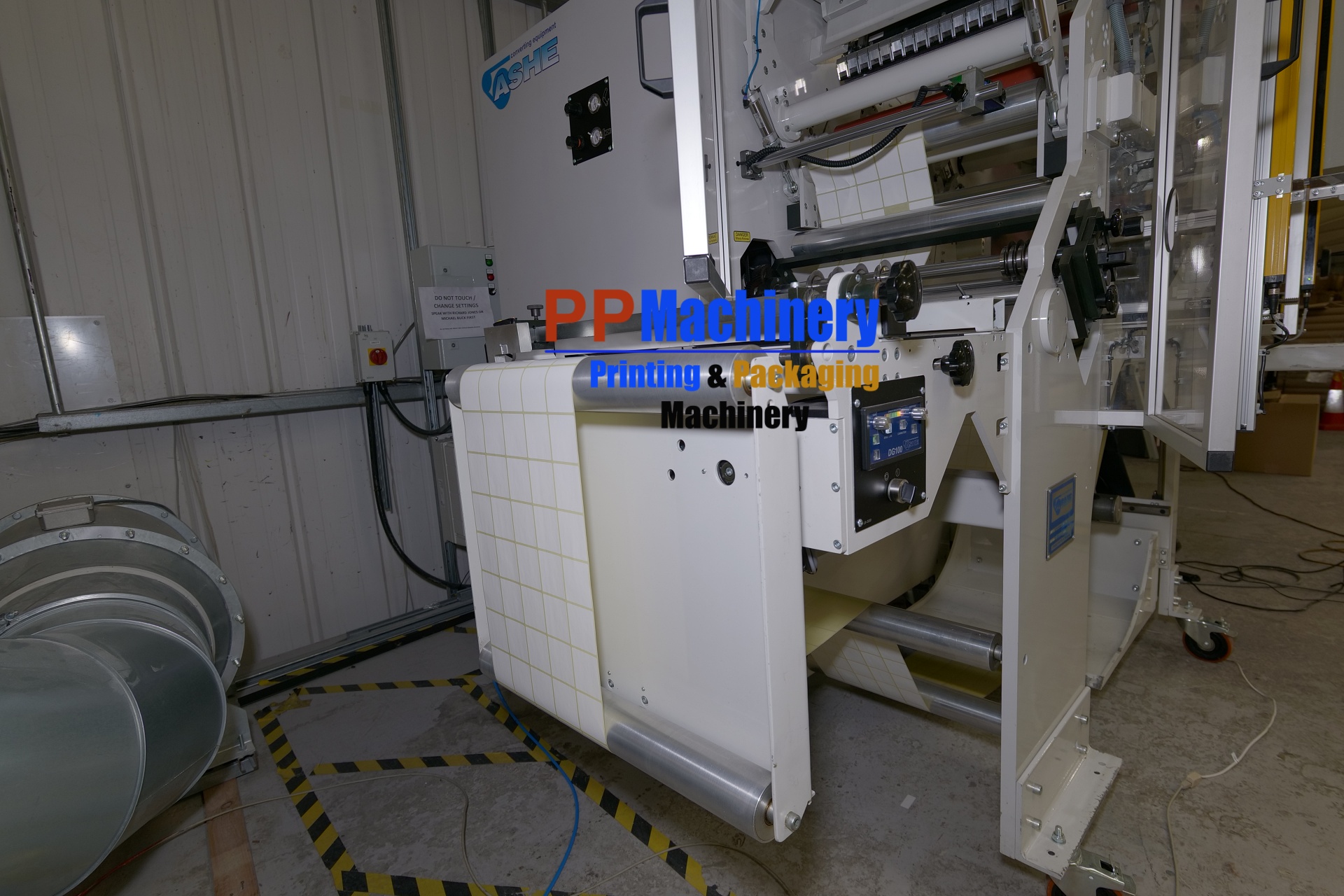

Motorised unwind reel lift

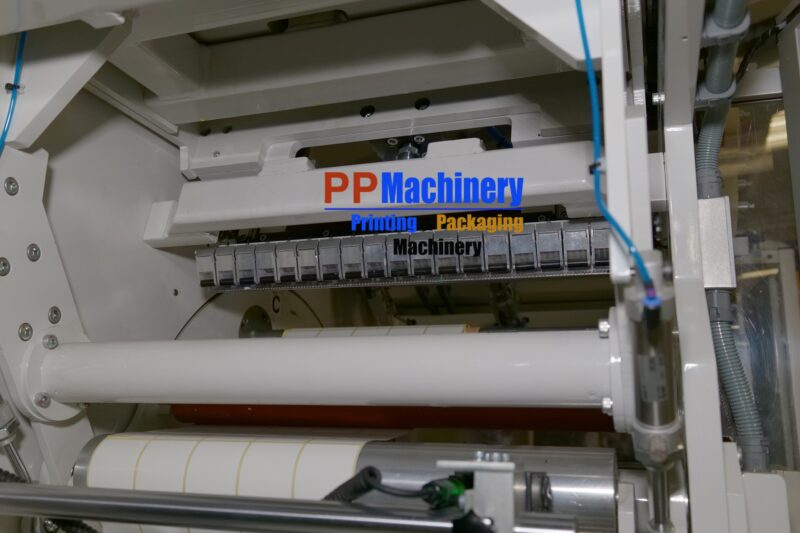

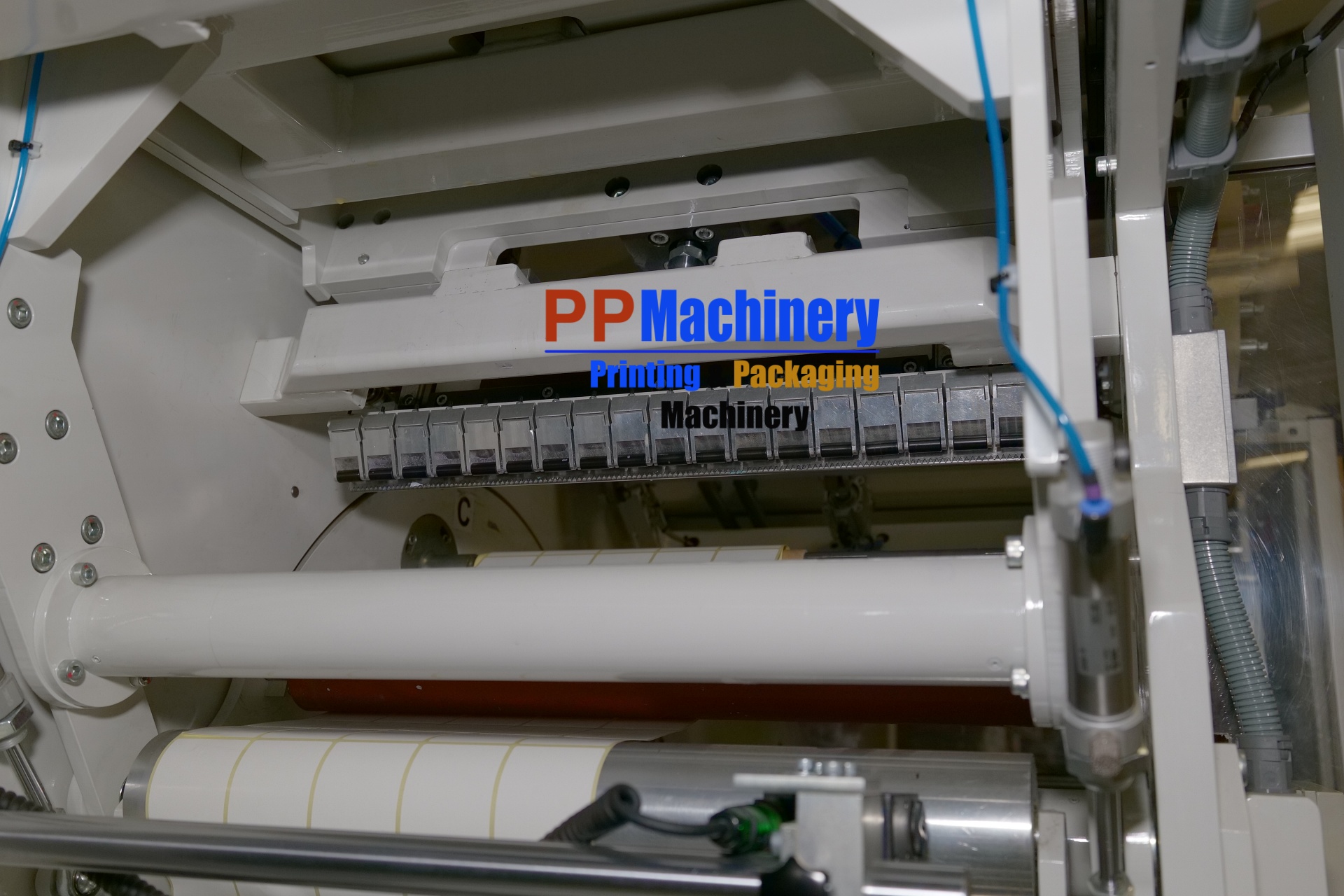

10 sets of rotary shear slitting knives
4 x 25mm rewind airshafts
4 x 76mm rewind airshafts
Glue-less cinch start facility

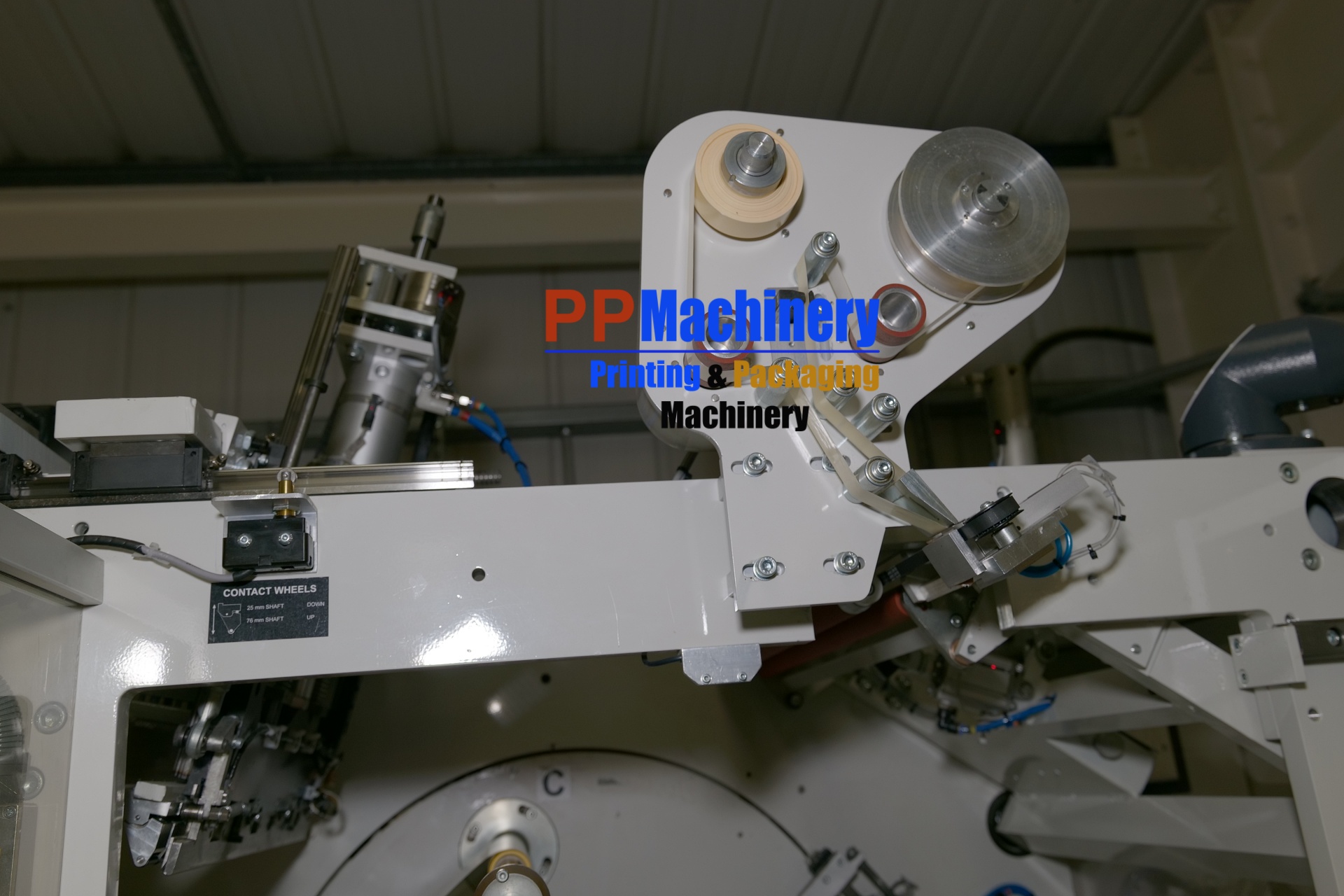

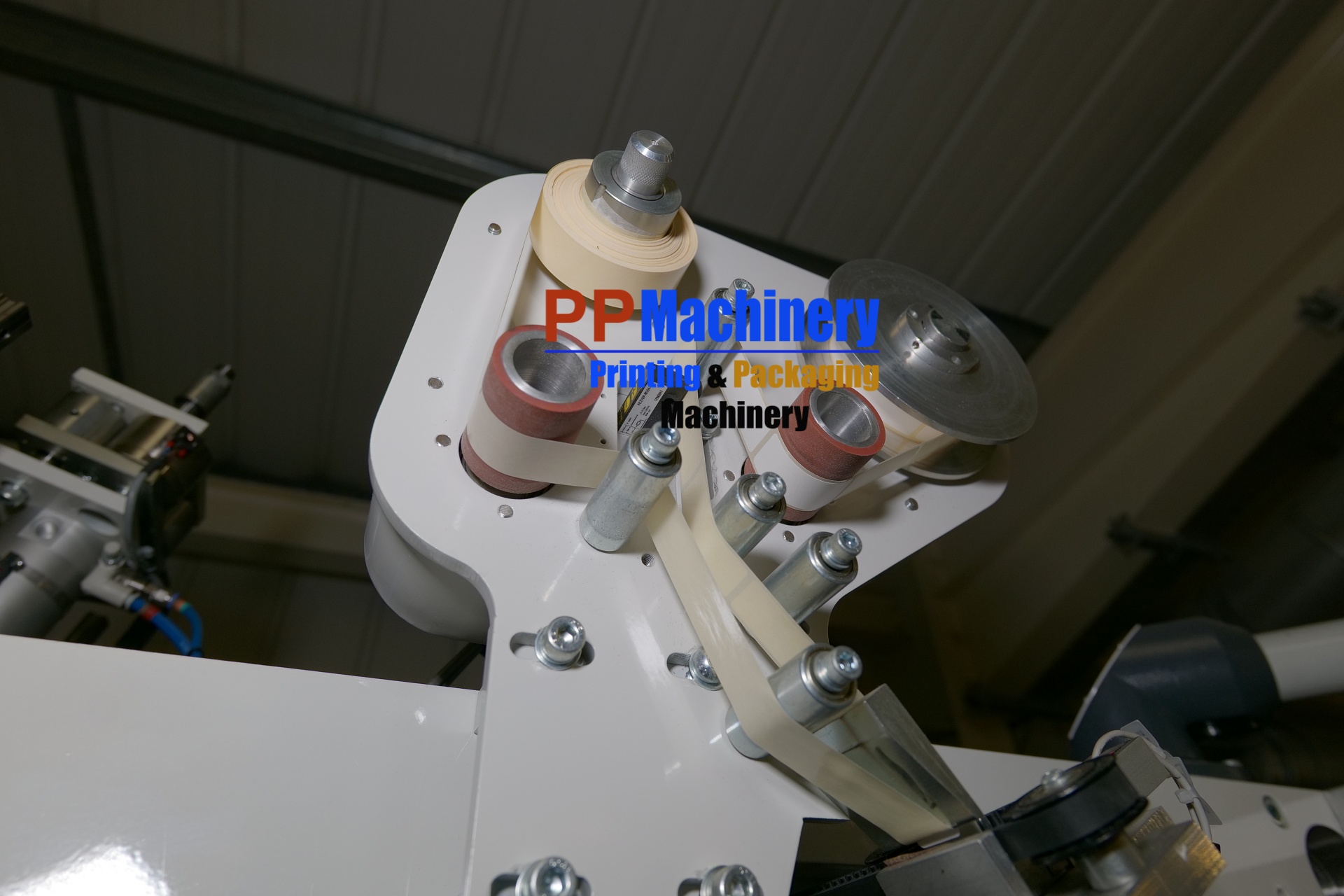

Label tail closure (standard system – no print)
Automatic core loader via chute system for
25mm, 40mm and 76mm ID cores (OD 31mm, 46mm, 82mm)
Additional Contrast sensor for cycle cut to mark feature
Rewind shaft support during turret cycle
Automatic rewind offload system to offload chute
Counter off during run facility via pushbutton
Modem link
