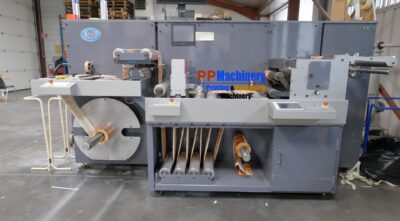

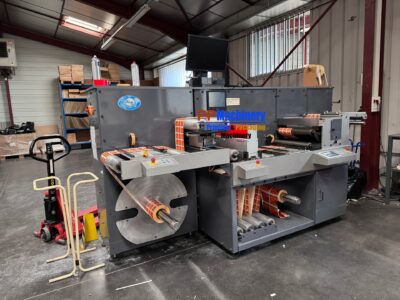

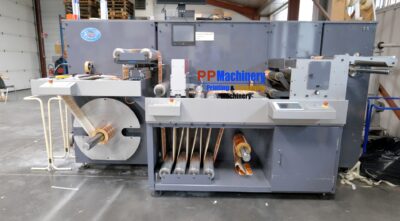

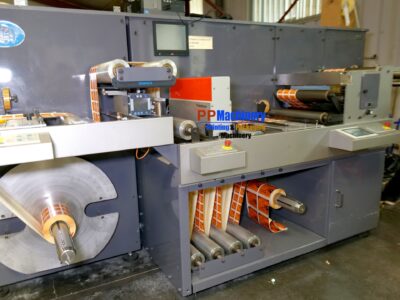

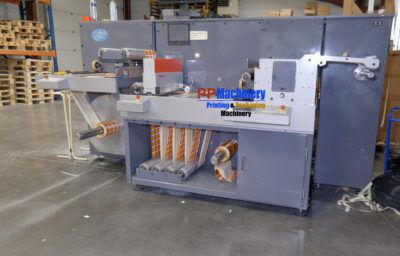

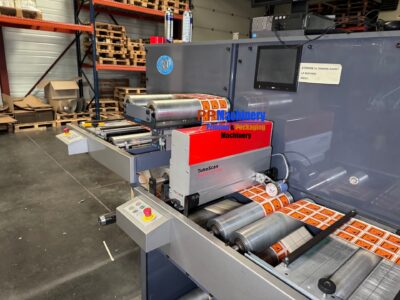

2014 SMAG SIRIUS SERVO Label Inspection Machine – Slitter Rewinder
2014 SMAG SIRIUS SERVO Label Inspection Machine – Slitter Rewinder
Manufacturer: SMAG GRAPHIQUE
Type: 825
Year of manufacturing: 2014
Web width: 420 mm
Machine Specifications:
Maximum web width: 420mm
Maximum unwind diameter: 850mm
Maximum upper rewind diameter: 450mm
Maximum bottom rewind diameter: option
Maximum number of slitting knives: 14 maxi
Minimum space between knives: 12mm
Power: 6 Kw-Tri 400
Compressed air: 6 bars – 2,5N, m³/h
Length/Width/Height: 3060 x 1242 x 1559mm
Weight: 750 Kg
Mechanical speed: 220m/mn
Machine is located in Western Europe
Please contact PP Machinery Team for more information or an inspection
Description
2014 SMAG SIRIUS SERVO Label Inspection Machine – Slitter Rewinder
Manufacturer: SMAG GRAPHIQUE
Type: 825
Year of manufacturing: 2014
Web width: 420 mm
Machine Specifications:
Maximum web width: 420mm
Maximum unwind diameter: 850mm
Maximum upper rewind diameter: 450mm
Maximum bottom rewind diameter: option
Maximum number of slitting knives: 14 maxi
Minimum space between knives: 12mm
Power: 6 Kw-Tri 400
Compressed air: 6 bars – 2,5N, m³/h
Length/Width/Height: 3060 x 1242 x 1559mm
Weight: 750 Kg
Mechanical speed: 220m/mn
Machine is located in Western Europe
Please contact PP Machinery Team for more information or an inspection
