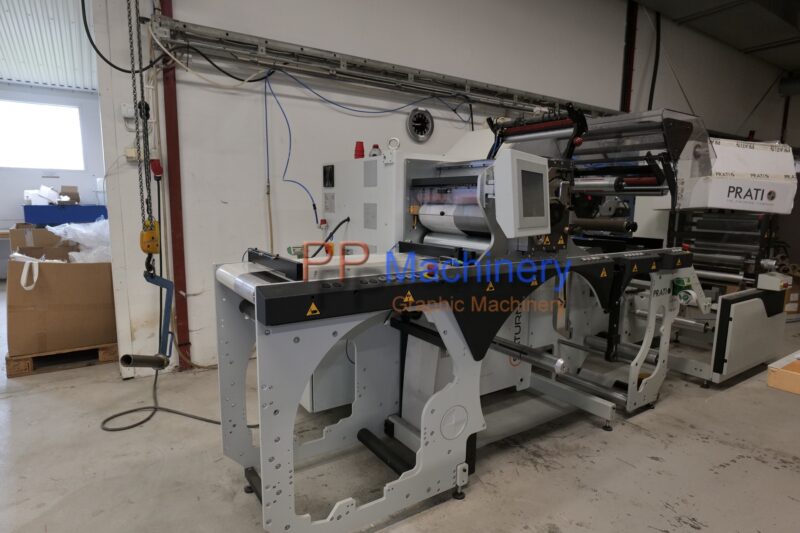

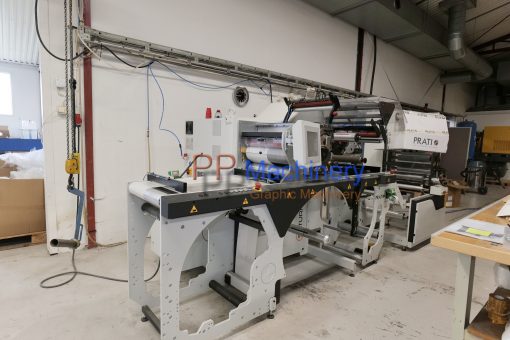

PRATI SATURN TE 370 Die cutter and Slitter Rewinder – Semi Automatic Turret Rewinder from 2019
BRAND NEW MACHINE
Unwinding on pneumatic fixed shaft diameter 76mm with servo motor
BST Electronic edge guide system
Errors correction
Extended splicing and correcting tabele
Automatic Web clamping
Full Servo drive with “Fast reaktive servo technology”
Automatic control of speed an position
Traction drum with high-grip caoting and pneumatic nip rollers
Advance setting of the acceleration and decelarion ramps
Rewinding
Full servo drive rewinding
High and low tension settings

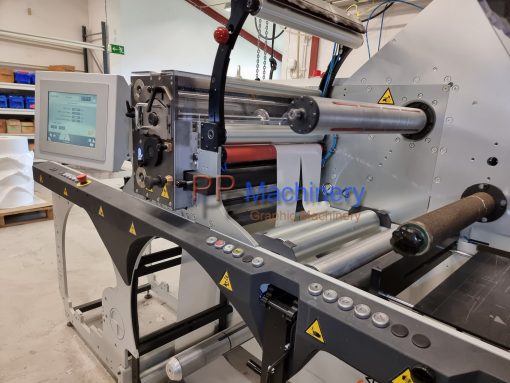

Advance Graphic HMI
User friendly PLC with graphic touch HMI and Multilinguage working program
Counters
Counter function with settable for Counting labels or length (cm)

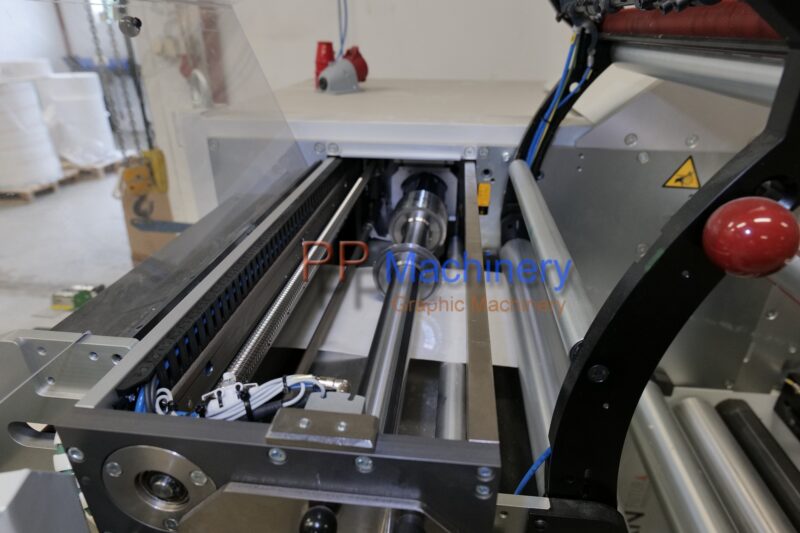

Rotary Die-Cutters
Highly productive servo die-cutting unit for front side.
Matrix Unit
Rewinding Unit

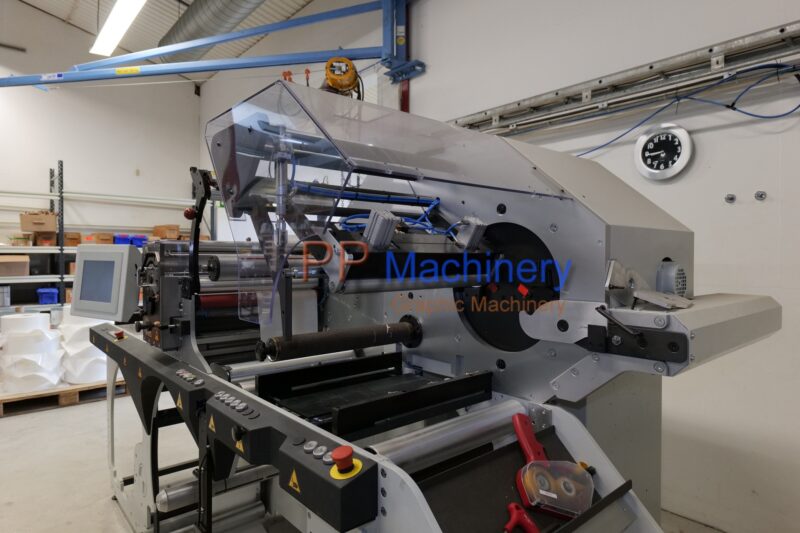

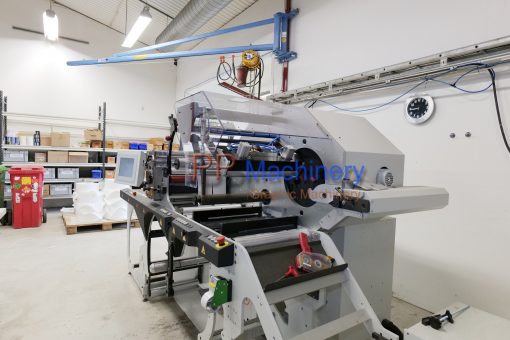

Semi Automatic Turret Rewinding
Description
PRATI SATURN TE 370 Die cutter and Slitter Rewinder - Semi Automatic Turret Rewinder from 2019
PRATI SATURN TE 370 Die cutter and Slitter Rewinder – Semi Automatic Turret Rewinder from 2019
Unwinding
Unwinding on pneumatic fixed shaft diameter 76mm with servo motor
BST Electronic edge guide system
Errors correction
Extended splicing and correcting tabele
Automatic Web clamping
Full Servo drive with “Fast reaktive servo technology”
Automatic control of speed an position
Traction drum with high-grip caoting and pneumatic nip rollers
Advance setting of the acceleration and decelarion ramps
Rewinding
Full servo drive rewinding
High and low tension settings
Advance Graphic HMI
User friendly PLC with graphic touch HMI and Multilinguage working program
Counters
Counter function with settable for Counting labels or length (cm)

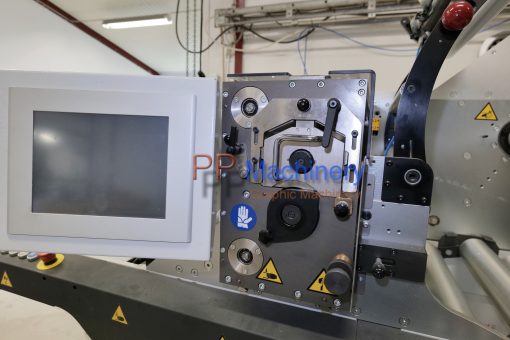

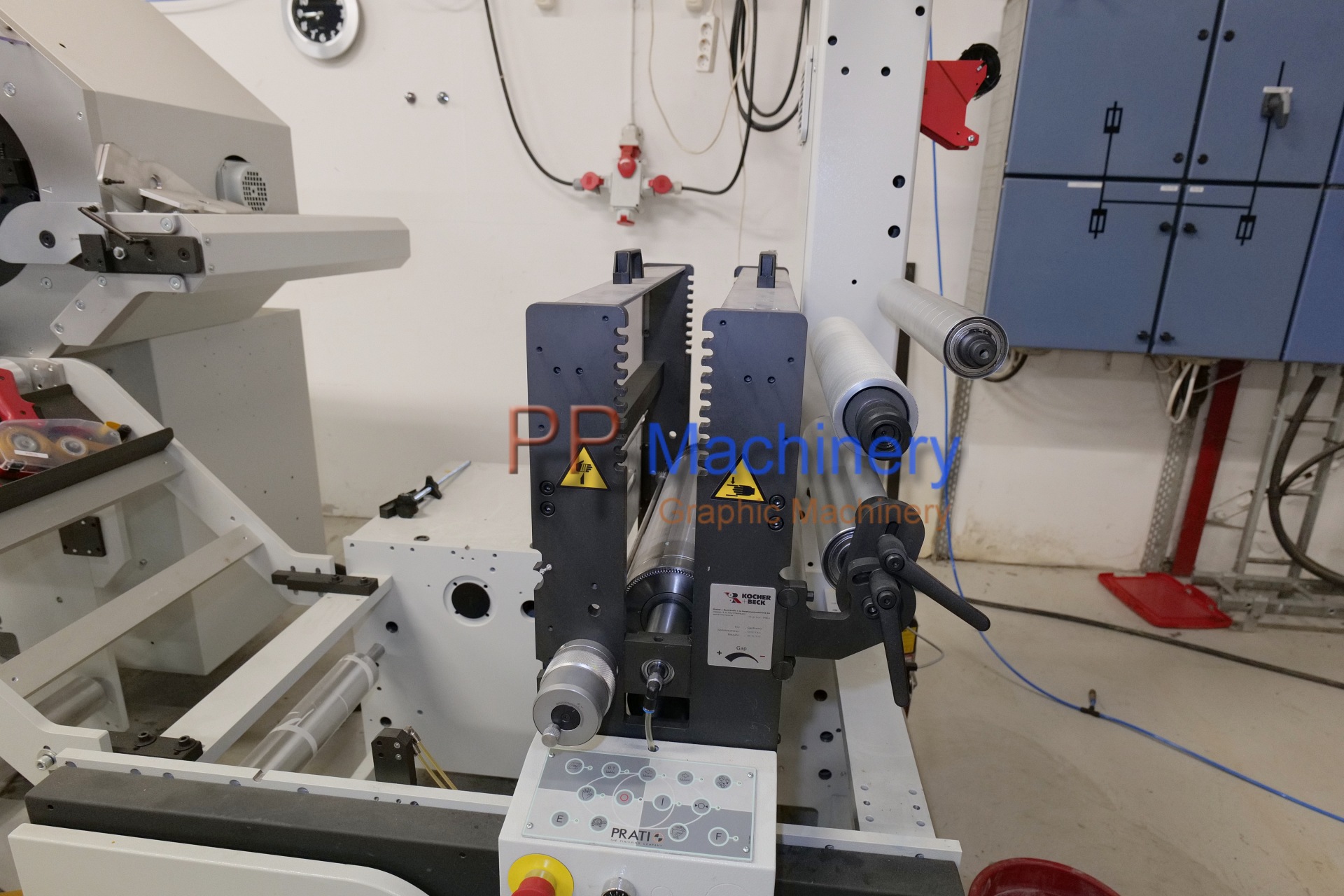

Rotary Die-Cutters
Highly productive servo die-cutting unit for front side.
Matrix Unit
Rewinding Unit
Semi Automatic Turret Rewinding
| Mechanical web width: | 390 mm – 15,3″ |
| Max. suggested working web width: | 370 mm – 14,5″ |
| Minimum paper width: | 80 mm – 3″ |
| Maximum Speed: | 300 m/min – 984 ft/min |
| Max. machine speed with die cutting: | 250 m/min 820ft/min |
| Max. unwind diameter: | 850 mm – 33,5″ |
| Max. Rewind diameter: | 600 mm – 23″ |
| Location: | Western Europe |
Machine is available immediately.
Please contact us for an inspection or information
