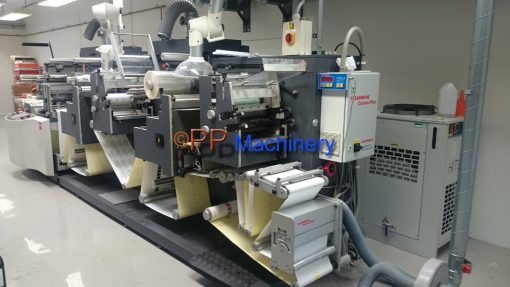

GM DC330 Grafisk Maskinfabrik AS Label Converter – completely refurbished

Product Enquiry
SKU: 4906 Category:


GM DC-330 Grafisk Maskinfabrik AS
Finishing converting line aimed for finishing of digital printed matters

Single unit in-line or o -line converting for digital workflows

Manufacturer: Grafisk Maskinfabrik AS
Type: GM DC-330
Age: 2005


Web Width: 200 mm- 330 mm
Substrate Thickness: 20 μm – 200 μm
Speed in digital mode: 50 m/min
Speed in analog mode: 75 m/min
Reel diameter on internal unwind max. 700 mm
Single or dual shaft rewind max.: 500 mm


  • 2 Flexo printing units with uv dryers
  • 2x Laminator or Coldfoil
  • UV and hot air after each printing unit
  • Unwinder
  • Rewinder
  • Die Cutter Full Rotary or Semi Rotary
  •  Vetaphone Corona Plus
  •  Full Servo Driven
  • Semi turret rewinder
  • Length slitting units

Total Rebuilt in 2012

Including complete added servo driven system all through the machine
Extended lamination possibility on both flexo units
As well possible to use for coldfoiling and complementary to the both print units UV dryers
quipped with hot air dryers
Die cut unit, either for use semi rotary (using a “fixed” magnetic cylinder) or full rotary.
Machine is equipped with corona unit , incl. an extra “shorter” corona head cassette
When necessary not to corona ?treat full web width (e.g.production of shrink sleeve material).
Machine has a mini buffer at inlet as well as a larger buffer for running with the semi turrent unit.
Total refurbished and rebuilt 2012

Machine is in running condition – can be tested.

Available immediately
