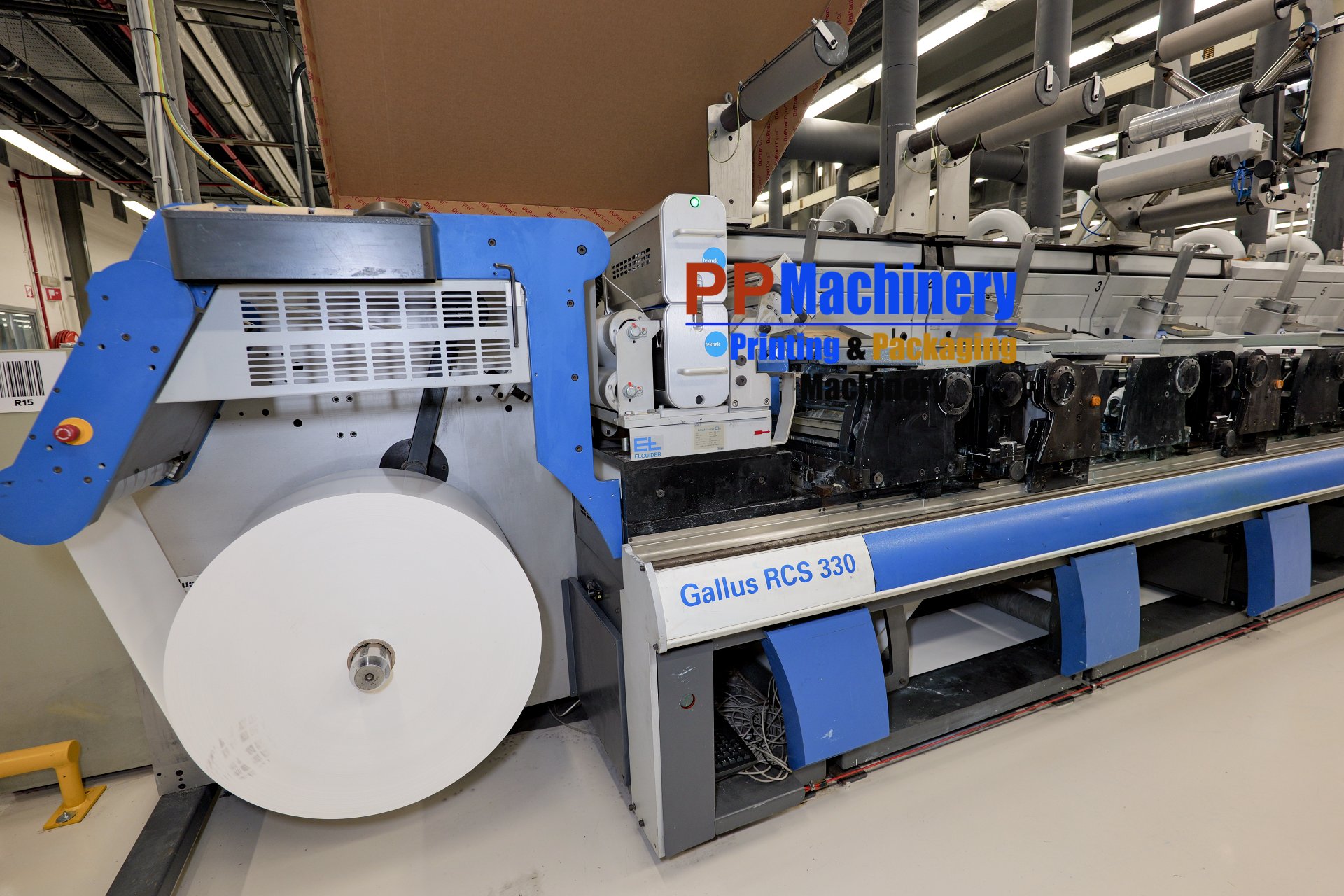

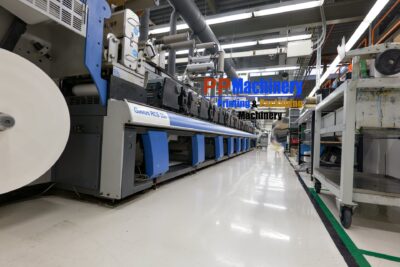

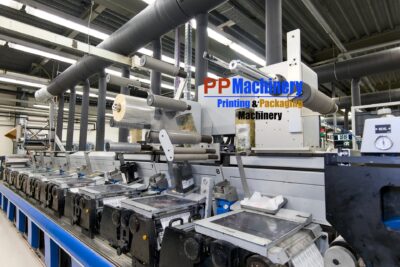

GALLUS RCS 330 8 COLOURS FLEXO LABEL PRESS WELL EQUIPPED from #ppmachinery
Very nice Gallus RCS 330 8 colours flexo label and well equipped press.
The Gallus RCS 330 is widely regarded as a benchmark in the label printing industry, as it was one of the first platforms to utilize full servo-drive technology.
The 2004 model combines high automation with extreme modularity.
Here are the detailed technical specifications for a 8-color configuration
General Machine Data

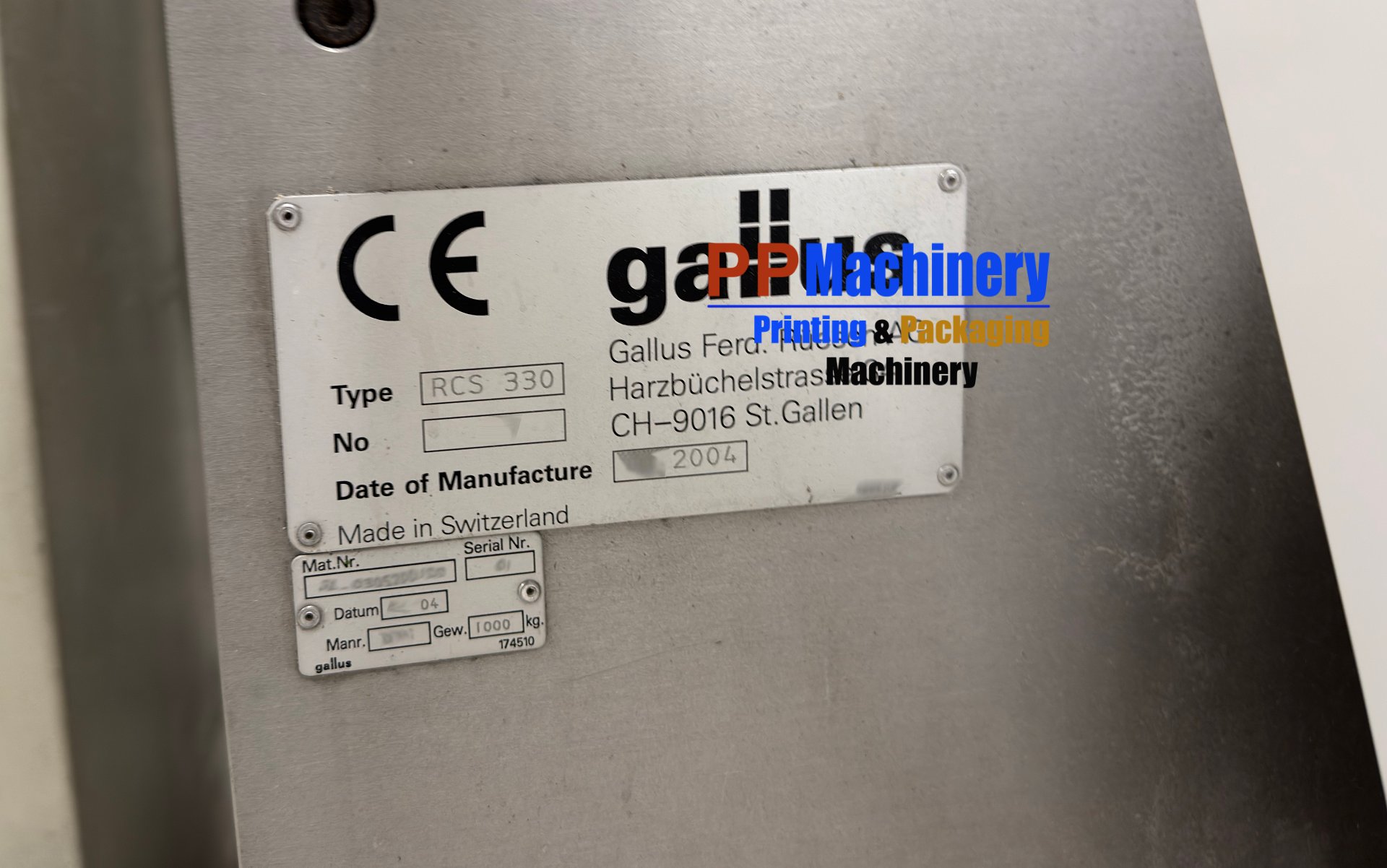

- Manufacturer: Gallus (Heidelberg Group)
- Model: RCS 330

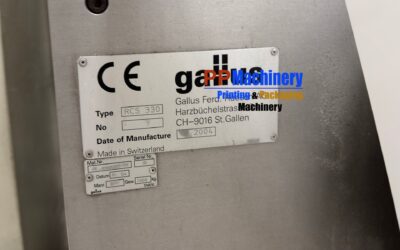

- Year of Manufacture: 2004
- Printing Process: Flexographic (Plug-and-Play design allows for Screen Printing or Hot Foil Stamping in the same stations)
- Number of Print Units: 8
- Drive Technology: Full Servo (Independent drives for all relevant cylinders and rollers)
Technical Performance
- Max. Web Width: 335 mm
- Max. Printing Width: 330 mm
- Max. Mechanical Speed: Up to 160 m/min (depending on substrate and ink coverage)
- Format Range (Repeat): 12″ – 24″ (304.8 mm – 609.6 mm)
Substrate Range: Self-adhesive materials (paper/film), monofils (BOPP, PET), and light cartonboard
Please contact PP Machinery for more information or an test print
Description
Very nice Gallus RCS 330 8 colours flexo label and well equipped press.
The Gallus RCS 330 is widely regarded as a benchmark in the label printing industry, as it was one of the first platforms to utilize full servo-drive technology.
The 2004 model combines high automation with extreme modularity.
- Here are the detailed technical specifications for a 8-color configurationEquipped:

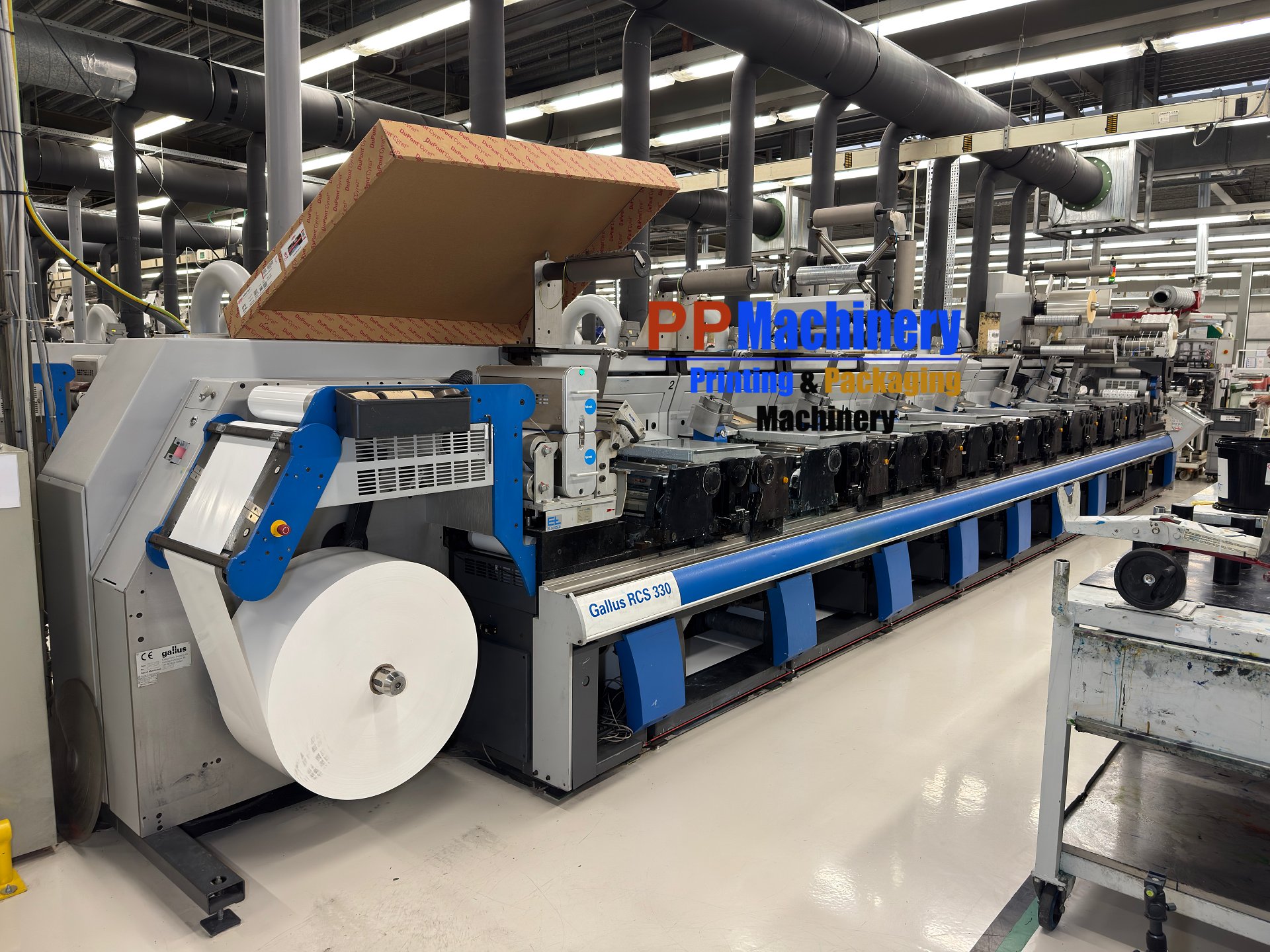

- Unwinder
- Corona treatment
- Web Cleaning
- Full Servo driven
- Delam Relam
- Turning bar
- Cold foil
- Screen printing
- Rotary die cutter with GapMaster
- Full UV Curing
- Slitting unit
- Rewinder
- Waste Rewinder
- Full Chilled rollers (Chiller is not coming with the machine, because of central chilling)
General Machine Data
- Manufacturer: Gallus (Heidelberg Group)
- Model: RCS 330
- Year of Manufacture: 2004
- Printing Process: Flexographic (Plug-and-Play design allows for Screen Printing or Hot Foil Stamping in the same stations)
- Number of Print Units: 8
- Drive Technology: Full Servo (Independent drives for all relevant cylinders and rollers)
Technical Performance
- Max. Web Width: 335 mm
- Max. Printing Width: 330 mm
- Max. Mechanical Speed: Up to 160 m/min (depending on substrate and ink coverage)
- Format Range (Repeat): 12″ – 24″ (304.8 mm – 609.6 mm)
Substrate Range: Self-adhesive materials (paper/film), monofils (BOPP, PET), and light cartonboard
Please contact PP Machinery for more information or an test print
