Durst Tau 330 Digital label press
Durst Tau 330
Digital Label Press roll to roll from 2013
Max. print width: 330 mm
Max. possible colours: 7
Installed printing heads: 5
Availability: immediately
Standard UV inks: W+CMYK, can be upgraded for OV, just heads needed
Description

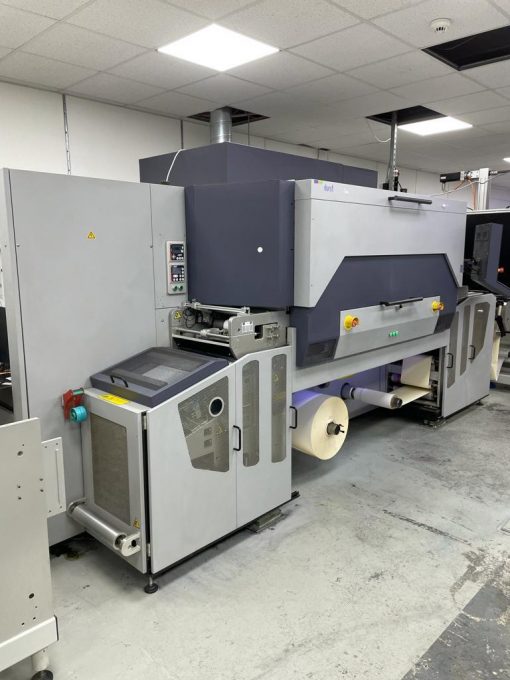

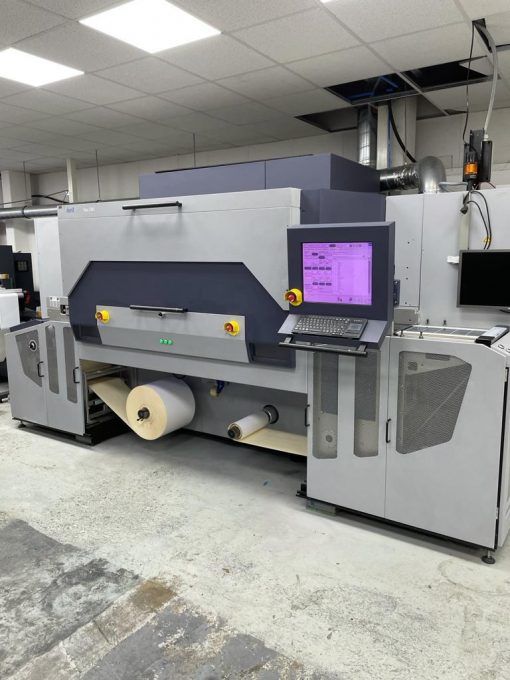

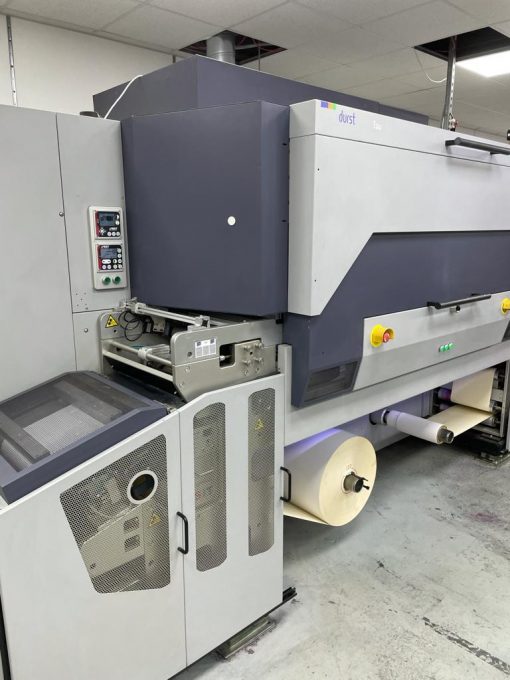

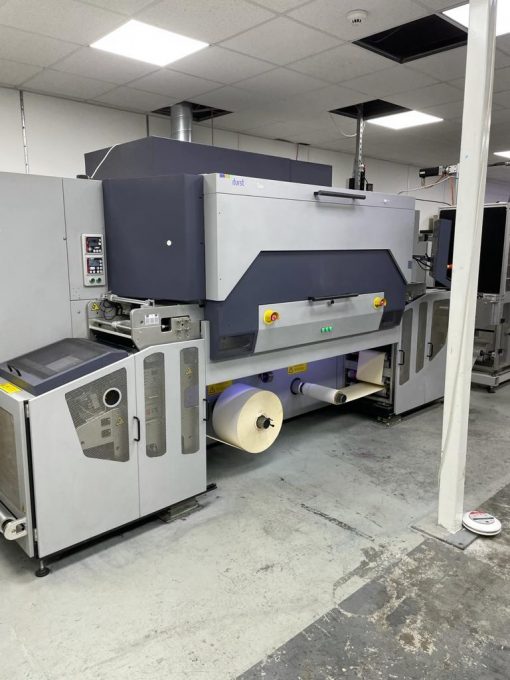

Durst Tau 330 Digital Label press
| DURST TAU 330 DIGITAL LABEL PRINTING PRESS | Year of manufacturing: 2013 |
| Print technology | Single-Pass UV Inkjet Technology with variable droplet sizes and gray scale technology, XAAR 1001/1002 GS6 print heads, BiXaaar technology |
| Head resolution | 360 x 360 dpi |
| Print resolution | Standard: 720 x 360 dpi (DOD); High Definition: 720 x 1260 dpi (binary) |
| Print speed | Standard: up to 48 m/min; High Definition: up to 40 m/min |
| max. print width | 330mm |
| Inks/colours | Standard UV inks: W+CMYK, can be upgraded for OV, just heads needed |
| Substrate specifications | width: 165–350 mm; thickness: 100–500 Mikron |
| Substrate types | Coated and uncoated paper, white and transparent Film PP, PE, PVC, PET, BOPP |
| Web handling digital inline | Reel diameter: max. 680 mm – max. 120 kg for digital Infeed und Outfeed |
| Corona treatment | Frontside SIT Arcotec FER FA1 |
| Web cleaner | Frontside Kelva contact cleaner |
| Antistatic | 3 x Eltex R50 |
| Spectral photometer | Barberie Spectro Swing |
| UV | Hönle double lamp system, gallium mercury combined |
| print engine | Esko DFE based on Esko10 including Colorengine 10. |
| Web guide | BST CLS600pro |
