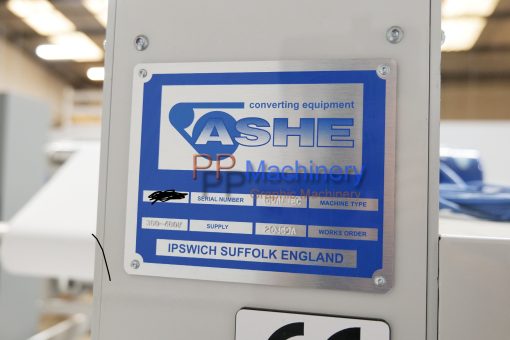

ASHE OPAL LABEL INSPECTION SLITTER REWINDER FROM 2020

Unwind diameter of 700mm (28”)
Unwind shafts diameter: 76mm (3”)
Splicing Area
End of Roll Detection

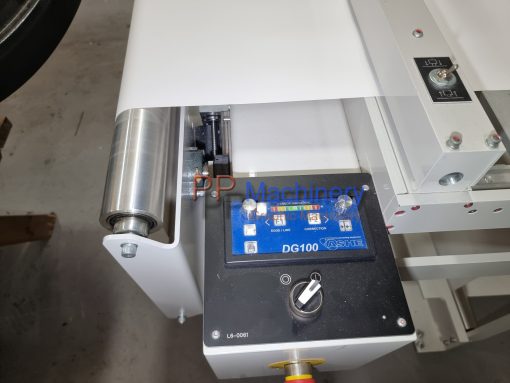

Web Guide

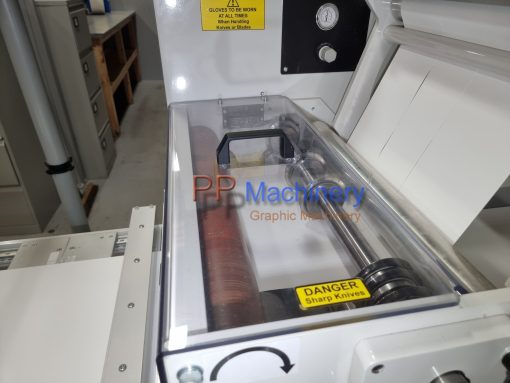

Slitting Section
The machine has a maximum speed of 230 M/M

Full technical specifications:

Web width: 330mm/410mm
Max unwind diameter (std): 700mm
Max rewind diameter: 480mm
Min slit width: 15mm
Unwind core I/D: 76mm
Rewind core I/D: 76mm (other sizes available)
Speed (machine): 230mpm
Guider system: Steering frame
